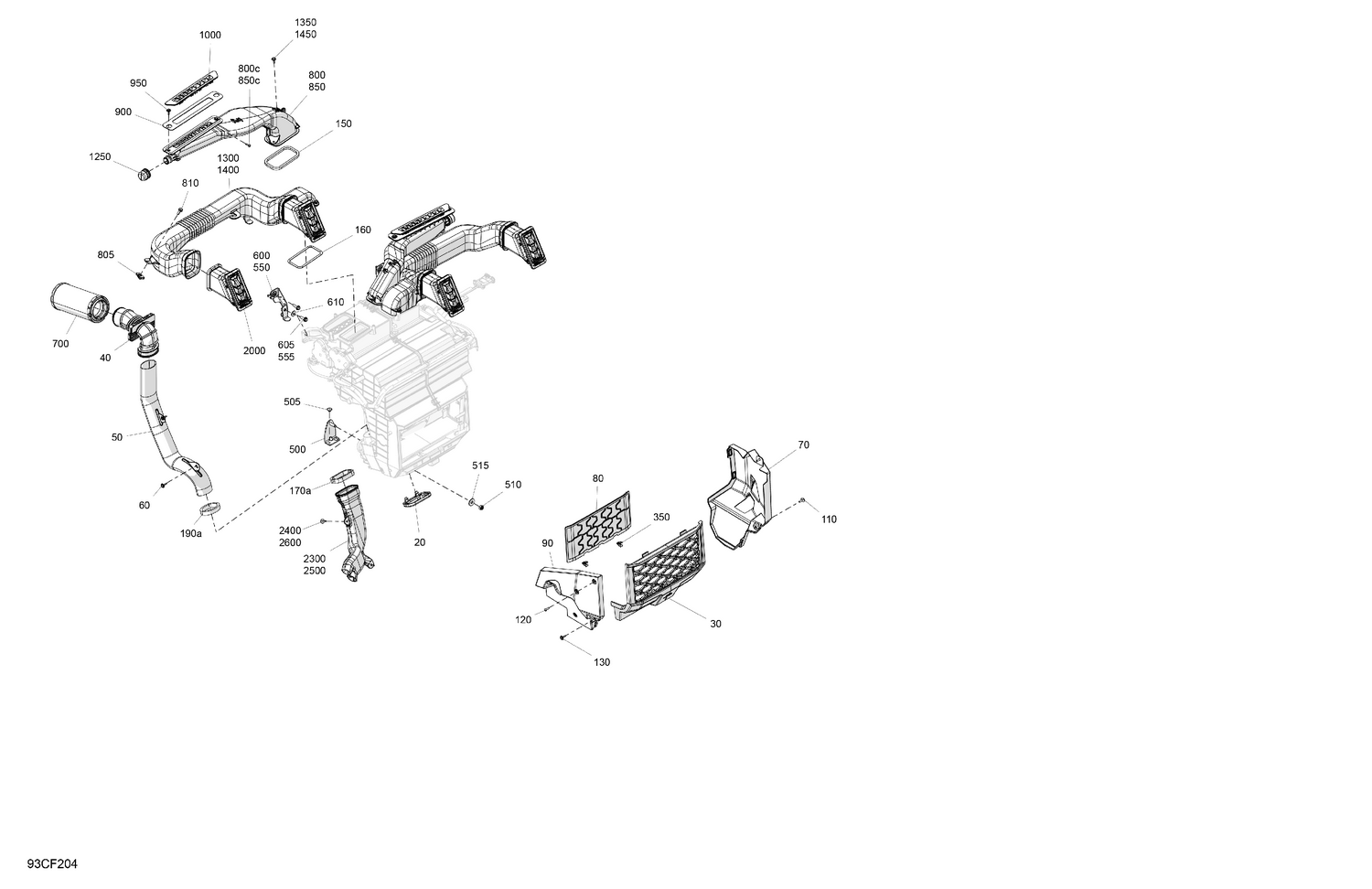

09- Miscellaneous - Options
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 705801418 | Molded Collector Cap |
| 30 | 705801049 | Ventilation Grille |
| 40 | 705801171 | Ventilation Duct Intake |
| 50 | 705801134 | Ventilation Duct |
| 60 | 250000725 | Screw M4 X 16 |
| 70 | 705801488 | Rear Molded Ext Trim |
| 80 | 705801050 | Air Filter |
| 90 | 705801503 | LH Lower Panel |
| 110 | 250000725 | Screw M4 X 16 |
| 120 | 250000759 | Torx Truss Pt K40 X 16 |
| 130 | 250000725 | Screw M4 X 16 |
| 150 | 705801663 | Gasket |
| 160 | 705801664 | Gasket |
| 170a | 219704708 | Gasket 3000 mm Long |
| 190a | 219704708 | Gasket 3000 mm Long |
| 350 | 517306478 | Clip |
| 500 | 705801245 | Lower Console Support |
| 505 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 510 | 232581414 | Hex. Elastic Stop Nut M8 |
| 515 | 234082410 | Flat Washer 8 mm |
| 550 | 705801810 | RH Upper Console Support |
| 555 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 600 | 705801811 | LH Upper Console Support |
| 605 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 610 | 234062670 | Stainless Steel Flat Washer |
| 700 | 705800395 | Air Filter |
| 800c | 250000759 | Torx Truss Pt K40 X 16 |
| 805 | 250100208 | Panel Nut M6 X 1.0 |
| 810 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 850c | 250000759 | Torx Truss Pt K40 X 16 |
| 900 | 705801508 | Gasket Cut |
| 950 | 250000725 | Screw M4 X 16 |
| 1000 | 705801069 | Ventilation Grille |
| 1250 | 705801688 | Molded Plug |
| 1300 | 705801056 | LH Front Formed Ventilation Duct |
| 1350 | 250000725 | Screw M4 X 16 |
| 1400 | 705801055 | RH Front Formed Ventilation Duct |
| 1450 | 250000725 | Screw M4 X 16 |
| 2000 | 705801803 | NEEDS DESCRIPTION |
| 2300 | 705801058 | LH Under Formed Ventilation Duct |
| 2400 | 250000725 | Screw M4 X 16 |
| 2500 | 705801057 | RH Under Formed Ventilation Duct |
