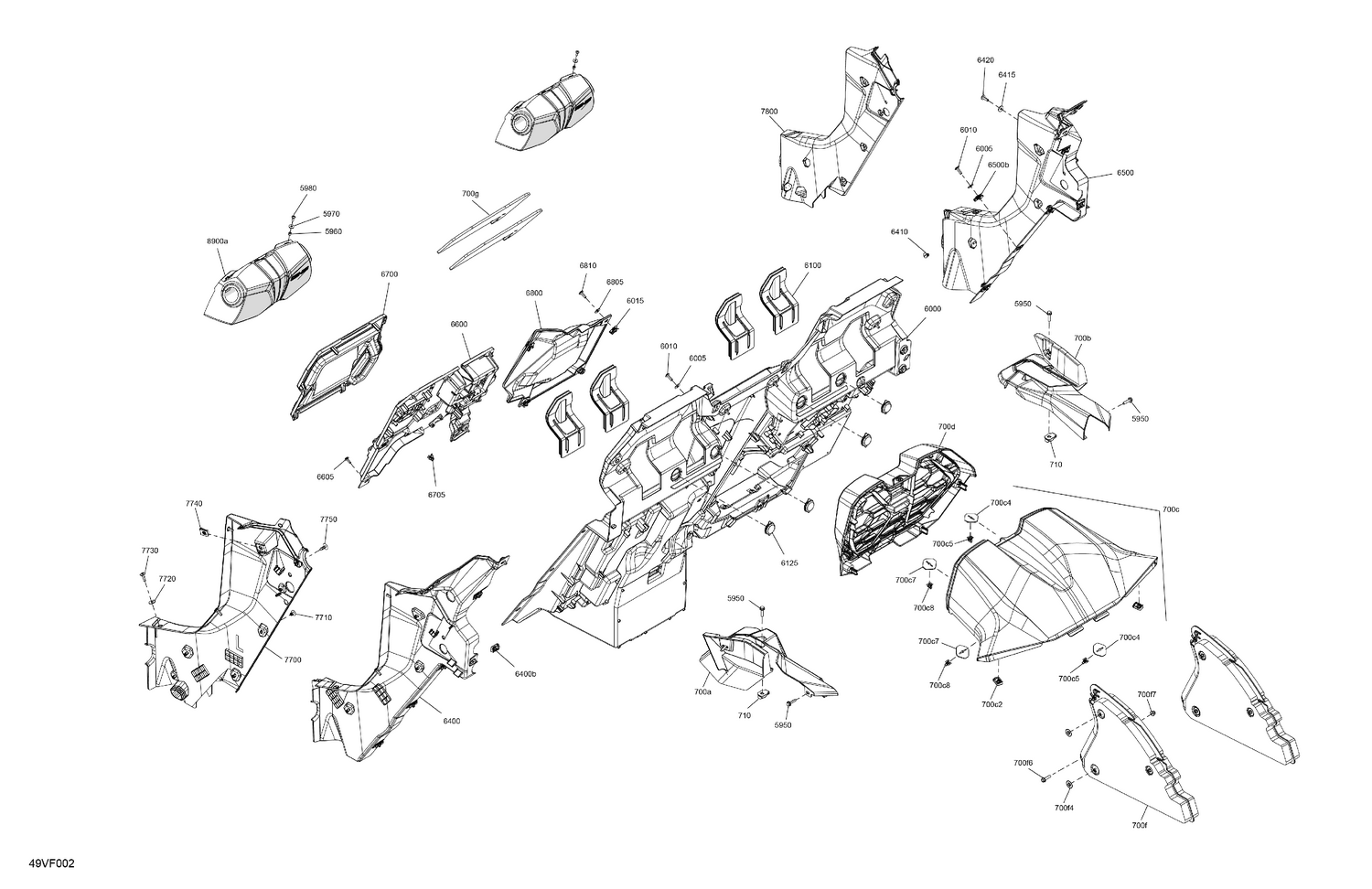

07- Cab Interior - Back Wall
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 700a | 708304050 | LH Rear Cage Panel |
| 700b | 708304051 | RH Rear Cage Panel |
| 700c2 | 250100208 | Panel Nut M6 X 1.0 |
| 700c4 | 705003841 | Support Plate |
| 700c5 | 517302785 | Edge Clip |
| 700c7 | 705003841 | Support Plate |
| 700c8 | 517302785 | Edge Clip |
| 700d | 708304061 | Central Air Inlet Grille |
| 700f4 | 508000853 | Push Nut |
| 700f6 | 207662554 | Hex. Flange Screw M6 X 25 |
| 700f7 | 233261494 | Hex. Flange Elastic Nut M6 |
| 700g | 706006095 | Rear Deflector |
| 710 | 250100224 | Panel Nut M6 X 1.0 |
| 5950 | 250000841 | Hex Flange Screw M6 X 25 |
| 5960 | 293900112 | Bushing |
| 5970 | 250200025 | Washer M5 |
| 5980 | 250000720 | Torx Screw K50 X 16 |
| 6000 | 707900910 | Rear Baffle |
| 6005 | 234062670 | Stainless Steel Flat Washer |
| 6010 | 250000722 | Torx Screw M6 X 20 |
| 6015 | 250100208 | Panel Nut M6 X 1.0 |
| 6100 | 707901015 | Cap |
| 6125 | 293000125 | Plug |
| 6400b | 250100208 | Panel Nut M6 X 1.0 |
| 6410 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 6415 | 234062670 | Stainless Steel Flat Washer |
| 6420 | 250000722 | Torx Screw M6 X 20 |
| 6500b | 250100208 | Panel Nut M6 X 1.0 |
| 6600 | 707900944 | Rear Fuse Box Cover |
| 6605 | 250000959 | Screw PT Type K-50 X 16 |
| 6700 | 707901053 | Battery Cover |
| 6705 | 517306478 | Clip |
| 6800 | 707900990 | RH Rear Access Cover |
| 6805 | 234062670 | Stainless Steel Flat Washer |
| 6810 | 250000722 | Torx Screw M6 X 20 |
| 7700 | 707901035 | LH Central Cab Panel |
| 7710 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 7720 | 234062670 | Stainless Steel Flat Washer |
| 7730 | 250000722 | Torx Screw M6 X 20 |
| 7740 | 250100208 | Panel Nut M6 X 1.0 |
| 7750 | 293730011 | Black, Dart |
| 7800 | 707901036 | RH Central Cab Panel |
| 8900a | 707900653 | Foam |
