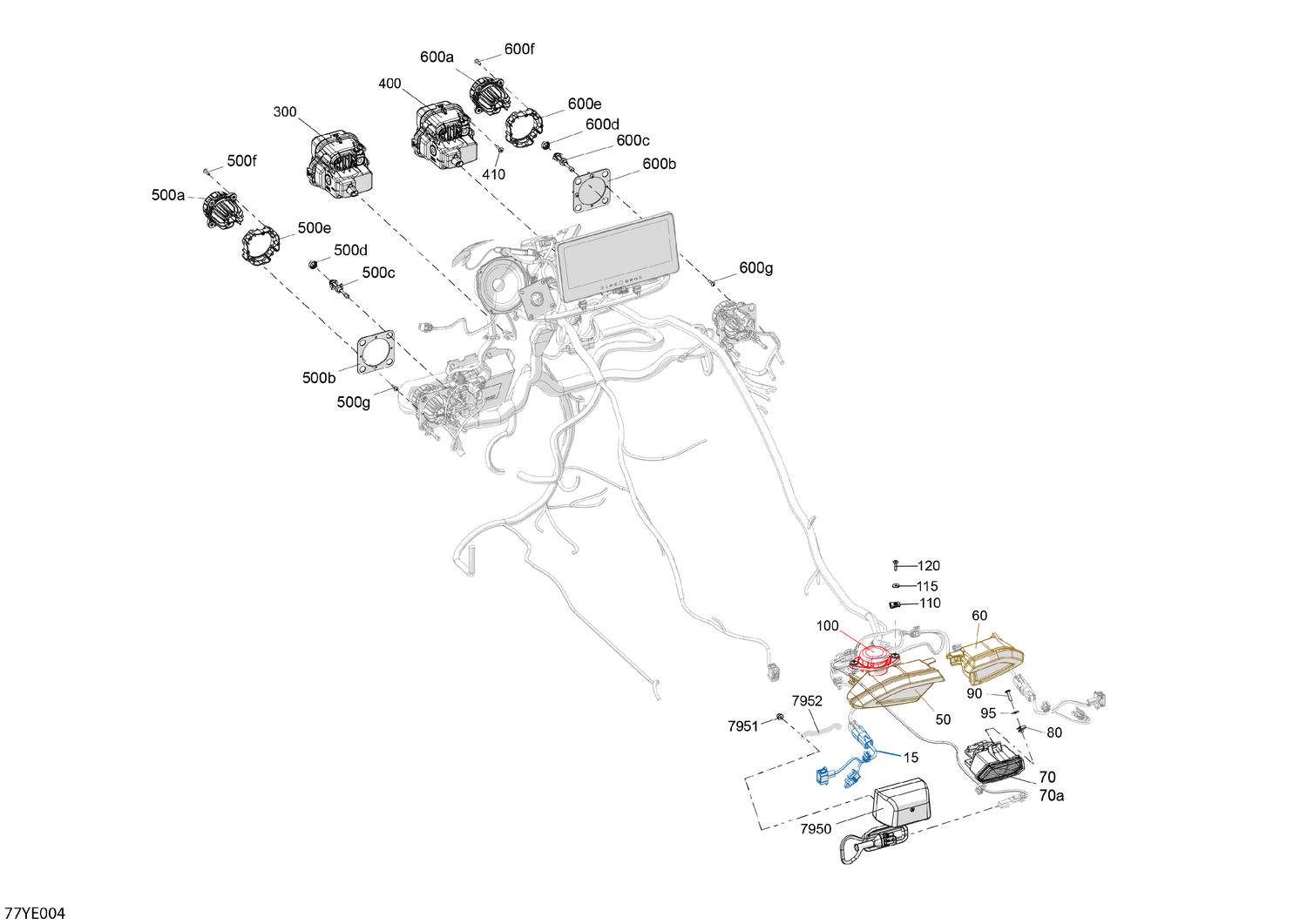

08- Electric - Vehicle Lighting
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 710006439 | Tail-Stop-Flasher Lights Adapter |
| 50 | 710004396 | Tail Light LH |
| 60 | 710004397 | Tail Light RH |
| 70a | 219800322 | Bulb 12V 10W |
| 80 | 250000958 | Panel Nut M5 X 0.8 |
| 90 | 250000715 | Torx Truss Screw M5 X 20 |
| 95 | 234052670 | Stainless Steel Flat Washer M5 |
| 100 | 710008103 | Passenger Detection Switch |
| 110 | 250100208 | Panel Nut M6 X 1.0 |
| 115 | 234062670 | Stainless Steel Flat Washer |
| 120 | 250000807 | Torx Truss Screw M6 X 25 |
| 300 | 710008694 | Front Headlight |
| 400 | 710008694 | Front Headlight |
| 410 | 250000720 | Torx Screw K50 X 16 |
| 500a | 710006007 | Low Beam Ass'y |
| 500b | 710007188 | SUPPORT_HEADLIGHT - Call your local BRP dealership |
| 500c | 710007200 | Adjustment Screw |
| 500d | 293730095 | Clip |
| 500e | 710007189 | Adapter |
| 500f | 250000759 | Torx Truss Pt K40 X 16 |
| 500g | 250000759 | Torx Truss Pt K40 X 16 |
| 600a | 710006007 | Low Beam Ass'y |
| 600b | 710007188 | SUPPORT_HEADLIGHT - Call your local BRP dealership |
| 600c | 710007200 | Adjustment Screw |
| 600d | 293730095 | Clip |
| 600e | 710007189 | Adapter |
| 600f | 250000759 | Torx Truss Pt K40 X 16 |
| 600g | 250000759 | Torx Truss Pt K40 X 16 |
| 7950 | 710003349 | License Plate Light |
| 7951 | 233251494 | Elastic Flange Nut M5 |
