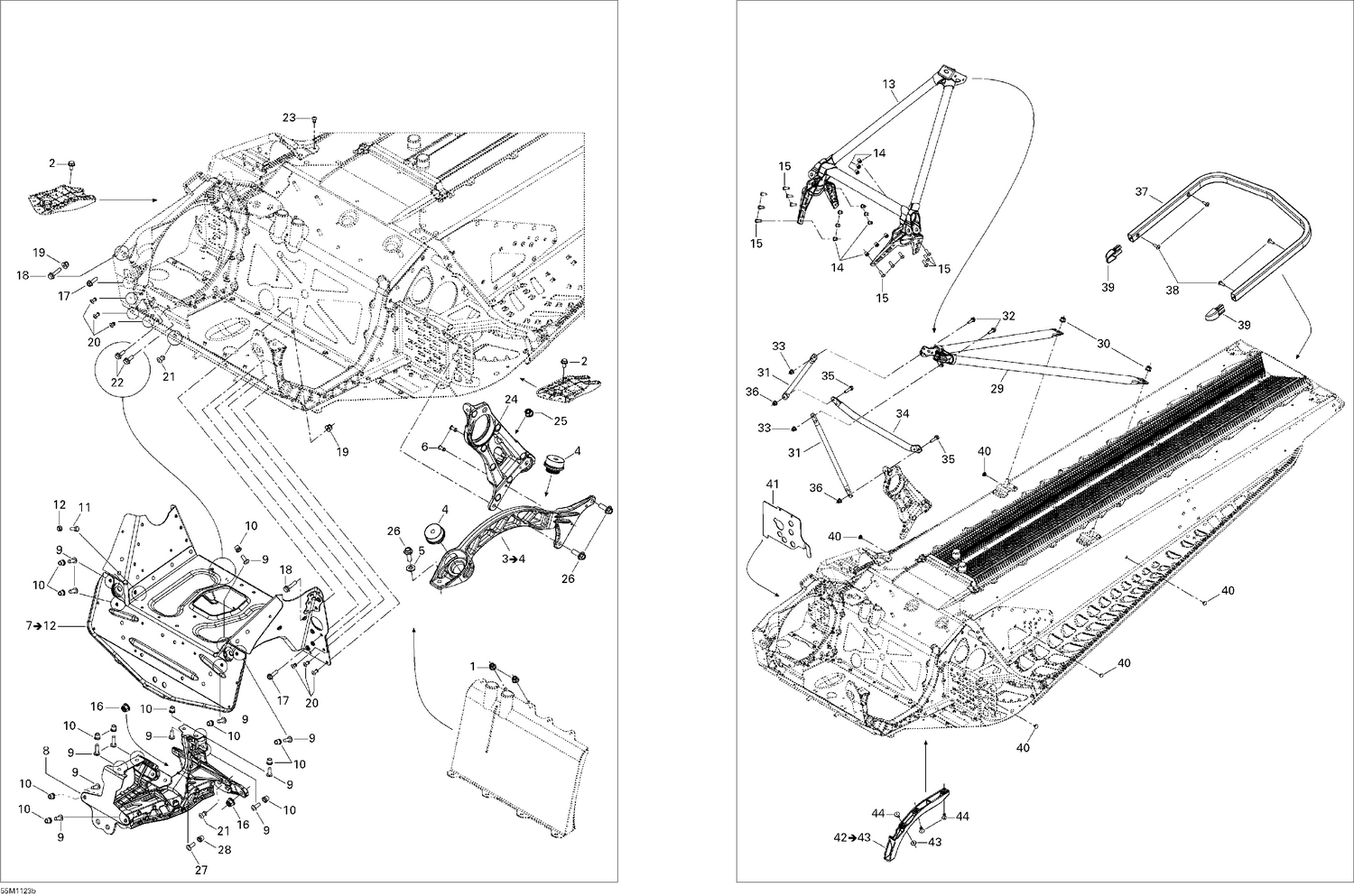

09- Frame and Components SE

09- Frame and Components SE

Parts (40)

RefPart NumberDescription
1 233261414 Hex. Flange Elastic Nut M6 x 1.0
2 207561244 Hex. Flange Screw M6 X 12, Scotch Grip
4 512061516 Vibration Damper This part replaces 512060295.
5 234281474 Conical Spring Washer M8
6 390407200 Pop Rivet 3/16”
8 518327487 Front Suspension Support This part replaces 518325925.
9 207662044 Hex. Flange Screw M6 X 20
10 233261414 Hex. Flange Elastic Nut M6 x 1.0
11 207161444 Hex. Screw M6 X 14
12 232561600 Hex. Elastic Stop Nut M6
13 518326970 Front Member This part replaces 518326555.
14 233261414 Hex. Flange Elastic Nut M6 x 1.0
15 207662044 Hex. Flange Screw M6 X 20
16 233281414 Hex. Flange Elastic Nut M8
17 210261650 Hex. Flange Screw M6 X 16 This part replaces 210261680.
18 207662544 Hex. Flange Screw M6 X 25
19 233261414 Hex. Flange Elastic Nut M6 x 1.0
20 293150191 Monobolt Rivet, 4.8 mm
21 293150182 Monobolt Rivet 6.4
22 207661644 Hex. Flange Screw M6 X 16
23 390909100 Avex Rivet
24 518327460 Driven Pulley Support This part replaces 518326192.
25 233281414 Hex. Flange Elastic Nut M8
26 250000351 Hex. Flange Screw M8 X 25, Nylon
27 207662044 Hex. Flange Screw M6 X 20
28 233261414 Hex. Flange Elastic Nut M6 x 1.0
29 518326559 Rear Member
30 233281414 Hex. Flange Elastic Nut M8
31 518325114 Upper Lateral Column Support
32 207662044 Hex. Flange Screw M6 X 20
33 233261416 Elastic Flange Nut M6 X 1.0
34 518326657 Center Column Support
35 207662544 Hex. Flange Screw M6 X 25
36 233261414 Hex. Flange Elastic Nut M6 x 1.0
37 518325481 Black Rear Bumper 137"
38 250000779 Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402.
39 520000840 BLACK CAP - Call your local BRP dealership
40 293730047 Black, Dart 8 mm
41 518325418 HEAT SHIELD - Call your local BRP dealership
43 517124300 Washer
