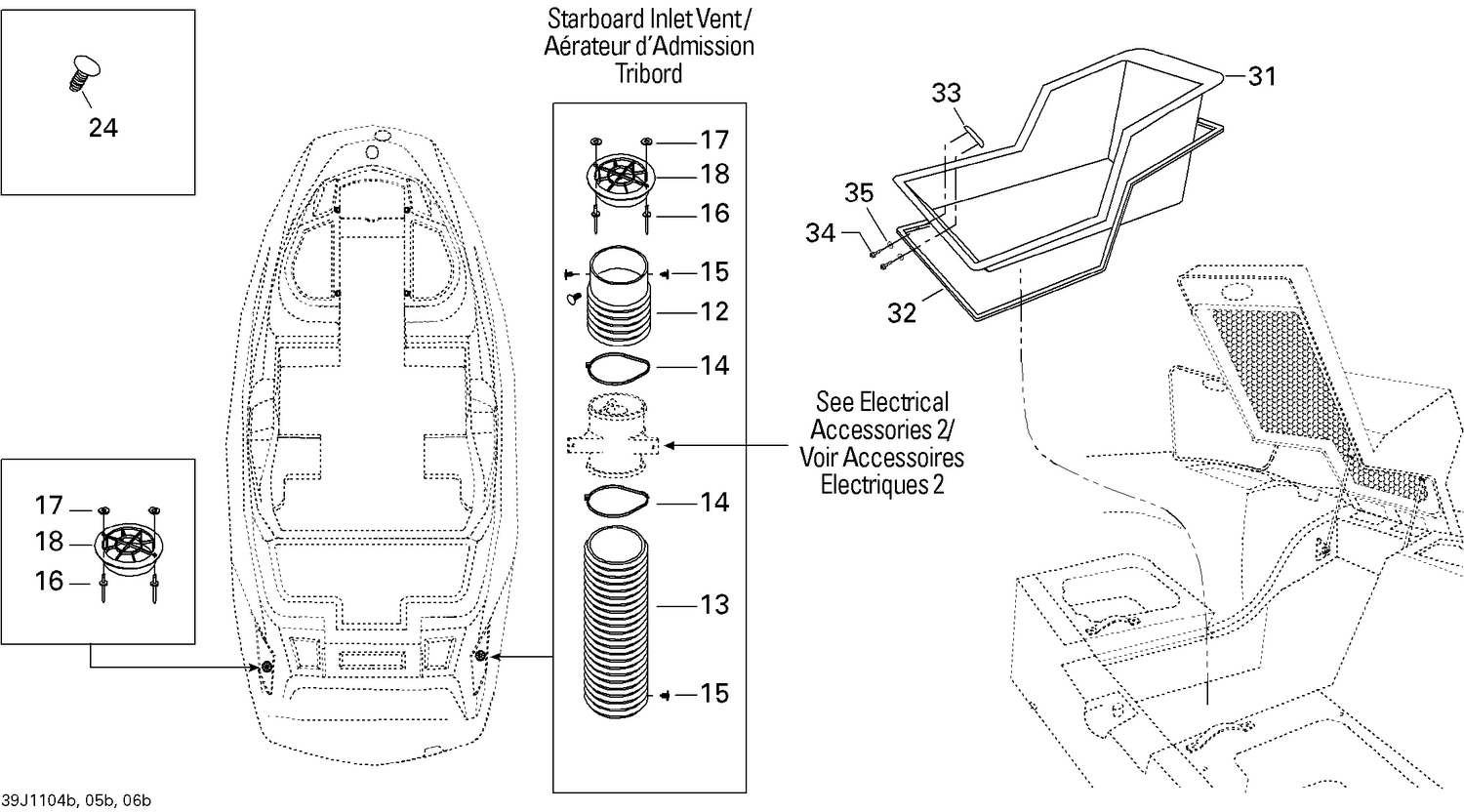

09- Hull 2
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 219704358 | Was 204050122 Vent Hose 4" |
| 13 | 219704358 | Was 204050122 Vent Hose 4" |
| 14 | 293750047 | Tie Rap, 533 mm |
| 15 | 293730006 | Black, Dart |
| 16 | 293150088 | Pop Rivet 3/16" |
| 17 | 211200039 | FLAT WASHER 3/16? - Call your local BRP dealership |
| 18 | 204050637 | VENT GRILL 4 - Call your local BRP dealership |
| 24 | 293730006 | Black, Dart |
| 31 | 262000095 | ACCESS COVER - Call your local BRP dealership |
| 32 | 219704368 | Seal Tray 1000Mm Long |
| 33 | 291000608 | HANDLE, WHITE - Call your local BRP dealership |
| 34 | 241141660 | Hex. Flange Screw K40 X 16 |
