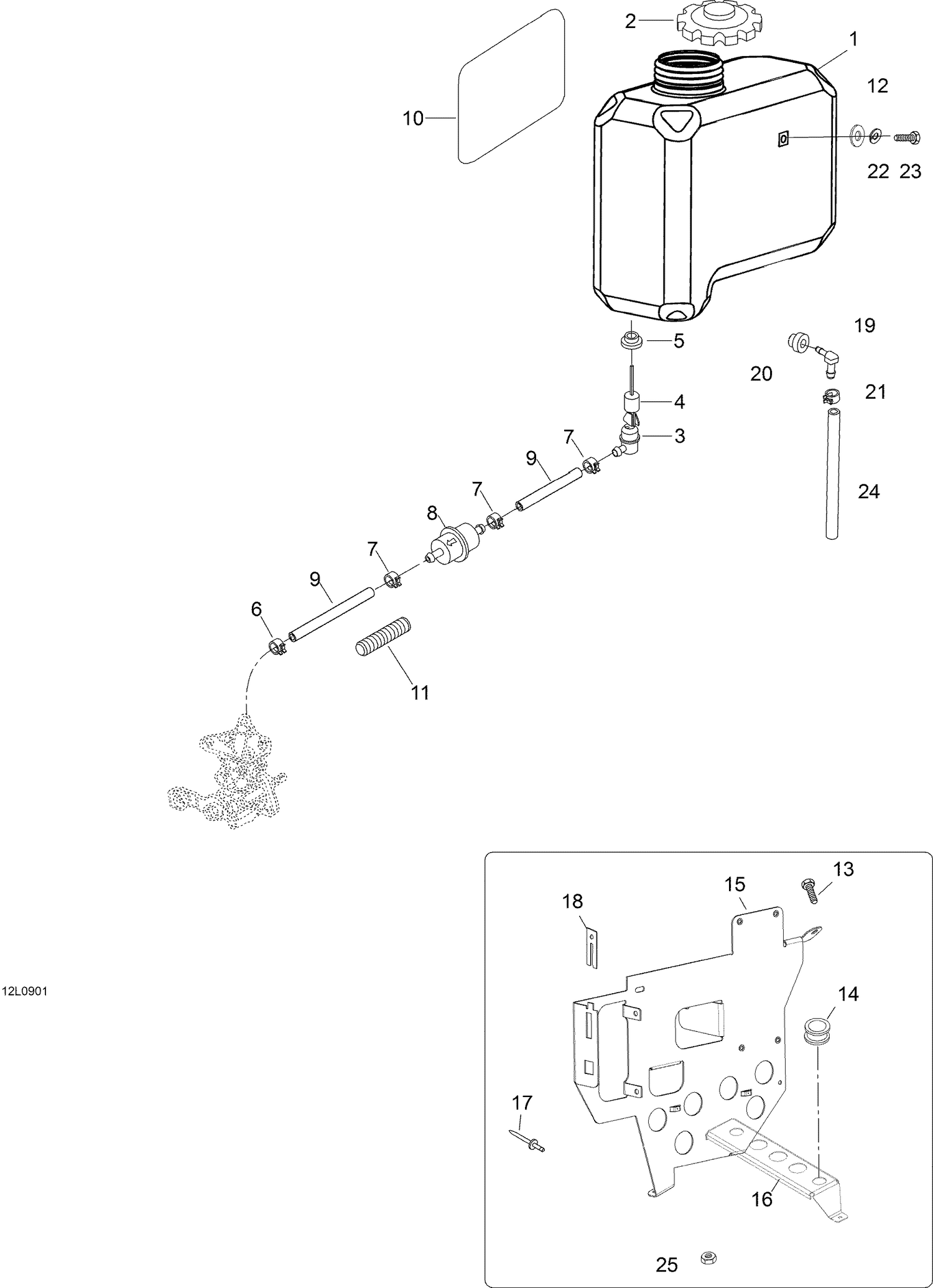

02- Oil System _12L0901
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605155569 | OIL TANK - Call your local BRP dealership |
| 2 | 519000044 | CAP - Call your local BRP dealership |
| 3 | 605452095 | OIL SENSOR - Call your local BRP dealership |
| 4 | 414681900 | Float |
| 5 | 570023000 | Insulating Ring |
| 6 | 414420700 | Spring Clamp |
| 7 | 414415200 | Spring Clamp |
| 8 | 414536500 | Filter |
| 9 | 39046 | Hose |
| 10 | 5443578 | AL-cover - Call your local BRP dealership |
| 11 | 28015 | Tubing |
| 12 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 13 | 40327 | Screw M6 x 12 |
| 14 | 5446766 | Grommet |
| 15 | 605255412 | RESERVOIR SUPPORT - Call your local BRP dealership |
| 16 | 605355414 | AIR INTAKE SILENCER SUPPORT - Call your local BRP dealership |
| 17 | 36108 | Rivet |
| 18 | 5447032 | Forkplate |
| 19 | 414580700 | Male Connector |
| 20 | 709200285 | Grommet This part replaces 570135100. |
| 21 | 414554800 | Spring Clamp |
| 22 | 20052 | Spring Washer |
| 23 | 40114 | Screw |
| 24 | 39038 | Overflow hose |
