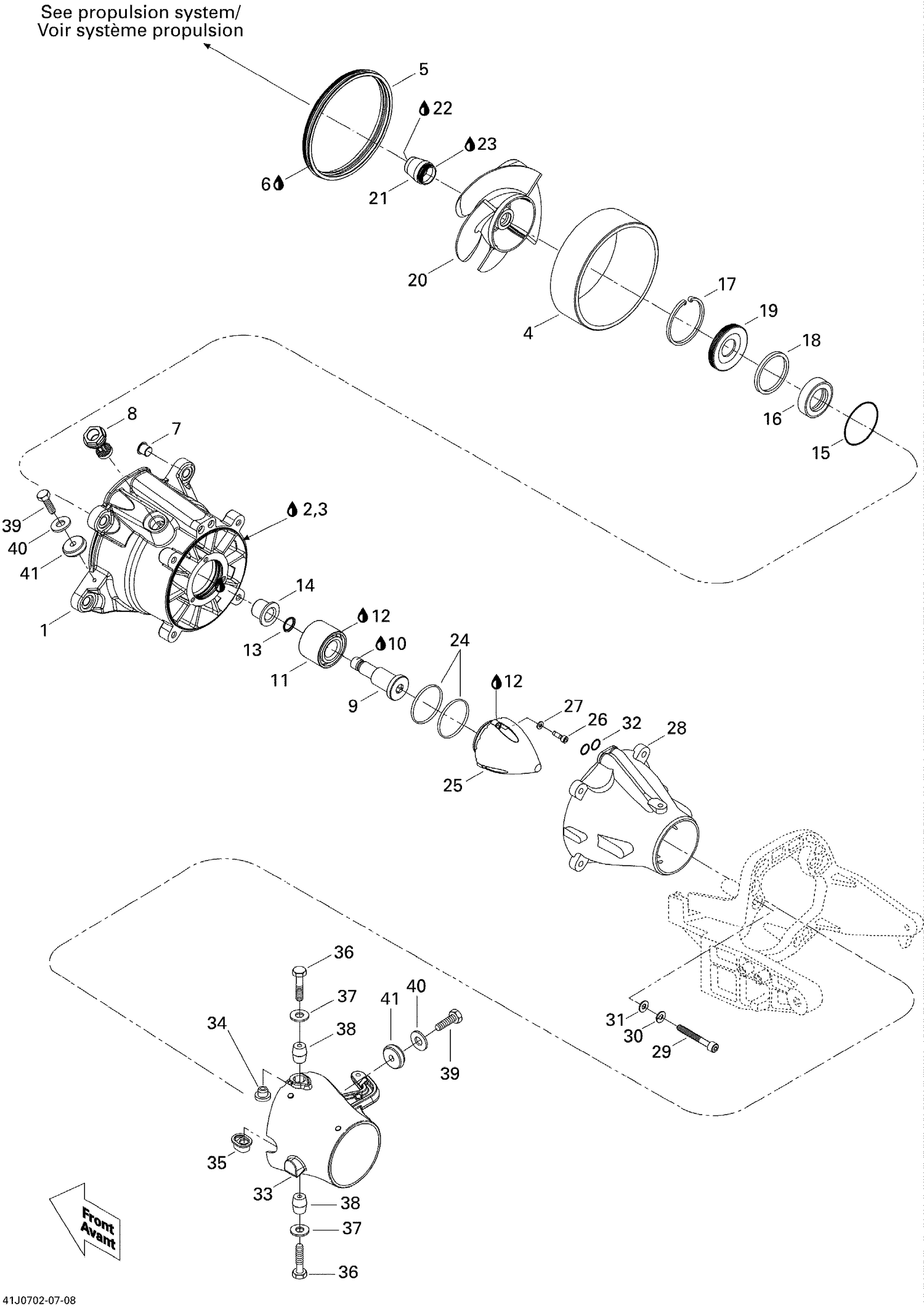

| Ref | Part Number | Description |
|---|
| 1 |
267000084 |
Impeller Housing |
| 2 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 4 |
267000372 |
Wear Ring This part replaces 267000105. |
| 5 |
293200087 |
Neoprene Seal |
| 6 |
413708300 |
Glue Tube, Loctite 454, 20 G |
| 7 |
267000093 |
Bushing |
| 8 |
267000282 |
Plug |
| 9 |
267000054 |
Impeller Shaft |
| 10 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 11 |
267000900 |
Angled Bearing This part replaces 267000030. |
| 12 |
293550032 |
Jet Pump Bearing Grease, 110 G |
| 13 |
505070315 |
O-Ring |
| 14 |
267000318 |
Shaft Sleeve |
| 15 |
293300090 |
O-Ring |
| 16 |
271002071 |
Seal This part replaces 293200086. |
| 17 |
293370038 |
Circlip |
| 18 |
271001393 |
Spacer |
| 19 |
293200089 |
Oil Seal |
| 20 |
267000699 |
Impeller Ass'y This part replaces 267000285. |
| 21 |
271002228 |
Guard This part replaces 267000085. |
| 22 |
293550010 |
Synthetic Grease, 400 G |
| 24 |
293300086 |
O-Ring |
| 25 |
267000262 |
Impeller Cover |
| 26 |
205562060 |
Socket Head Screw M6 X 20, Scotch Grip |
| 27 |
234061600 |
Stainless Flat Washer M6 |
| 28 |
204160302 |
Black, Venturi - Call your local BRP dealership |
| 29 |
231181060 |
Socket Screw M8 X 110, Scotch Grip |
| 30 |
234181601 |
Lock Washer 8 mm, Stainless |
| 31 |
293050001 |
Flat Washer M8.5 x 18 |
| 32 |
293300013 |
O-Ring |
| 33 |
462125 |
STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 271001784. |
| 34 |
293900001 |
Venturi Bushing |
| 35 |
293900010 |
Plastic Bushing |
| 36 |
211000047 |
SCREW-SPECIAL M8 - Call your local BRP dealership |
| 37 |
293050001 |
Flat Washer M8.5 x 18 |
| 38 |
271001816 |
Sleeve This part replaces 271000122. |
| 39 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 40 |
234061600 |
Stainless Flat Washer M6 |
