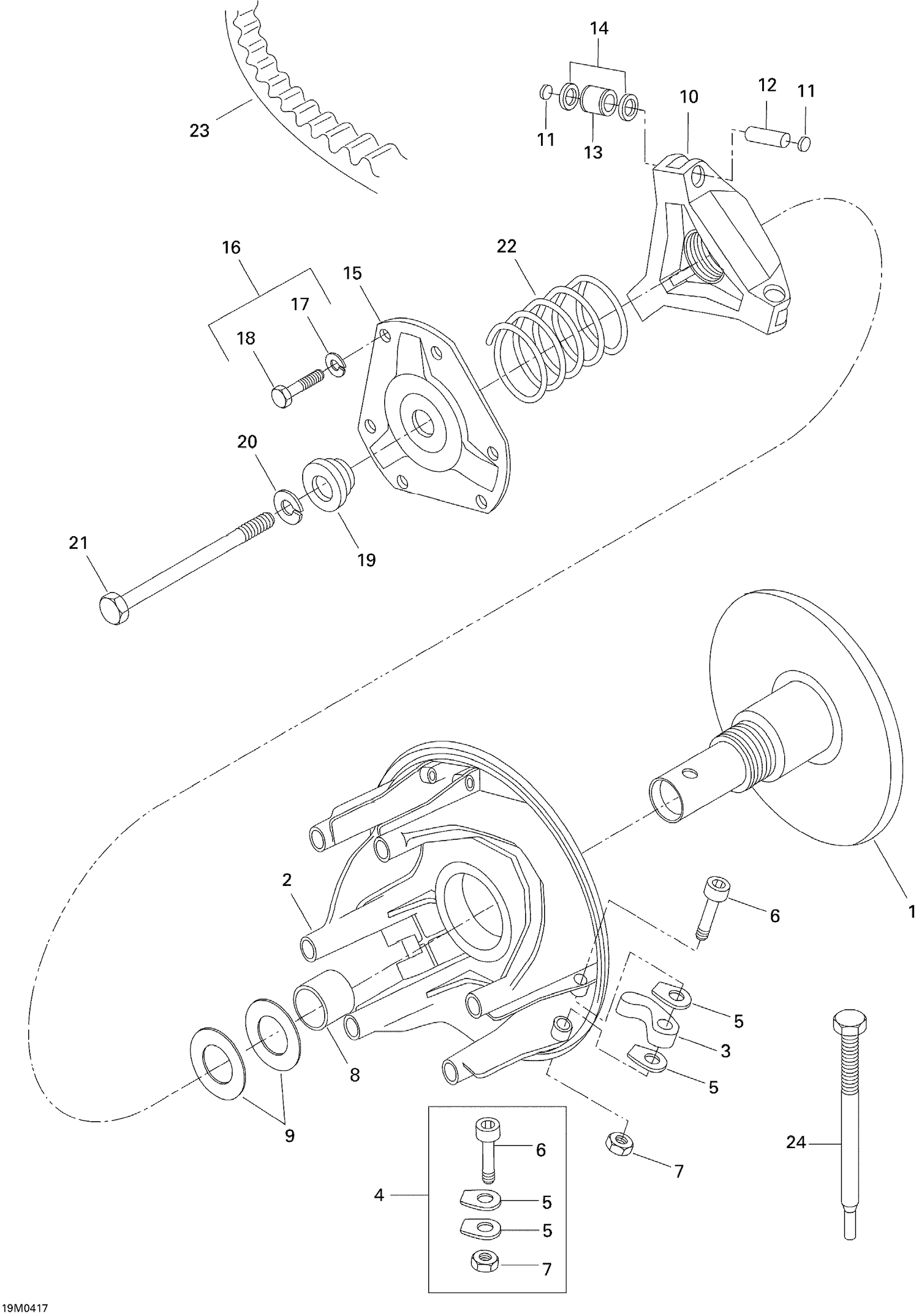

| Ref | Part Number | Description |
|---|
| 1 |
M140028 |
Inner Flange |
| 2 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 3 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 5 |
Not |
Available As Spare Part - Washer |
| 6 |
Not |
Available As Spare Part - Allen screw |
| 7 |
Not |
Available As Spare Part - Nut |
| 8 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 9 |
M140022 |
Spider Shim |
| 11 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 12 |
M140020 |
PIN - Call your local BRP dealership |
| 13 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 14 |
M140019 |
STOPPER WASHER - Call your local BRP dealership |
| 15 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 17 |
Not |
Available As Spare Part - Lock Washer |
| 18 |
Not |
Available As Spare Part - Hex screw |
| 19 |
M140013 |
PIVOT WASHER - Call your local BRP dealership |
| 20 |
M20090 |
Conical Spring Washer |
| 21 |
417113800 |
BOLT - Call your local BRP dealership |
| 22 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 23 |
414633800 |
Drive Belt |
