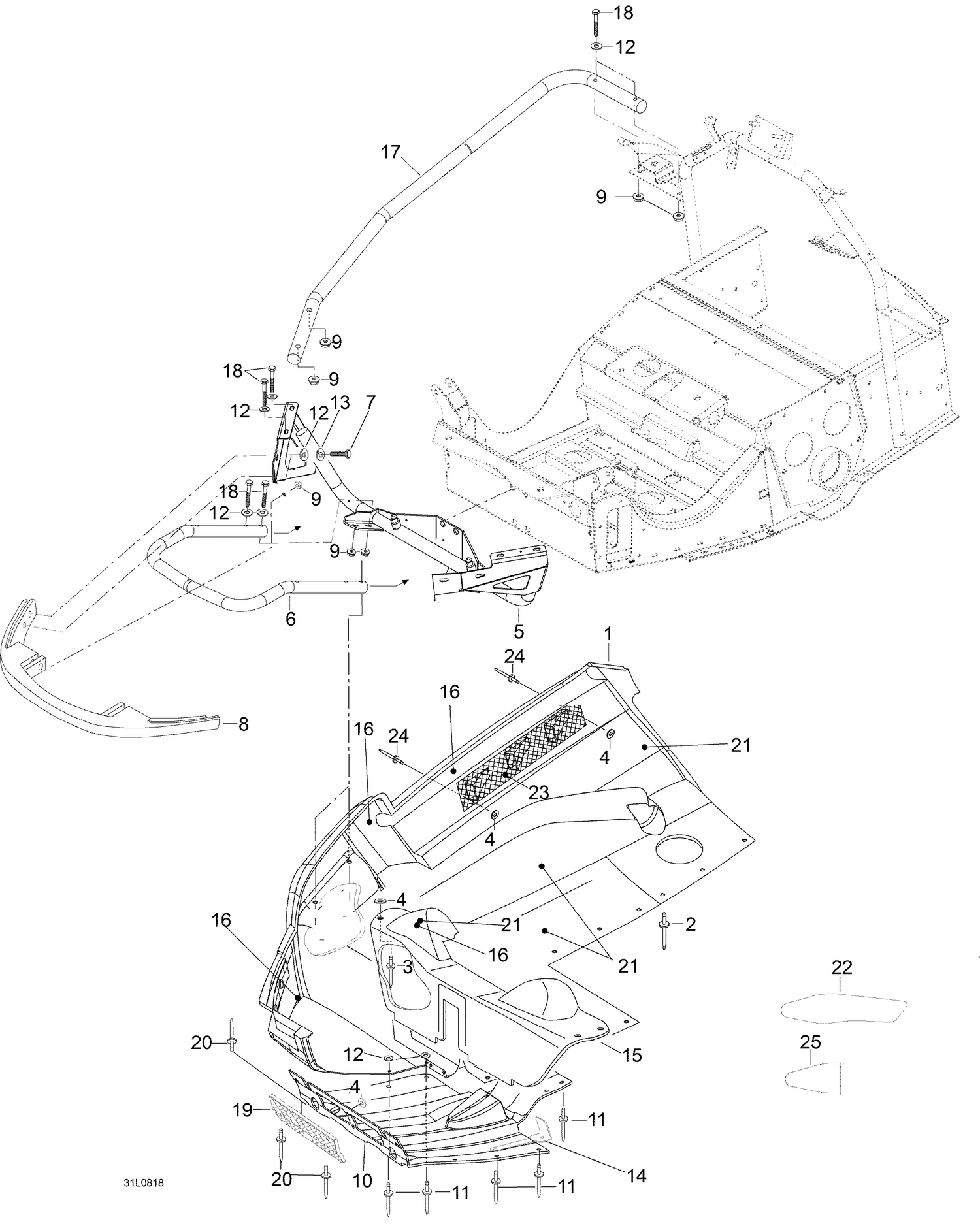

| Ref | Part Number | Description |
|---|
| 1 |
605155679 |
BOTTOM PAN ASS'Y, LH - Call your local BRP dealership |
| 1 |
605155753 |
BOTTOM PAN ASS'Y, RH - Call your local BRP dealership |
| 2 |
36037 |
Rivet |
| 3 |
36108 |
Rivet |
| 4 |
20008 |
Washer A5,3 |
| 5 |
605255398 |
WELDED FRONT BUMPER SUPPORT - Call your local BRP dealership |
| 6 |
605351509 |
BUMPER FRONT - Call your local BRP dealership |
| 7 |
40029 |
Screwi M6 x 16 |
| 8 |
502006719 |
Bumper, black |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 10 |
605154930 |
Bottom pan center |
| 11 |
36072 |
Rivet |
| 12 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 13 |
20052 |
Spring washer A6 |
| 14 |
605355617 |
BOTTOM PAN RIVETING PLATE - Call your local BRP dealership |
| 15 |
605355606 |
SHOCK COVER - Call your local BRP dealership |
| 16 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 17 |
605255395 |
SIDE BUMPER - Call your local BRP dealership |
| 18 |
40002 |
Screw M6 x 40 |
| 19 |
605255513 |
FRONT GRILL - Call your local BRP dealership |
| 20 |
36071 |
Rivet |
| 21 |
619690002 |
ISOLATION SHEET - Call your local BRP dealership |
| 22 |
605355681 |
Isolation bottompan L.H |
| 23 |
605354968 |
RH SIDE GRILL - Call your local BRP dealership |
| 23 |
605354969 |
LH SIDE GRILL - Call your local BRP dealership |
| 24 |
36009 |
Rivet |
