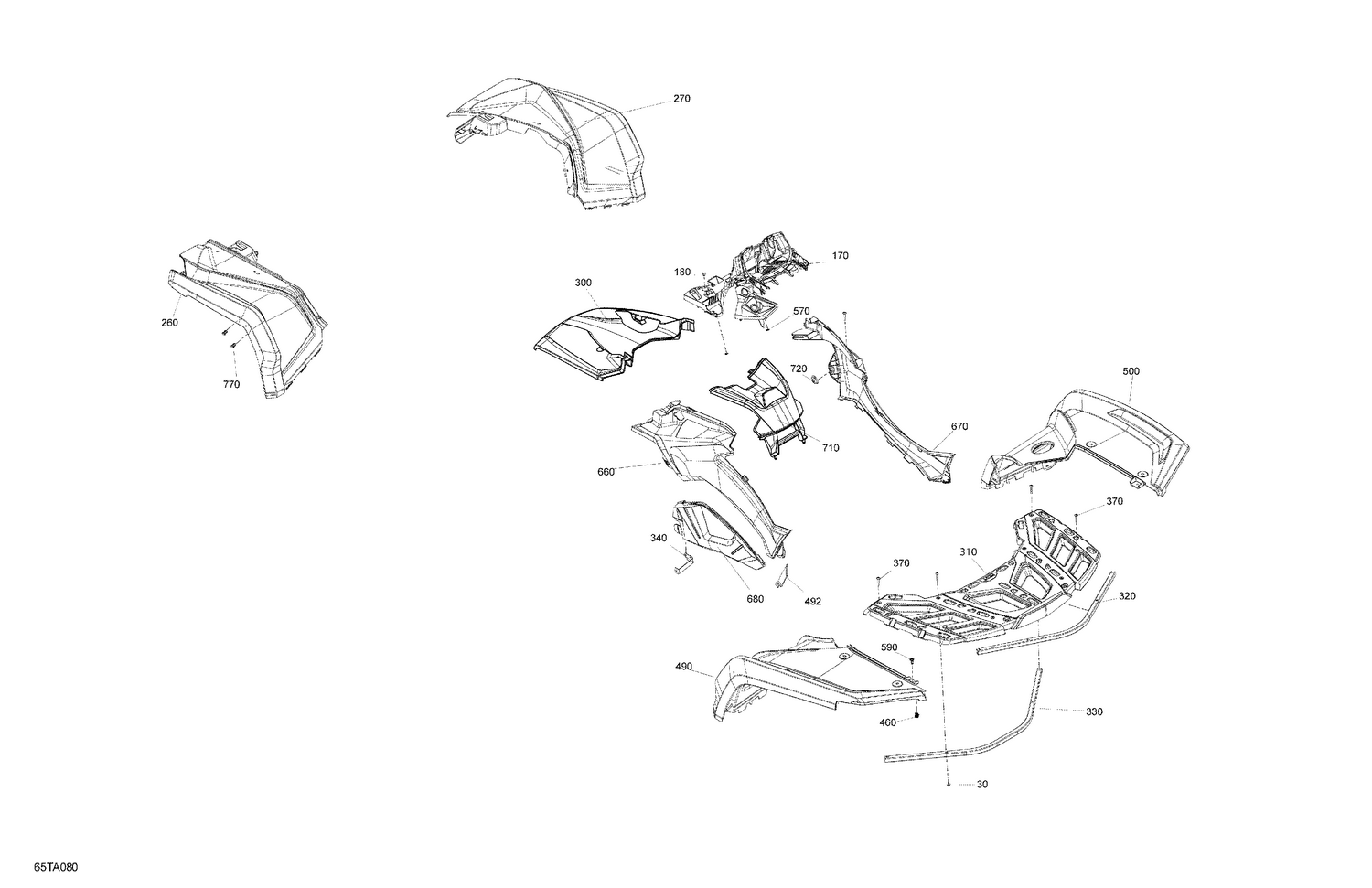

07- Body - Fender Kit
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 233261434 | Flange Elastic Nut M6 |
| 170 | 715006101 | Console Support Ass'y |
| 180 | 293830005 | Rubber Bumper |
| 260 | 715007872 | Neo Yellow, LH Front Fender Ass'y |
| 270 | 715007875 | Neo Yellow, RH Front Fender Ass'y |
| 300 | 708303674 | Neo Yellow, Hood |
| 310 | 715007072 | Rack Kit |
| 320 | 705016640 | Sectional Bent Tube This part replaces 705016091. |
| 330 | 705016092 | Bent Sectional Tube |
| 340 | 705007140 | LH Inner Fender Bracket |
| 370 | 250000646 | Black, Torx Screw M6 X 35 |
| 460 | 517302785 | Edge Clip |
| 490 | 715007065 | Timeless Black, LH Rear Fender Ass'y |
| 492 | 707002457 | Heat Shield |
| 500 | 705014386 | Timeless Black, RH Rear Fender This part replaces 705013850. |
| 570 | 732610072 | Push Nut |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 660 | 705015842 | Neo Yellow, LH Central Panel |
| 670 | 705015841 | Neo Yellow, RH Central Panel |
| 680 | 715007294 | Deflector Body Panel Kit |
| 710 | 715007686 | Console Cap Ass'y |
| 720 | 705003264 | Grommet |
| 770 | 293150230 | Tuflok Plastic Rivet |
