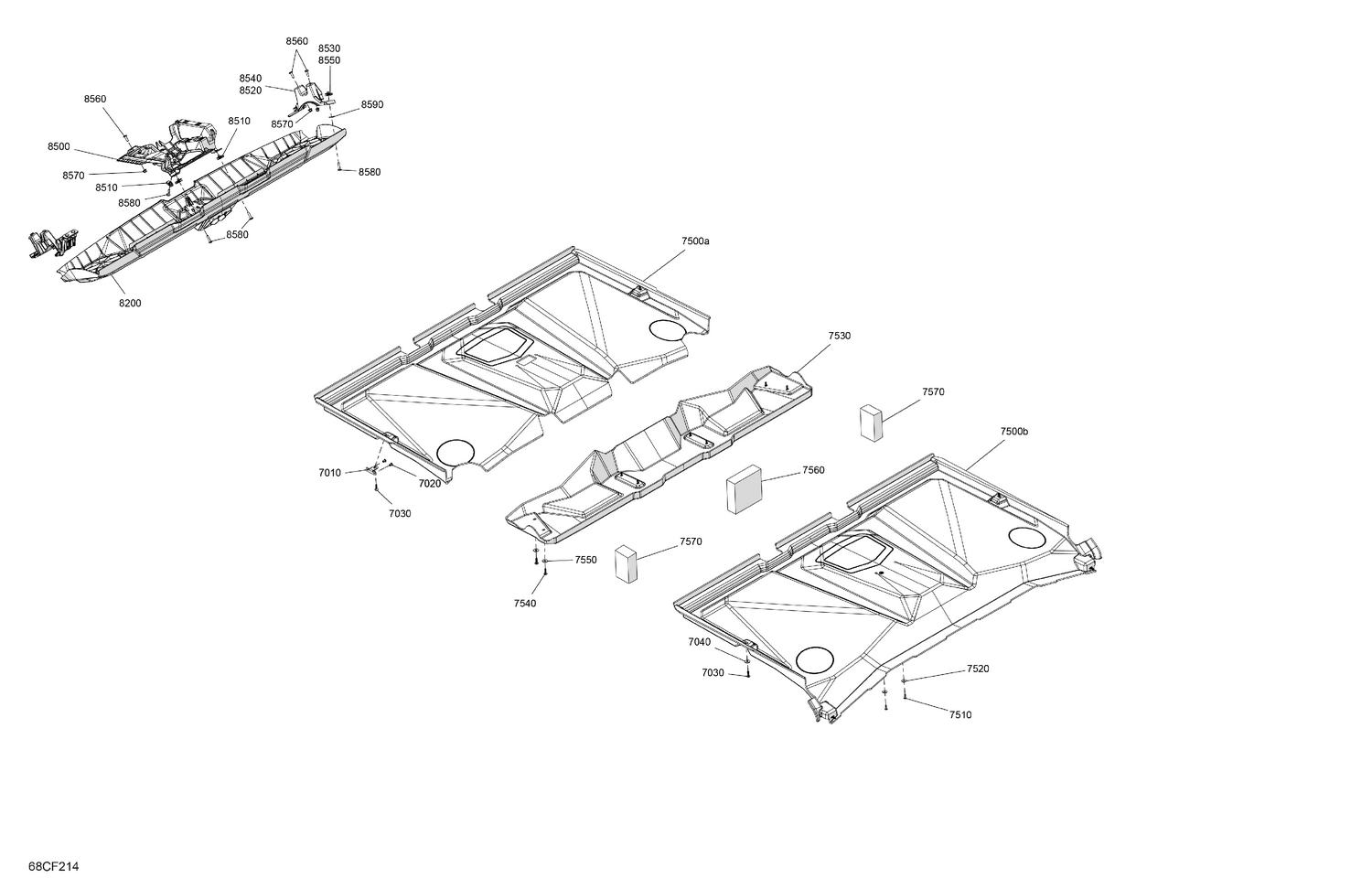

07- Enclosure Cab - Roof Liner
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 7010 | 705801102 | Roof Support |
| 7020 | 293150300 | Black, Pop Rivet 3/16 X ,425 |
| 7030 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 7040 | 234062670 | Stainless Steel Flat Washer |
| 7500a | 705801586 | Front Roof Liner |
| 7500b | 705801528 | Rear Roof Liner |
| 7510 | 250000759 | Torx Truss Pt K40 X 16 |
| 7520 | 250200025 | Washer M5 |
| 7530 | 705800132 | Roof Liner Support |
| 7540 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 7550 | 234062670 | Stainless Steel Flat Washer |
| 7560 | 705800221 | Roof Liner Spacer |
| 7570 | 705800255 | Roof Liner Spacer |
| 8200 | 715011313 | Roof Trim |
| 8500 | 705801183 | Central Molded Support |
| 8510 | 250100198 | Panel Nut M6 X 1.0 |
| 8520 | 705801181 | LH Upper Molded Support |
| 8530 | 250100198 | Panel Nut M6 X 1.0 |
| 8540 | 705801182 | RH Upper Molded Support |
| 8550 | 250100198 | Panel Nut M6 X 1.0 |
| 8560 | 250000722 | Torx Screw M6 X 20 |
| 8570 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8580 | 250000807 | Torx Truss Screw M6 X 25 |
