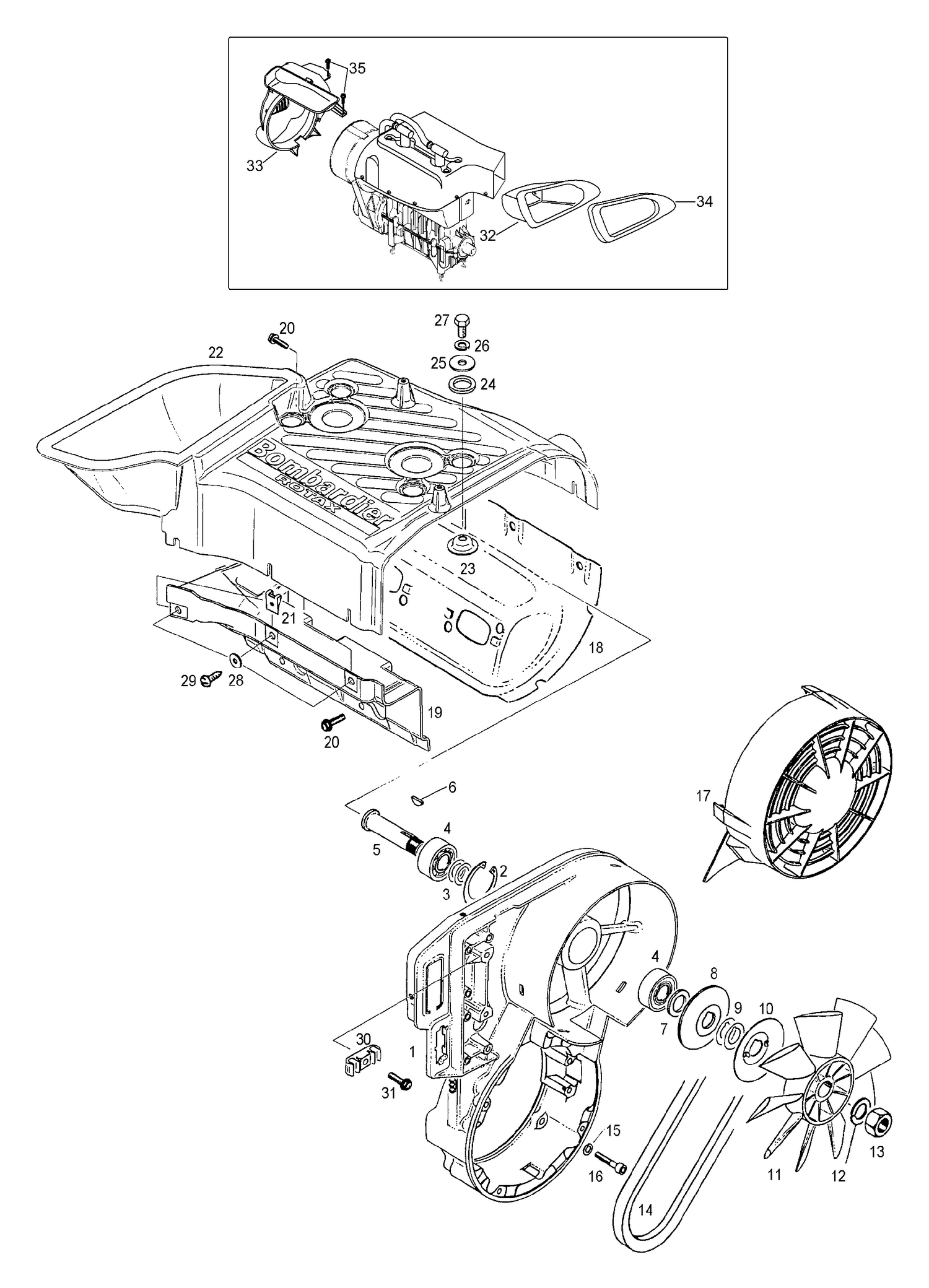

01- Radiator, Hoses
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420912230 | Fan Housing This part replaces 420912203. |
| 2 | 420945880 | Retaining ring |
| 3 | 420244585 | Shim |
| 4 | 420832161 | Ball Bearing This part replaces 405406100. |
| 5 | 420937941 | Fan Axle This part replaces 420937940. |
| 6 | 420246015 | Woodruff Key |
| 7 | 420827650 | Distance sleeve |
| 8 | 420980496 | Belt disk |
| 9 | 420827080 | Adj.washer 0.5 |
| 9 | 420827082 | Adj.washer 0.2 |
| 10 | 420980523 | Protection washer |
| 11 | 420866292 | FAN - Call your local BRP dealership |
| 12 | 420945756 | Spring washer |
| 13 | 420942289 | Nut M16 This part replaces 420942285. |
| 14 | 414630800 | V-belt |
| 15 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 16 | 205063044 | Allen screw M6x30 |
| 17 | 420975695 | FAN COVER - Call your local BRP dealership |
| 18 | 420811392 | Lower Cowling This part replaces 420811390. |
| 19 | 420811825 | Lower cowl |
| 20 | 420240580 | TAPTITE SCREW M6 X 16 - Call your local BRP dealership |
| 21 | 417300005 | SPRING NUT U #10-24 - Call your local BRP dealership |
| 22 | 420811820 | CYLINDER COWL - Call your local BRP dealership |
| 23 | 420827817 | Cup washer |
| 24 | 420960865 | Rubber washer |
| 25 | 420227936 | Washer This part replaces 420227935. |
| 26 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 27 | 207181644 | Screw M8x16 |
| 28 | 420926180 | FLAT WASHER - Call your local BRP dealership |
| 29 | 417300006 | Selftapping screw |
| 30 | 420860945 | CLAMP - Call your local BRP dealership |
| 31 | 420841555 | Taptite screw M5x20 |
| 32 | 5247489 | Outlet Duct |
| 33 | 509000117 | Inlet duct |
| 34 | 5247592 | Seal |
