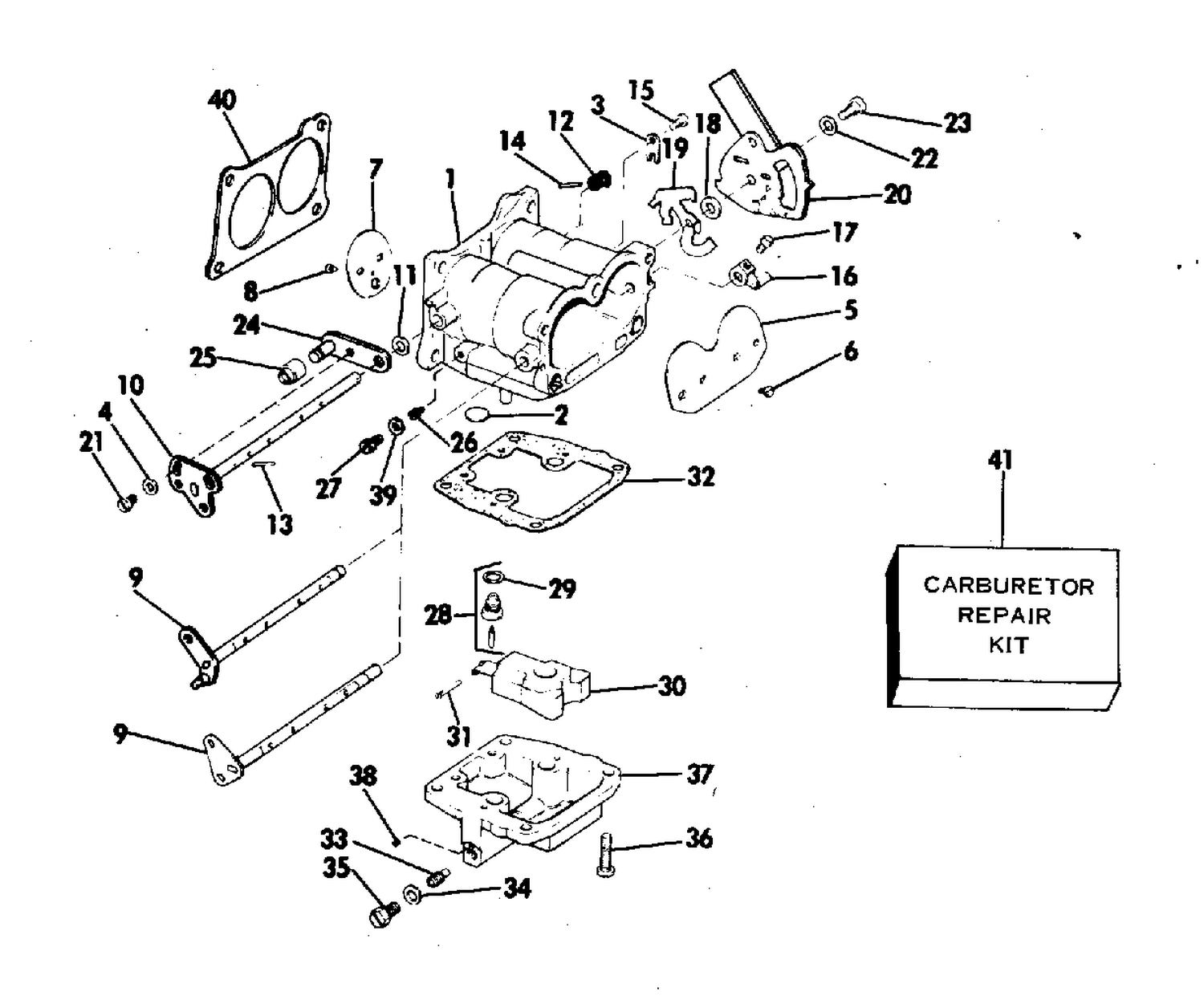

CARBURETOR
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0387674 | BODY ASSY.,Upper |
| 1 | 0387675 | BODY ASSY.,Middle |
| 1 | 0387676 | BODY ASSY.,Lower |
| 3 | 0314906 | CLIP |
| 7 | 0317182 | THROTTLE VALVE |
| 9 | 0387300 | CHOKE SHAFT |
| 9 | 0387302 | CHOKE SHAFT |
| 10 | 0387301 | THROTTLE SHAFT |
| 20 | 0387529 | LEVER AND HANDLE |
| 21 | 0303212 | VIS, collier & capot |
| 22 | 0310540 | RONDELLE, arbre de verrouillage de relevage, extérieur |
| 27 | 0317501 | SCREW PLUG, Orifice |
| 30 | 0383437 | FLOAT ASSEMBLY |
| 32 | 0338884 | GASKET, Float bowl This part replaces 0314884. |
| 33 | 0321731 | ORIFICE PLUG |
| 35 | 0307832 | PLUG, Screw |
| 36 | 0307466 | SCRES, Bowl to body |
| 37 | 0384913 | FLOAT CHAMBER ASSY |
| 40 | 0315052 | GASKET CARB. TO MANIFOLD |
| 0387303 | 0387303 | CARB ASSY.,Upper |
| 0387304 | 0387304 | CARB ASSY.,Middle |
| 0387305 | 0387305 | CARB ASSY.,Lower |
