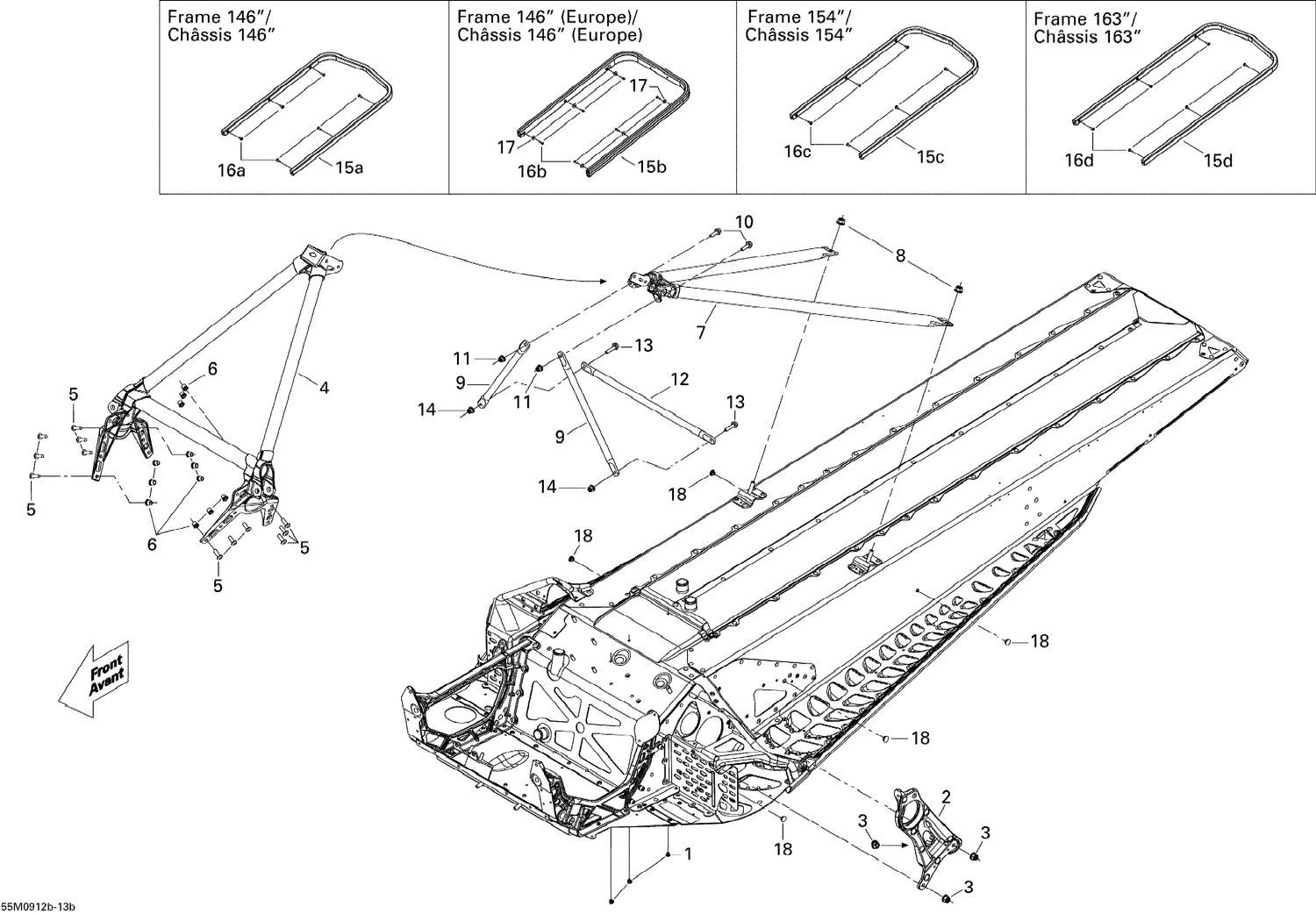

09- Frame and Components 2
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 390402400 | Pop Rivet 3/16" |
| 2 | 518327460 | Driven Pulley Support This part replaces 518325933. |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 |
| 4 | 518326970 | Front Member This part replaces 518325929. |
| 5 | 207662044 | Hex. Flange Screw M6 X 20 |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7 | 518326559 | Rear Member This part replaces 518325927. |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 |
| 9 | 518325114 | Upper Lateral Column Support |
| 10 | 207662044 | Hex. Flange Screw M6 X 20 |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 518325115 | Center Column Support |
| 13 | 207662544 | Hex. Flange Screw M6 X 25 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 15a | 518325374 | Rear Bumper, 146" |
| 15c | 518324982 | Clear Rear Bumper, 154" |
| 15d | 518325375 | CLEAR REAR BUMPER, 163 - Call your local BRP dealership |
| 16a | 250000223 | Torx Screw M6 X 16 |
| 16c | 250000223 | Torx Screw M6 X 16 |
| 16d | 250000223 | Torx Screw M6 X 16 |
