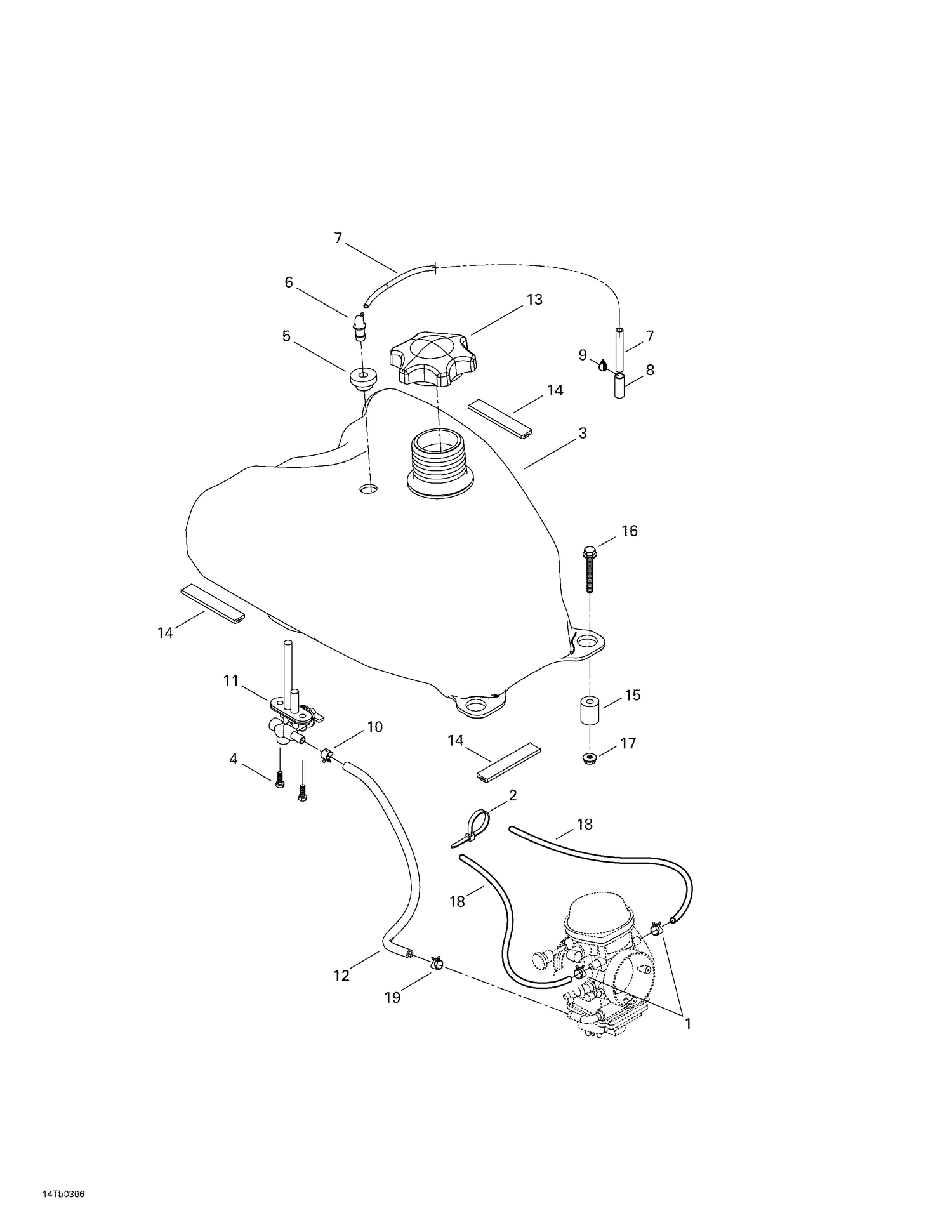

02- Fuel System
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 414420700 | Spring Clamp |
| 2 | 293750002 | Tie Wrap 142 mm |
| 3 | 709000010 | FUEL TANK - Call your local BRP dealership |
| 4 | 207151444 | Hex. Screw M5 X 14 |
| 5 | 570045500 | Grommet |
| 6 | 414814100 | Male Connector |
| 7 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 8 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 10 | 414655700 | Spring Clamp |
| 11 | 709000011 | FUEL VALVE - Call your local BRP dealership |
| 12 | 219704422 | HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership |
| 13 | 513033722 | Fuel Tank Cap 91 Octane This part replaces 572073900. |
| 14 | 219704364 | Neoprene Seal (1PAC=3M) |
| 15 | 705000114 | SPACER - Call your local BRP dealership |
| 16 | 207686044 | Hex. Flange Screw M8 x 60 |
| 17 | 233281414 | Hex. Flange Elastic Nut M8 |
| 18 | 707200131 | Hose |
