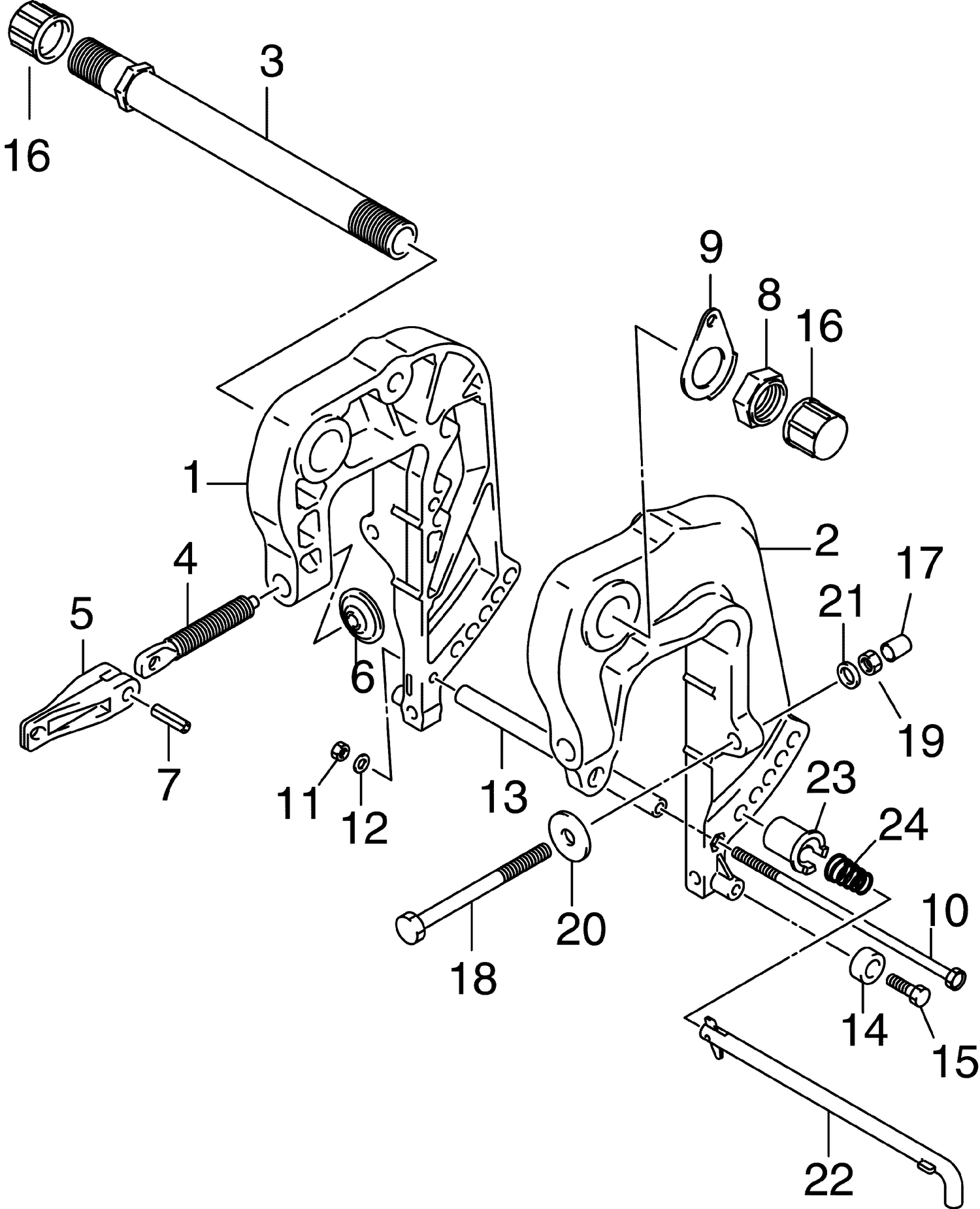

STERN BRACKET
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5036998 | BRACKET, CLAMP STBD (WHITE) |
| 2 | 5037163 | BRACKET, CLAMP PORT (WHITE) |
| 3 | 5036999 | SHAFT, Clamp bracket |
| 4 | 5037000 | SCREW, Clamp |
| 9 | 5035119 | WASHER |
| 10 | 5037001 | BOLT, Clamp bracket - lower |
| 13 | 5037002 | SPACER, Clamp bracket |
| 16 | 5031489 | CAP, CLAMP BRACKET |
| 17 | 5037004 | CAP, Transom bolt |
| 18 | 5037005 | BOLT, Transom (10X110) |
| 19 | *5030054 | NUT |
| 20 | 5037006 | WASHER, Transom (10.5X35X3) |
| 21 | 5037164 | WASHER, Transom (10.5X18X3) |
| 22 | 5037007 | PIN, Tilt lock |
| 23 | 5037008 | STOPPER, Tilt lock pin |
