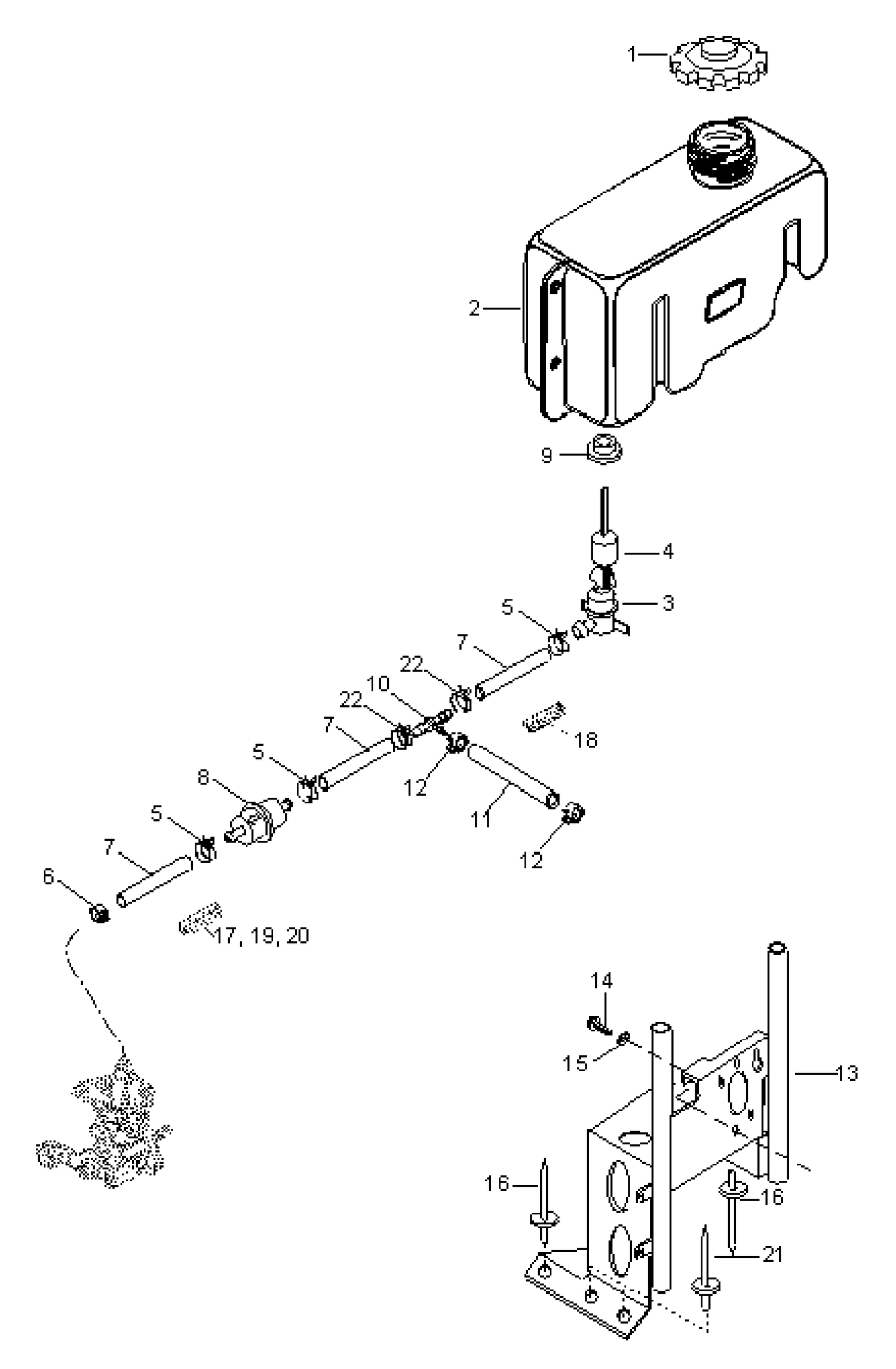

01- Oil Tank
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000044 | CAP - Call your local BRP dealership This part replaces 572071000. |
| 2 | 5142700 | Oil tank |
| 3 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 4 | 414681900 | Float |
| 5 | 27119F | Clamp |
| 6 | 414420700 | Universal Spring Clamp |
| 7 | 39046 | Hose 11/8 |
| 8 | 414536500 | Oil filter |
| 9 | 570023000 | Seal for sensor |
| 10 | 28316 | T-fitting |
| 11 | 39004 | Hose 8/5 |
| 12 | 414655700 | Clamp |
| 13 | 5145755 | Support weld. |
| 14 | 40184 | Screw |
| 15 | 20002 | Washer |
| 16 | 36070 | Rivet |
| 17 | 5444054 | Spring l=55mm |
| 18 | 28015 | Tubing |
| 19 | 5444058 | Spring l=135mm |
| 20 | 5444057 | Spring l=35mm |
| 21 | 36087 | Rivet |
