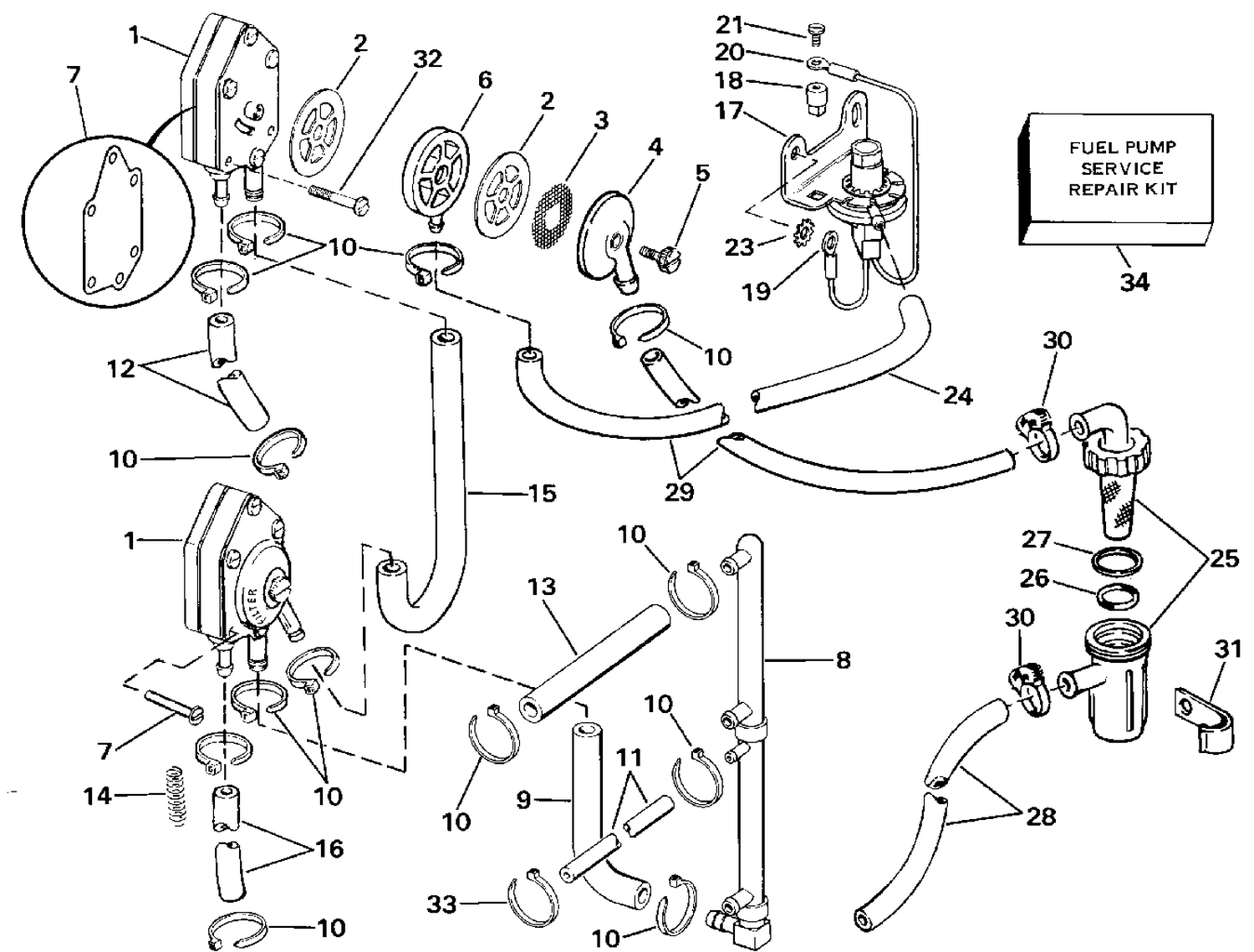

| Ref | Part Number | Description |
|---|
| 1 |
0438558 |
FUEL PUMP ASSY., Upper This part replaces 0393649. |
| 1 |
0438559 |
FUEL PUMP ASSY., Lower This part replaces 0394716. |
| 2 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0312679. |
| 4 |
0322759 |
CAP, Filter |
| 5 |
0330110 |
SCREW, Cap |
| 6 |
0328481 |
HOUSING, Vacuum |
| 8 |
0390466 |
FUEL MANIFOLD ASSY |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
HOSE, |
Manifold to primer, 6-3/4" |
| 13 |
HOSE, |
Carb. to manifold, 4-1/2" |
| 14 |
0315942 |
SPRING |
| 15 |
0333381 |
HOSE, Connector to filter This part replaces 0323401. |
| 16 |
HOSE, |
Pump to crankcase, 5-1/4" |
| 17 |
0394937 |
VACUUM SWITCH |
| 18 |
0328600 |
TERMINAL GROMMET |
| 21 |
0330448 |
SCREW, Switch lead |
| 24 |
HOSE, |
Vacuum switch to pump, 13" |
| 25 |
0397715 |
FILTER, Fuel This part replaces 0394375. |
| 28 |
HOSE, |
Connector to filter, 9-3/8" |
| 29 |
HOSE, |
Filter to pump, 15" |
| 32 |
0328717 |
NUT, Ground lead |
