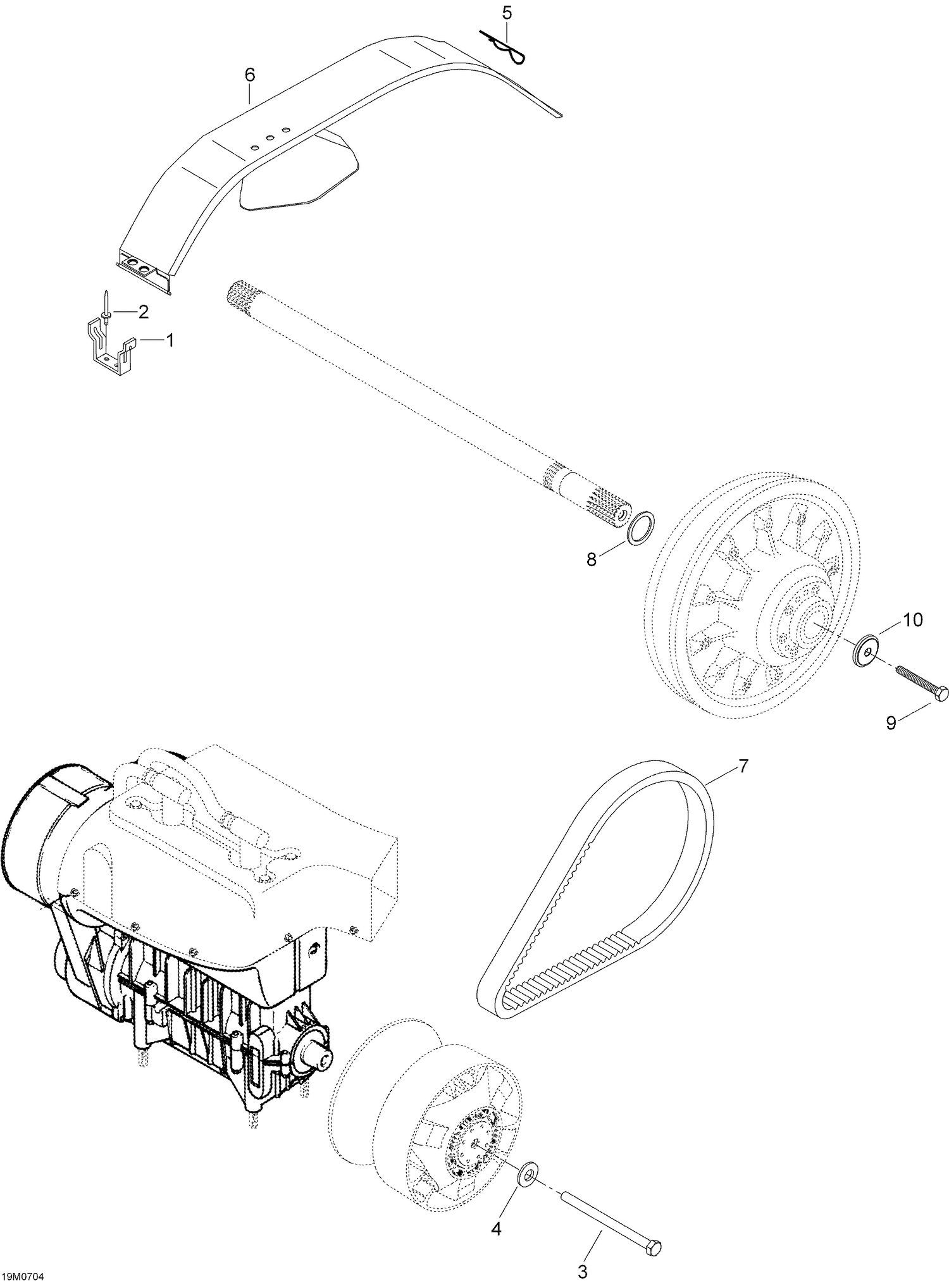

05- Pulley System
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 518202100 | Belt Guard Bracket |
| 2 | 36108 | Rivet This part replaces M36083. |
| 3 | 417113800 | BOLT - Call your local BRP dealership |
| 4 | M20090 | Conical Spring Washer |
| 5 | 5442726 | Pin This part replaces M5442726. |
| 6 | M5145964 | Belt Guard |
| 7 | 414633800 | Drive Belt |
| 8 | M548001 | Shim |
| 9 | M40012 | Screw M8 X 80 |
