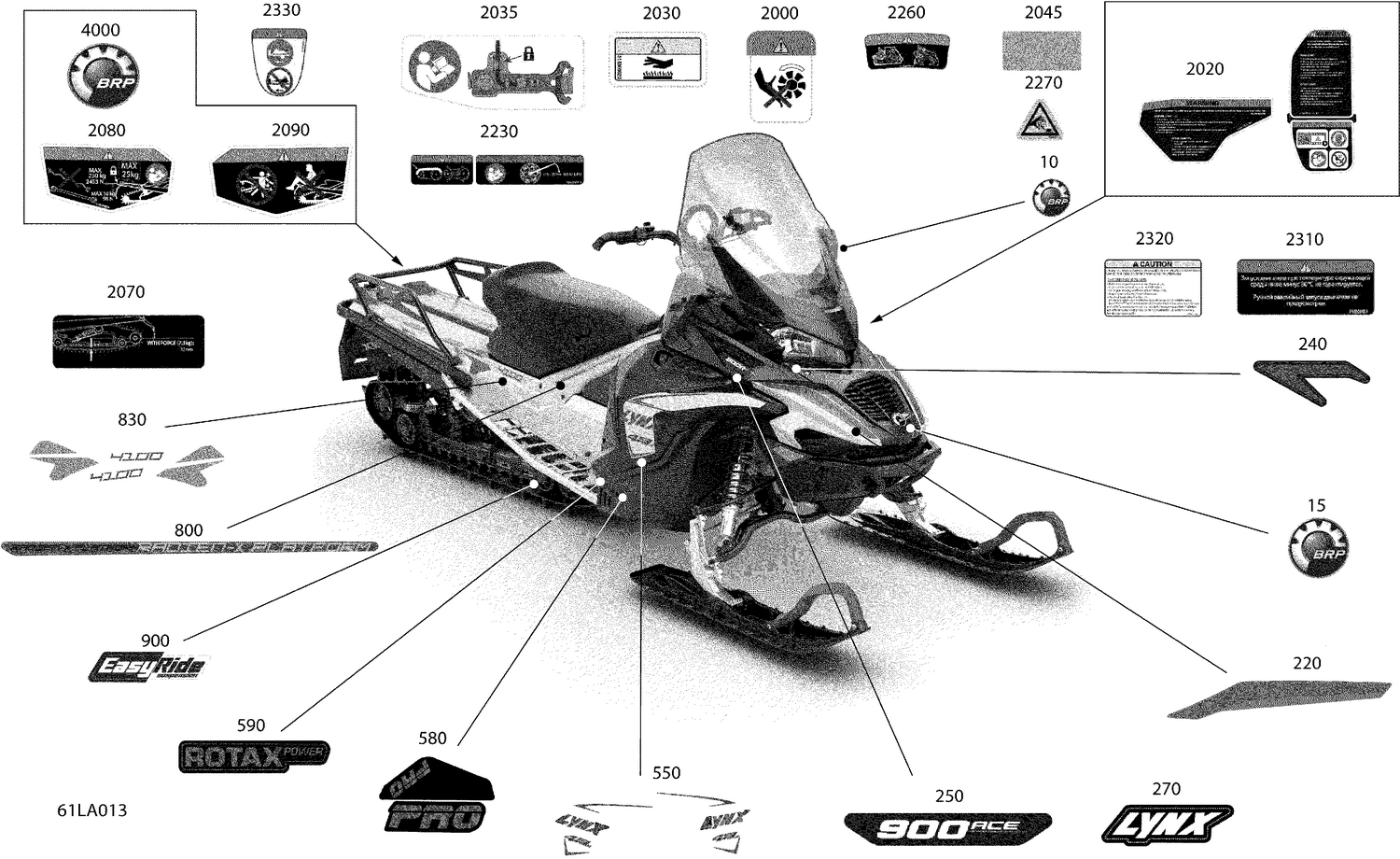

07- Body - Decals
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704904615 | BRP Logo, 13 mm |
| 15 | 516008739 | Logo 68mm "BRP" |
| 220 | 516010396 | LH/RH Hood Decal |
| 240 | 516009047 | LH/RH Upper Side Panel Decal |
| 250 | 516009428 | LH/RH Upper Side Panel Decal "900 ACE" |
| 270 | 516009552 | Decal "Lynx" |
| 550 | 516010399 | LH/RH Sidepanel Decal "LYNX 49 RANGER" |
| 580 | 516010404 | LH/RH Bottom Pan Decal "PRO" |
| 590 | 516008760 | Decal "Rotax Power" |
| 800 | 516009815 | LH/RH Decals "Radien-X Platform" |
| 830 | 516010419 | LH/RH Frame Decal "4100" |
| 900 | 516008736 | Black, WTS Decal |
| 2000 | 516009920 | Warning Decal |
| 2020 | 516009921 | Decal - Label En/Fi/Swe |
| 2030 | 516009922 | Warning Decal |
| 2035 | 516009955 | Warning Decal |
| 2045 | 516009954 | Protective Decal |
| 2070 | 516010615 | Decal Track Tension |
| 2080 | 516009806 | Instruction/Warning Label |
| 2090 | 516009925 | Warning Decal Rotating Track |
| 2230 | 516009933 | Pulley Warning Decal |
| 2260 | 516009932 | Warning Decal |
| 2270 | 516009935 | Warning Decal, Hot liquid |
| 2310 | 516009934 | Warning Decal |
| 2320 | 516005521 | Caution Decal, Oil Level |
| 2330 | 516009931 | Tow Warning Decal |
