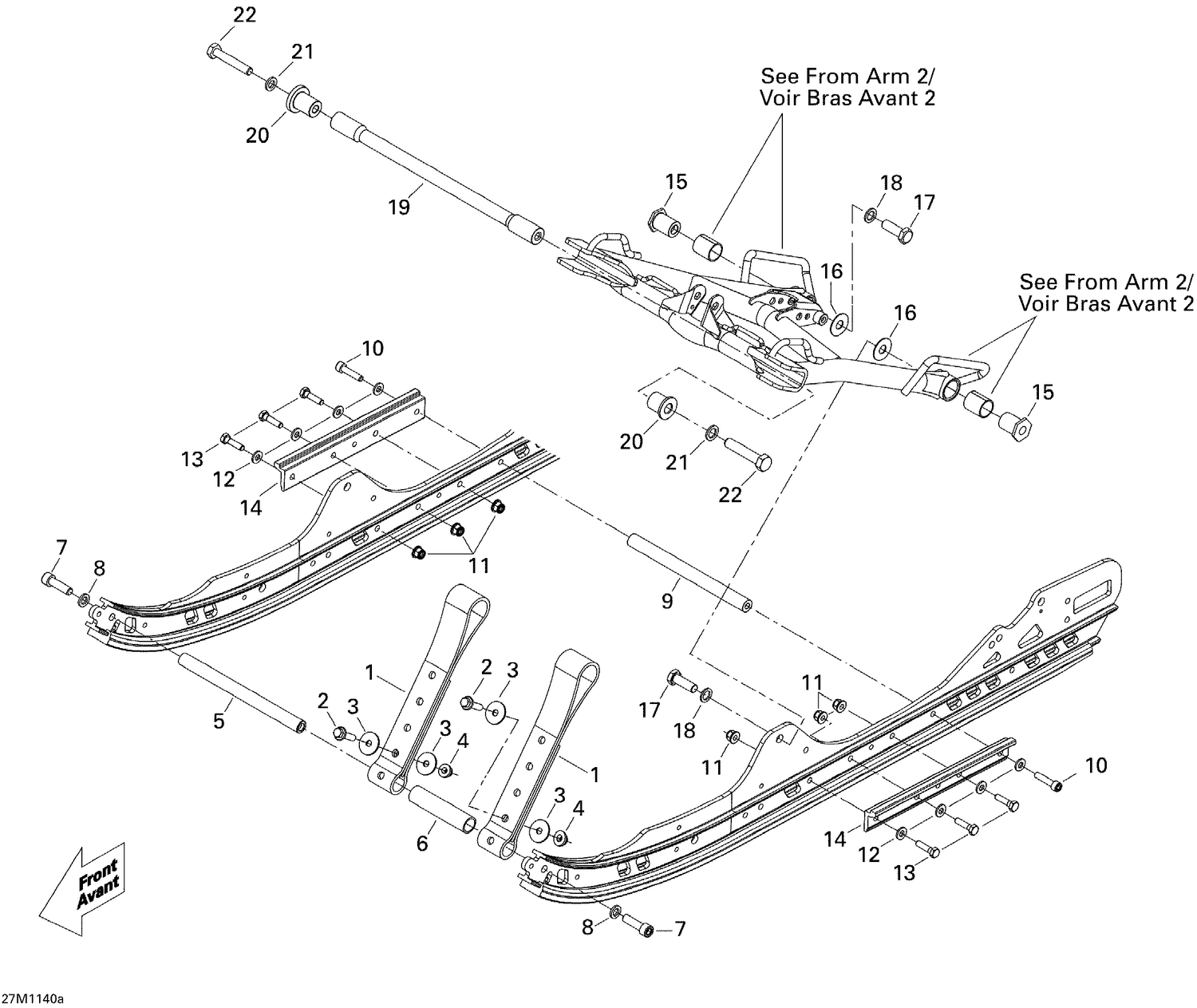

08- Front Arm 1
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192360 | Stopper Strap |
| 2 | 207683044 | Hex. Flange Screw M8 X 30 |
| 3 | 224081301 | Flat Washer |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 503192115 | RUNNER AXEL - Call your local BRP dealership |
| 6 | 503189265 | Spacer |
| 7 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 8 | 503189564 | Washer |
| 9 | 503151600 | Axle |
| 10 | 205583544 | Socket Head Screw M8 X 35, Scotch Grip |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 |
| 12 | 503189157 | Washer |
| 13 | 207183044 | Hex. Screw M8 X 30 |
| 14 | 503191804 | RAIL REINFORCEMENT - Call your local BRP dealership |
| 15 | 503191966 | Lower Axle |
| 16 | 503190656 | Washer |
| 17 | 250000537 | Hex. Cap Screw M12 X 35 This part replaces 250000225. |
| 18 | 503189276 | Washer |
| 19 | 503192713 | Slide Bushing |
| 20 | 503192721 | Bushing |
| 21 | 503189564 | Washer |
