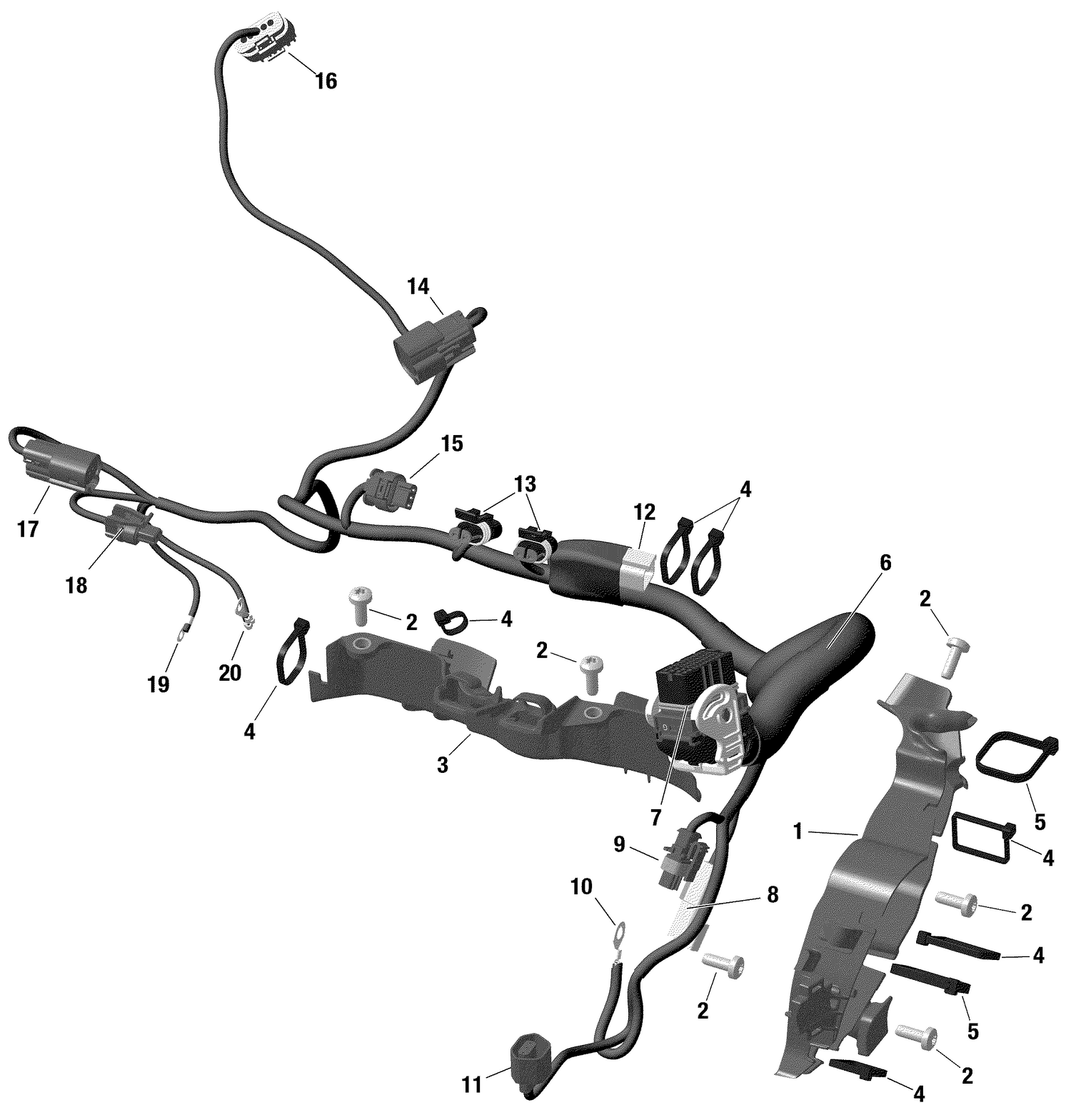

10- Engine Harness
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420260153 | HARNESS SUPPORT - Call your local BRP dealership |
| 2 | 420640324 | Torx Screw M6 X 16 |
| 3 | 420260157 | HARNESS SUPPORT - Call your local BRP dealership |
| 4 | 293750002 | Tie Wrap 142 mm |
| 5 | 420651397 | Tie Rap |
| 8 | 409206900 | Male Housing, 2 Circuits |
| 9 | 278001005 | Male Housing, 2 Circuits |
| 11 | 415130195 | Connector |
| 12 | 409206900 | Male Housing, 2 Circuits |
| 13 | 409209500 | Female Housing, 2 Circuits |
| 14 | 515178202 | Coil Connector |
| 17 | 710005827 | Connector 2 Pins with CPA |
| 18 | 515177192 | Female Housing, 2 Circuits |
