Parts Catalog

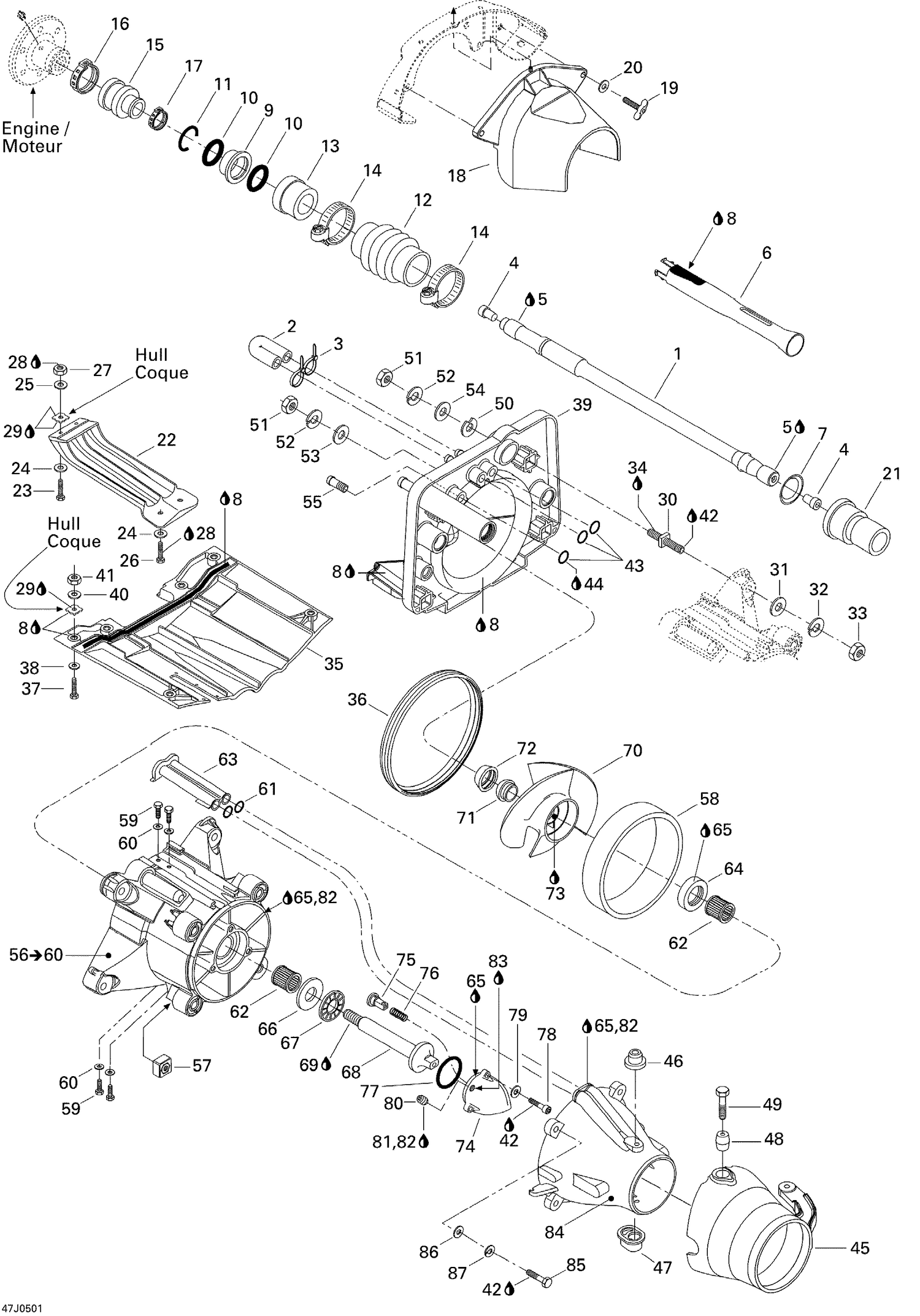

05- Propulsion And Pump

Parts (83)

Ref	Part Number	Description
1	272000151	DRIVE SHAFT - Call your local BRP dealership
2	219704412	Polyurethane Hose, 8 Mm 3000Mm Long
3	293750001	Tie Wrap 94 mm
4	272000019	DRIVE SHAFT PLUG - Call your local BRP dealership
5	293550010	Synthetic Grease, 400 G
6	204120135	SHAFT PROTECTEUR - Call your local BRP dealership
7	204120132	Retaining Ring
8	219701421	Instant Gasket This part replaces 219700363.
9	272000064	Support Ring
10	293300032	O-Ring
11	272000135	C-CLIP - Call your local BRP dealership
12	272000184	BELLOWS - Call your local BRP dealership
13	272000770	Carbon Ring
14	293650075	Norma Clamp
15	272000001	RUBBER BOOT - Call your local BRP dealership
16	293650021	OETIKER CLAMP - Call your local BRP dealership
17	293650067	OETIKER CLAMP - Call your local BRP dealership
18	272000094	FLYWHEEL GUARD - Call your local BRP dealership
19	207982510	Wing Screw M8 X 25
20	234082600	Flat Washer 8 mm, Stainless
21	292000075	HULL INSERT, 33 MM - Call your local BRP dealership
22	271000790	PUMP GRATE - Call your local BRP dealership
23	207164560	Hex. Screw M6 X 45
24	234061600	Stainless Flat Washer M6
25	234062600	Flat Washer M6, Stainless
26	207161660	Hex. Screw M6 X 16
27	232561600	Hex. Elastic Stop Nut M6
28	293800005	Loctite 271, 10 ml
29	296000309	Silicone Sealant 51388, 300 ml
30	250300022	Square Stud This part replaces 250300010.
31	234002600	Flat Washer 10 mm, Stainless
32	234101601	Helicoidal Lock Washer M10
33	232001600	HEX. NUT M10 - Call your local BRP dealership
35	271000955	RIDING PLATE, BLACK - Call your local BRP dealership
36	293200051	Neoprene Seal
37	207184060	Hex. Screw M8 X 40
38	234081600	Stainless, Flat Washer 8 mm
39	204120264	Pump Support
40	234082600	Flat Washer 8 mm, Stainless
41	232581600	Hex. Elastic Nut M8
42	293800060	Loctite 243, 10 ml
43	293250084	Watertight Seal
45	204160144	Steering Nozzle
46	293900001	Venturi Bushing
47	293900010	Plastic Bushing
48	204160153	Venturi Spacer
49	211000047	SCREW-SPECIAL M8 - Call your local BRP dealership
50	0460011	NEEDS DESCRIPTION This part replaces 204120067.
50	272000053	Shim 0.3 mm
51	232001600	HEX. NUT M10 - Call your local BRP dealership
52	234101601	Helicoidal Lock Washer M10
53	234001600	Flat Washer 10 mm, Stainless
54	234002600	Flat Washer 10 mm, Stainless
55	204120265	COOLANT FITTING - Call your local BRP dealership
57	211100033	Square Nut M8
58	271000653	Wear Ring
59	250000040	Hex. Plastite Screw #10 X 3/8"
60	234051600	Flat Washer M5, Stainless
61	293300013	O-Ring
62	293350017	Needle Bearing
63	271000785	Water Outlet
64	267000094	Oil Seal
66	293350020	THRUST WASHER - Call your local BRP dealership
67	293350022	Thrust-Bearing
68	271000965	Impeller Shaft
69	219704461	LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
70	204160136	Impeller Assy - Call your local BRP dealership
71	271000516	Impeller Boot
72	271000517	Impeller Ring
73	219704458	Was 293800041 Loctite Primer 7649
74	271001250	IMPELLER COVER - Call your local BRP dealership
75	271000978	PUSHER - Call your local BRP dealership
76	271000973	SPRING - Call your local BRP dealership
77	293300011	O-Ring
78	205062560	Socket Head Screw M6 X 25
79	234061600	Stainless Flat Washer M6
80	211500001	Pipe Plug Socket Head 1/8-27 Npt
81	219704454	Was 293800013 Loctite 56765
82	219704458	Was 293800041 Loctite Primer 7649
83	779221	JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011.
84	204160191	Venturi, Black
85	207087060	HEX. SCREW M8 X 70 - Call your local BRP dealership
86	293050001	Flat Washer M8.5 x 18
