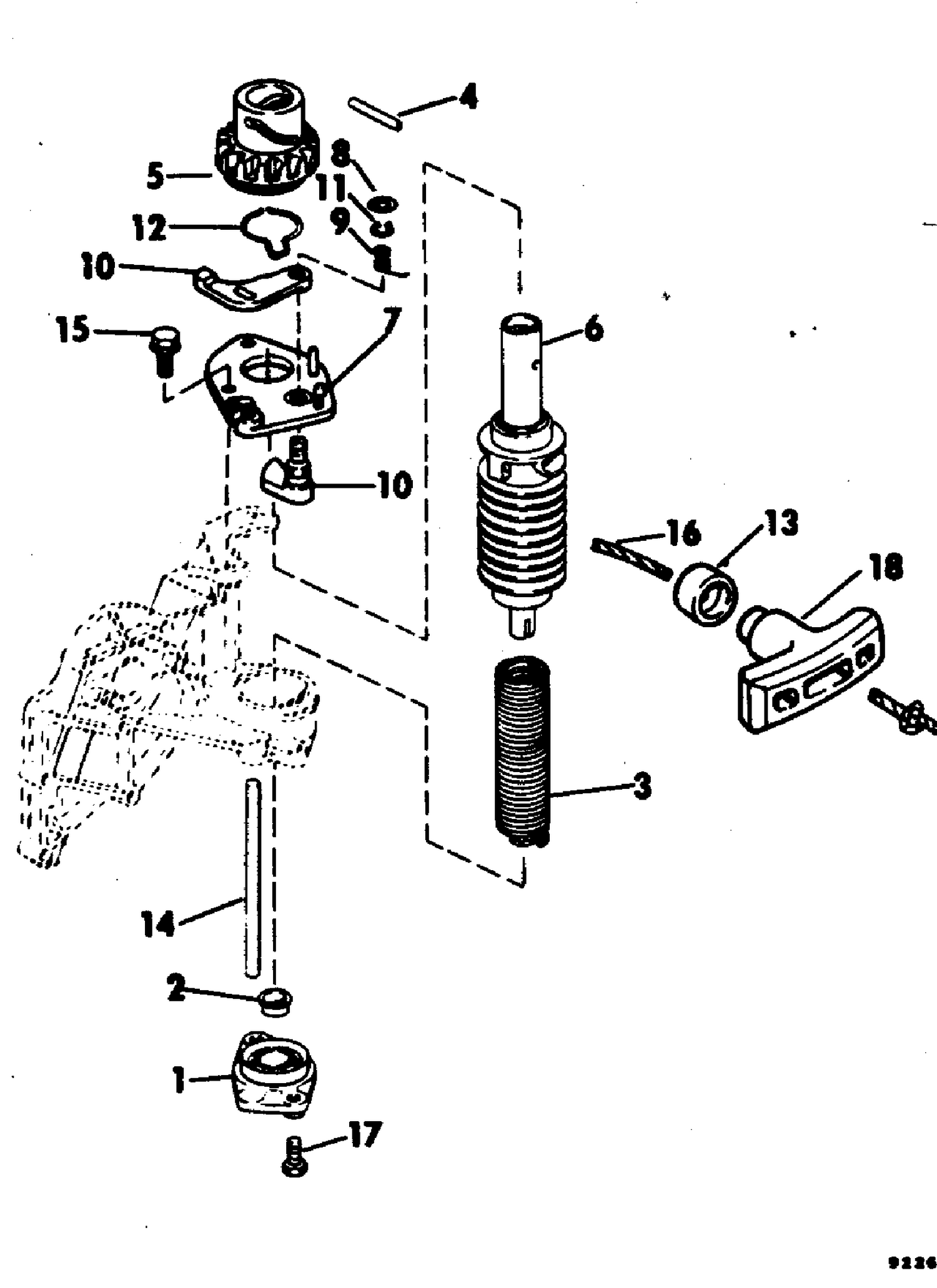

REWIND STARTER - 7.5
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0324824 | PLATE, Spring retainer |
| 2 | 0311259 | BUSHING |
| 3 | 0325496 | MAIN SPRING |
| 4 | 0309686 | ROLL PIN |
| 5 | 0318447 | PINION |
| 6 | 0326344 | SPOOL |
| 7 | 0398683 | STARTER INTERLOCK ASSY. This part replaces 0390034. |
| 10 | 0398682 | CAM FOLLOWER & LEVER This part replaces 0390035. |
| 12 | 0309736 | SPRING |
| 13 | 0325746 | BUMPER, HAND;E |
| 14 | 0311284 | GUIDE, Rope |
| 15 | 0318468 | SCRAEW, Latch to handle |
| 16 | ROPE | Ref: 17 0311762 SCREW, Hex head 0311762 |
| 0390164 | 0432661 | REWIND STARTER ASSY. This part replaces 0390164. |
