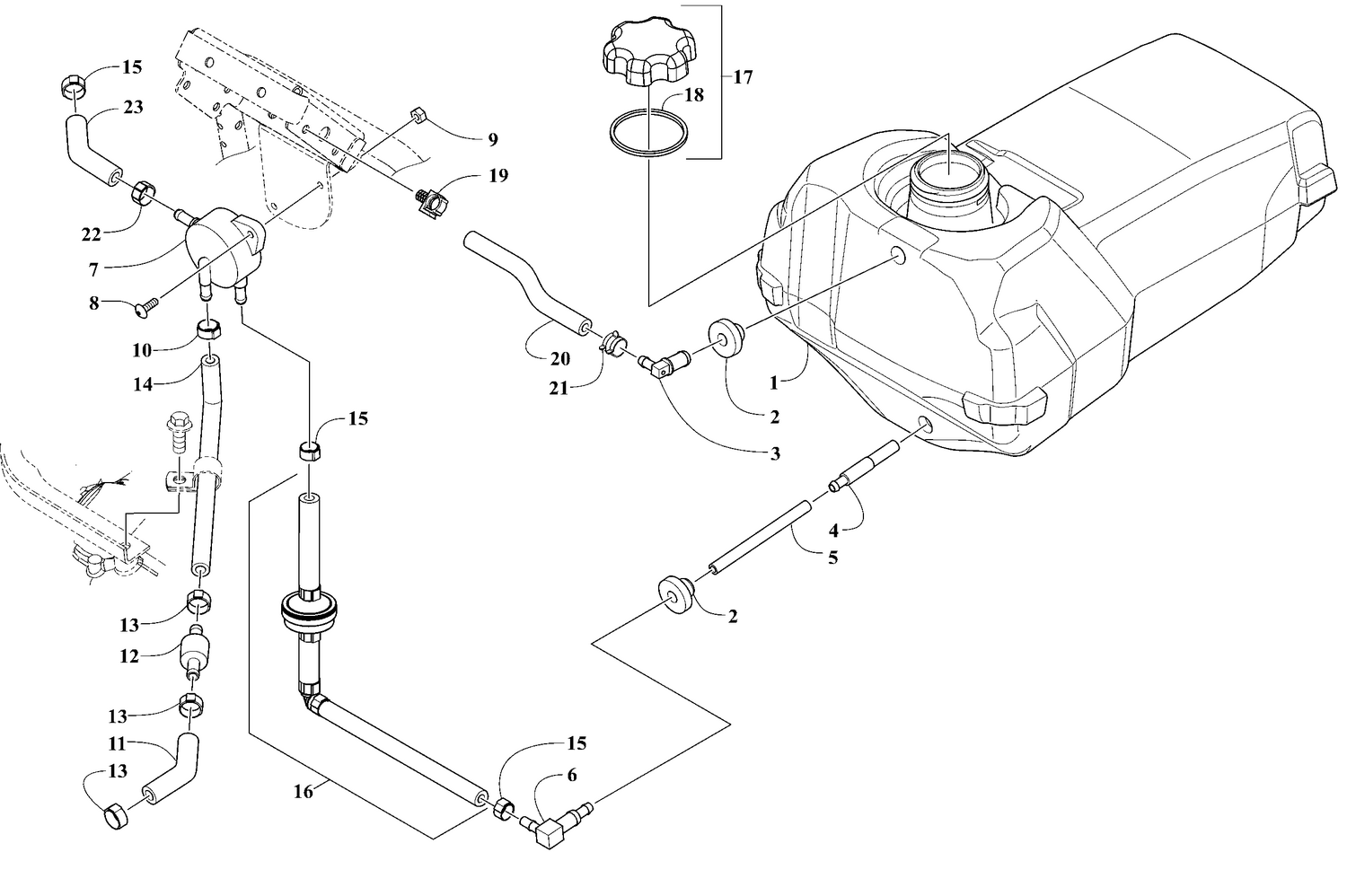

Gas Tank and Fuel Pump
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1770-211 | Fuel Tank |
| 2 | 1670-325 | Grommet 1/4" |
| 3 | 1670-494 | Raccord coudé du réservoir de carburant à 90 degrés |
| 4 | 0510-358 | Gas Tank Fuel Filter Strainer |
| 5 | 0610-814 | Hose15240mm Long |
| 6 | 0109-284 | Coude inférieur à 90 degrés du réservoir de carburant |
| 7 | 3021-826 | Fuel Pump |
| 8 | 8017-399 | Machine Screw #10-24 X 5/8 |
| 9 | 8041-246 | Hex Lock Nut #10-24 |
| 10 | 0610-419 | Oetiker Clamp |
| 11 | 1610-049 | Formed Fuel Hose 65mm |
| 12 | 3021-825 | Fuel Filter Ass'y With Hoses |
| 13 | 0610-563 | Oetiker Clamp |
| 14 | 1610-050 | Hose 7620MM Long |
| 15 | 0610-415 | Oetiker Clamp |
| 16 | 1770-299 | Fuel Hose Ass'y |
| 17 | 0470-438 | Fuel Tank Cap Ass'y |
| 18 | 0109-733 | Gas Cap Seal |
| 19 | 1623-406 | Clip |
| 20 | 6101-009 | Hose 15240MM Long |
| 21 | 1623-042 | Spring Clamp 10MM |
| 22 | 0623-373 | Gear Clamp #4 |
