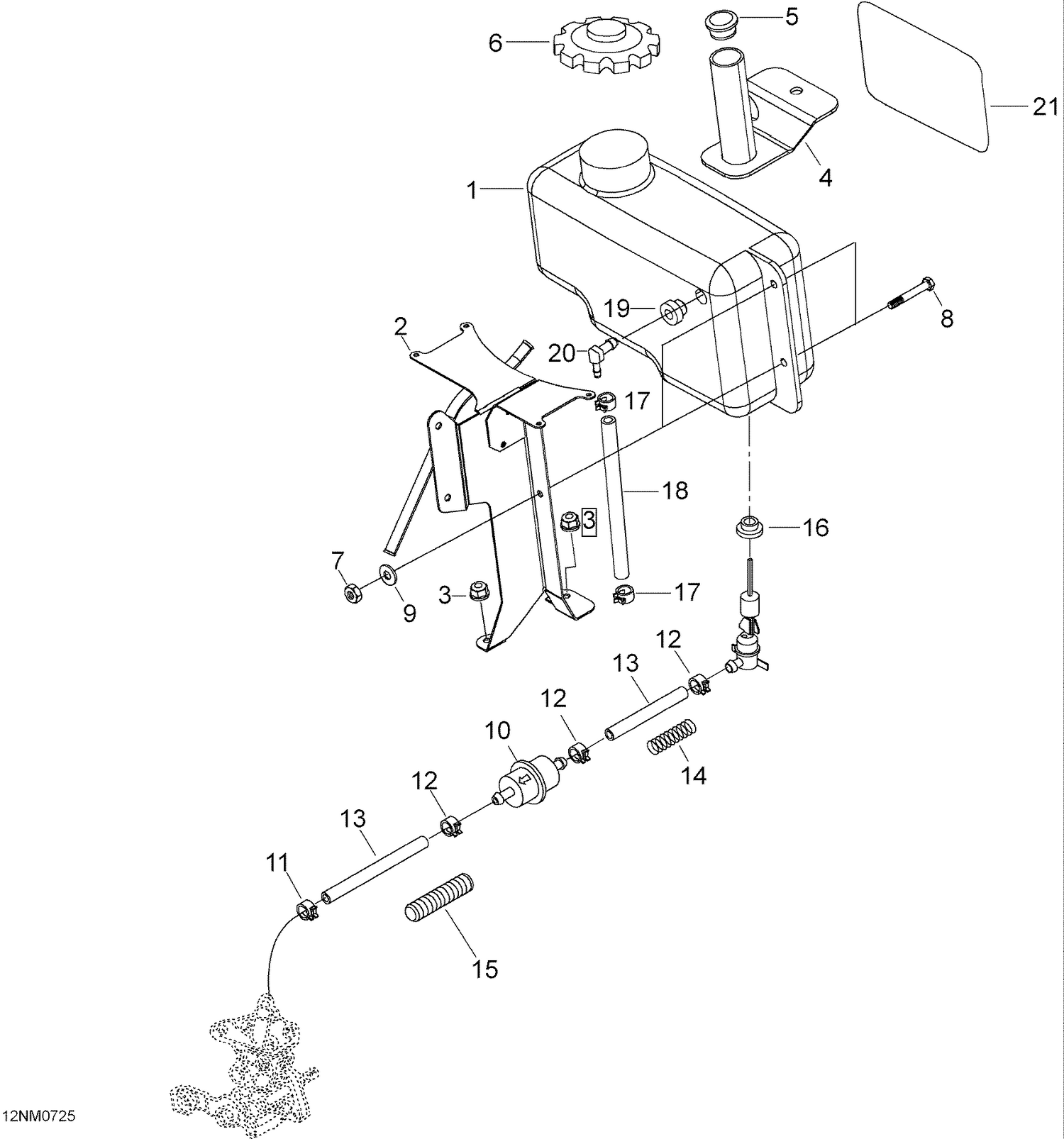

02- Oil Tank And Support
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605351449 | Oil tank |
| 2 | 605352356 | BRACKET - Call your local BRP dealership |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 4 | 605351804 | BRACKET - Call your local BRP dealership |
| 5 | 28136 | Plugg |
| 6 | 519000042 | CAP - Call your local BRP dealership |
| 7 | 33010 | Lock Nut M6 (1=10Pcs) |
| 8 | 40029 | Hex. screw M6 x 16 |
| 9 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 10 | 414536500 | Oil filter |
| 11 | 414420700 | Universal Spring Clamp |
| 12 | 414415200 | Clamp |
| 13 | 39046 | Hose |
| 14 | 519000065 | SPRING - Call your local BRP dealership |
| 15 | 28015 | Tubing |
| 16 | 570023000 | Grommet |
| 17 | 414554800 | Clamp |
| 18 | 39038 | Hose |
| 19 | 709200285 | Grommet This part replaces 570135100. |
| 20 | 414580700 | Male Connector |
