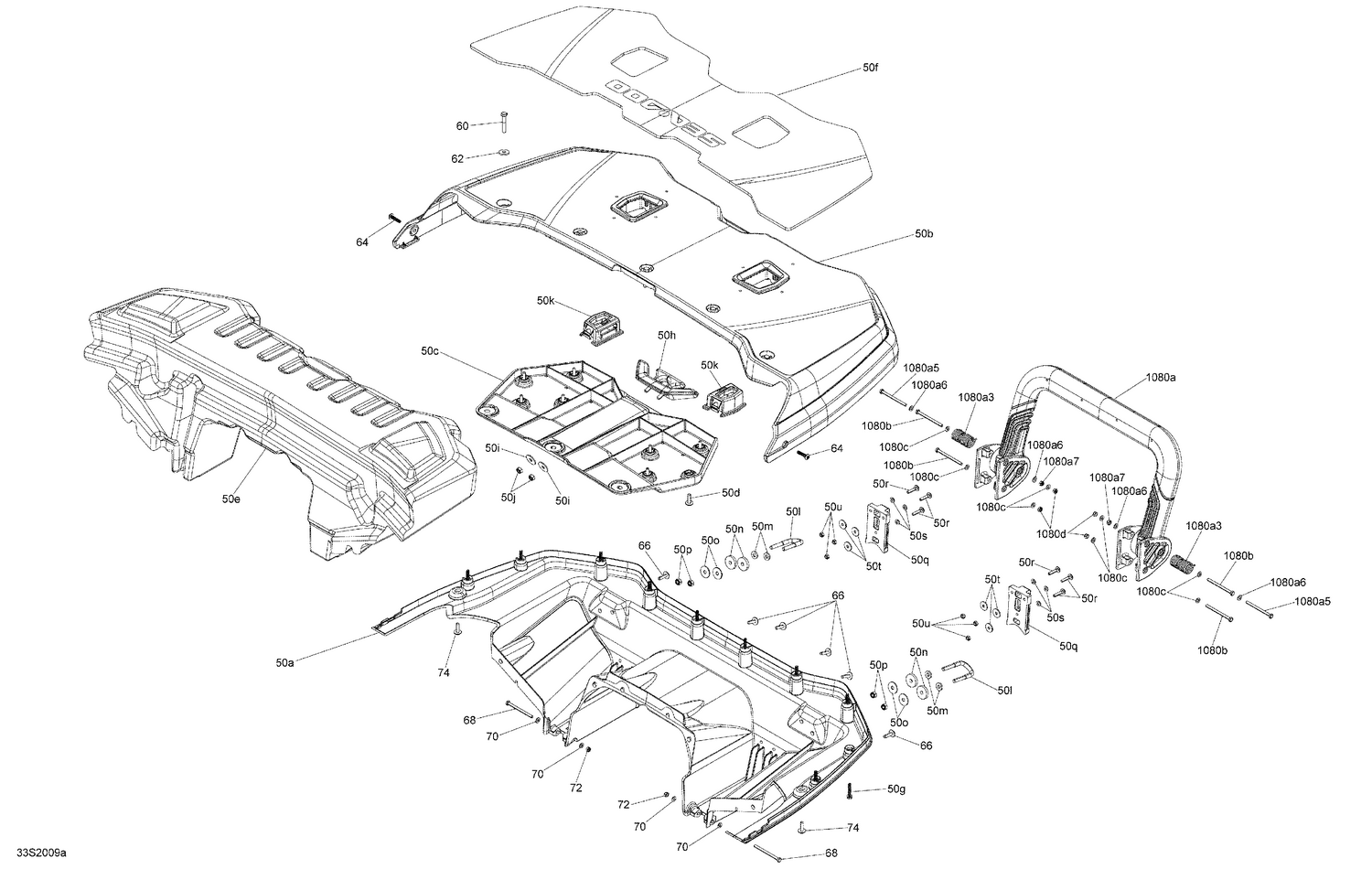

09- Hull Extension and Ladder
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 50a | 292002138 | Hull Extension |
| 50b | 292002139 | Body Extension |
| 50c | 292002140 | Reinforcement Body Extension |
| 50d | 250001070 | Hexagonal Cap Screw M6.8 X 25 |
| 50e | 292002529 | Extension Float This part replaces 292002142. |
| 50f | 292002210 | Extension Carpet |
| 50g | 243163560 | Plastite Hex. Screw M6.8 X 35 |
| 50h | 291004597 | Cleat |
| 50i | 250200175 | Flat Washer 8 mm, Stainless |
| 50j | 232581200 | Hex. Elastic Nut M8 Brass |
| 50k | 295100858 | Linq Bases Kit |
| 50l | 292000933 | U-Clamp |
| 50m | 293050001 | Flat Washer M8.5 x 18 |
| 50n | 293830037 | Rubber Washer |
| 50o | 250200175 | Flat Washer 8 mm, Stainless |
| 50p | 232581200 | Hex. Elastic Nut M8 Brass |
| 50q | 292002113 | Ladder Attachment |
| 50r | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 50s | 234061600 | Stainless Flat Washer M6 |
| 50t | 250200022 | Flat Washer M6.6 X 22 |
| 50u | 232561200 | Brass Elastic Stop Nut M6 |
| 60 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 62 | 279000336 | Flat Washer |
| 64 | 250001007 | Screw Torx M6.81 X 30 |
| 66 | 250001070 | Hexagonal Cap Screw M6.8 X 25 |
| 68 | 207068060 | Hex. Screw M6 x 80 |
| 70 | 234061600 | Stainless Flat Washer M6 |
| 72 | 232561600 | Hex. Elastic Stop Nut M6 |
| 74 | 250001070 | Hexagonal Cap Screw M6.8 X 25 |
| 1080a | 295100869 | Ladder Ass'y |
| 1080a3 | 292002107 | Spring |
| 1080a5 | 207068060 | Hex. Screw M6 x 80 |
| 1080a6 | 234061600 | Stainless Flat Washer M6 |
| 1080a7 | 232561600 | Hex. Elastic Stop Nut M6 |
| 1080b | 207068060 | Hex. Screw M6 x 80 |
| 1080c | 234061600 | Stainless Flat Washer M6 |
