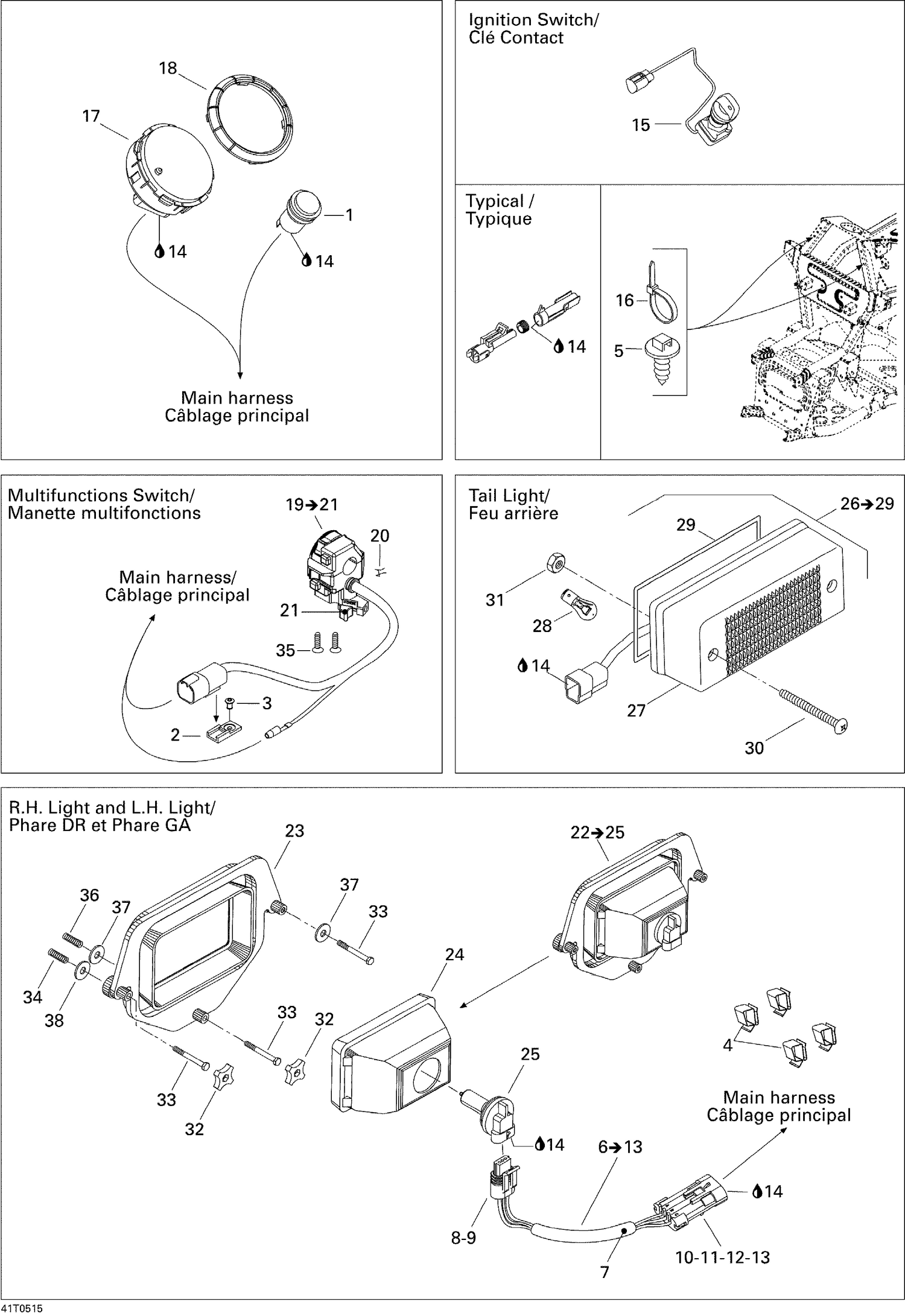

| Ref | Part Number | Description |
|---|
| 1 |
861507200 |
Outlet Power Kit, 12 Volts |
| 2 |
270000141 |
Clip |
| 3 |
390402400 |
Pop Rivet 3/16" |
| 4 |
414227300 |
Clip |
| 5 |
293730040 |
Mount Dart This part replaces 293730018. |
| 7 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 8 |
278001114 |
Female Terminal |
| 9 |
278001467 |
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 10 |
710000643 |
Seal |
| 11 |
710000642 |
Lock |
| 12 |
Not |
Available As Spare Part - Terminal |
| 13 |
Not |
Available As Spare Part - PT Housing (3 Circuits) |
| 14 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 15 |
710000101 |
BLANK KEY (B TYPE) - Call your local BRP dealership |
| 15 |
710000137 |
BLANK KEY (A TYPE) - Call your local BRP dealership |
| 15 |
710000192 |
Ignition Switch Ass'y |
| 16 |
293750002 |
Tie Wrap 142 mm |
| 16 |
293750008 |
Tie Wrap 368 mm |
| 16 |
414115200 |
Tie-Rap 180 mm |
| 17 |
710000674 |
Speedometer |
| 18 |
710000353 |
TRIM RING - Call your local BRP dealership |
| 20 |
710000631 |
CLIP - Call your local BRP dealership |
| 21 |
710000632 |
CHOKE LEVER - Call your local BRP dealership |
| 23 |
705000283 |
LAMP SUPPORT - Call your local BRP dealership |
| 24 |
705000284 |
LAMP HOUSING - Call your local BRP dealership |
| 25 |
710000176 |
BULB - Call your local BRP dealership |
| 27 |
710000055 |
TAIL LIGHT LENS, RED - Call your local BRP dealership |
| 28 |
520000758 |
Bulb This part replaces 410504100. |
| 29 |
710000129 |
GASKET - Call your local BRP dealership |
| 30 |
208656091 |
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership |
| 31 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 32 |
572106600 |
Handle |
| 33 |
250000008 |
HEX. SCREW K40 X 40 - Call your local BRP dealership |
| 34 |
710000285 |
SPRING - Call your local BRP dealership |
| 35 |
205053588 |
Socket Head Screw M5 X 35 |
| 36 |
517168600 |
Spring |
| 37 |
234042600 |
Flat Washer 4 mm, Stainless |
