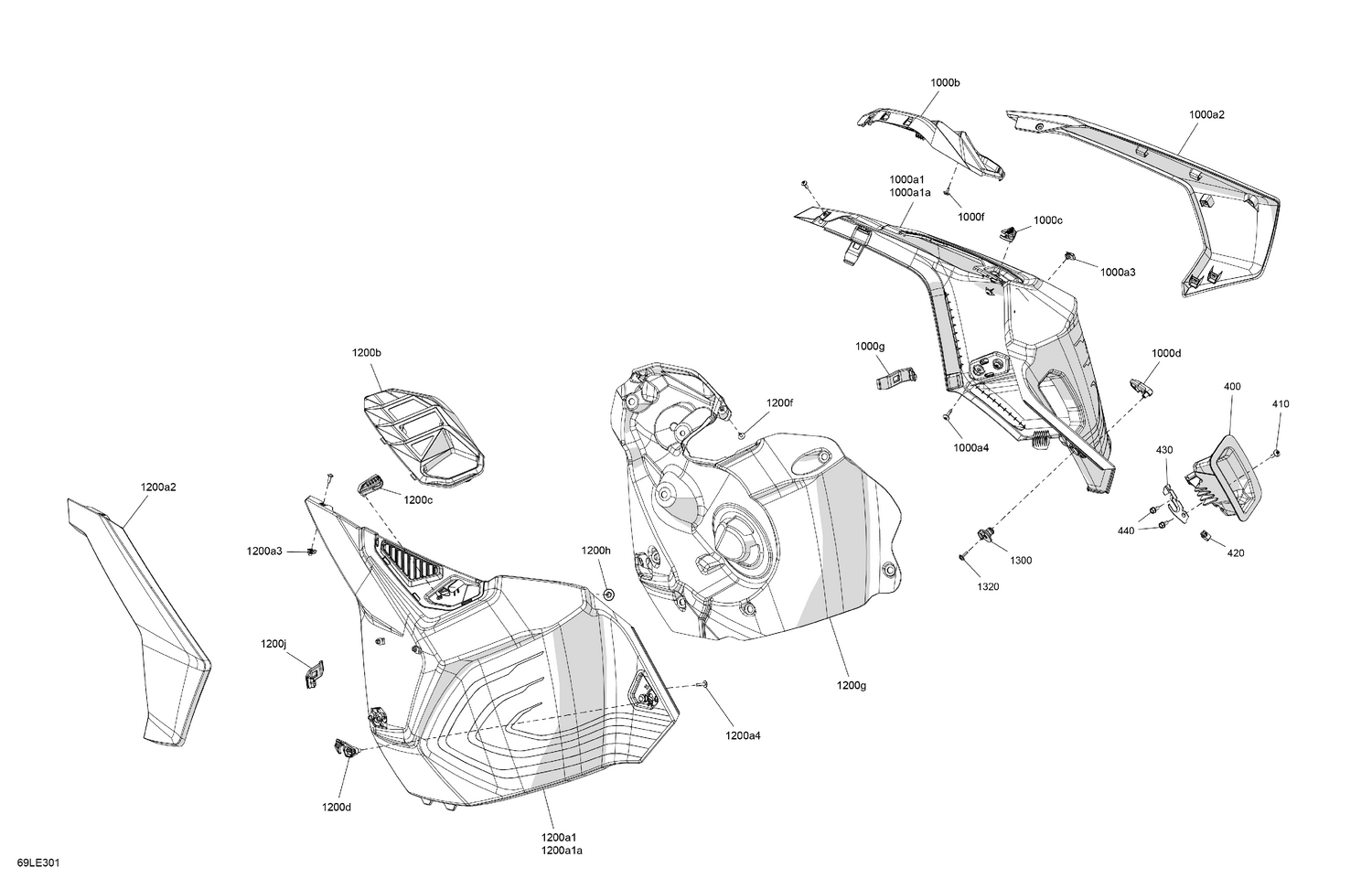

07- Body - Side Panels
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 400 | 517306759 | RH Console |
| 410 | 250000586 | Torx Truss M5 X 20 |
| 420 | 250000958 | Panel Nut M5 X 0.8 |
| 430 | 517306315 | Rope Guide |
| 440 | 210261250 | Hex. Flanged Screw M6 X 12 |
| 1000a1a | 517309052 | RH Panel |
| 1000a2 | 517307839 | Viper Red, RH Air Deflector |
| 1000a3 | 250000958 | Panel Nut M5 X 0.8 |
| 1000a4 | 250000528 | Torx Screw M5 X 20 |
| 1000b | 517308183 | Deep Black, RH Grille Trim |
| 1000c | 517305773 | RH Rear Latch |
| 1000d | 517306320 | RH Rear Latch |
| 1000f | 250000805 | Plastite Screw M4 X 10 |
| 1000g | 517306811 | Rubber Latch |
| 1200a1a | 517308734 | Deep Black, LH Panel |
| 1200a2 | 517307855 | Viper Red, LH Air Deflector |
| 1200a3 | 250000958 | Panel Nut M5 X 0.8 |
| 1200a4 | 250000528 | Torx Screw M5 X 20 |
| 1200b | 517308649 | Deep Black, LH Grille Trim |
| 1200c | 517305774 | LH Rear Latch |
| 1200d | 517306325 | LH Rear Latch |
| 1200f | 250000805 | Plastite Screw M4 X 10 |
| 1200g | 517308109 | LH Acoustic Panel |
| 1200h | 508000853 | Push Nut |
| 1200j | 517306811 | Rubber Latch |
| 1300 | 517305985 | Rear Stud |
