Home / BRP / STERN DRIVE / 1998 / 4.30 / 432BPBYC 1998 / INTAKE MANIFOLD & FUEL SYSTEM -- TBI MODELS

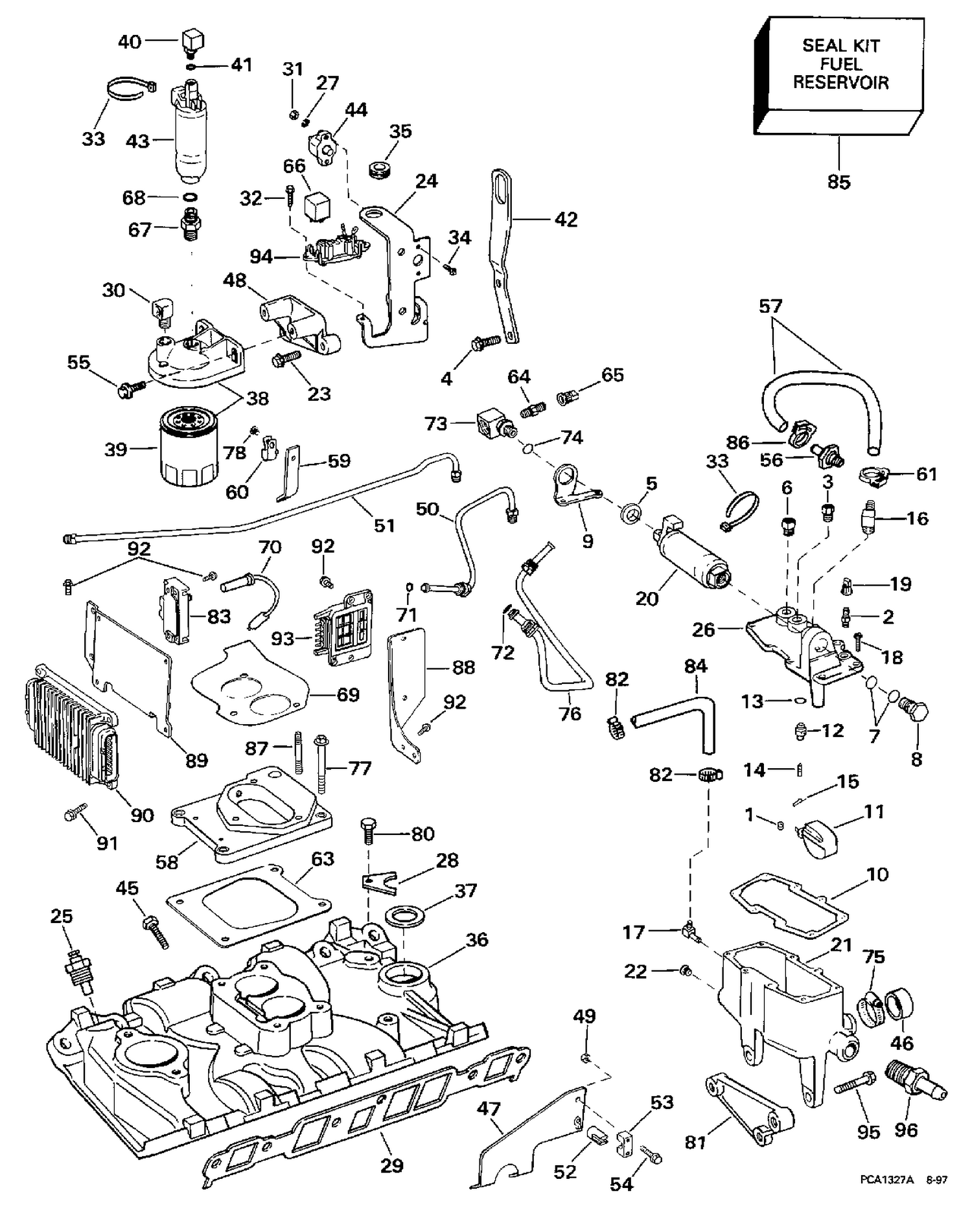

INTAKE MANIFOLD & FUEL SYSTEM -- TBI MODELS

INTAKE MANIFOLD & FUEL SYSTEM -- TBI MODELS

Parts (80)

RefPart NumberDescription
1 0203363 RETAINER This part replaces 3852034.
2 3854152 VALVE, Pressure
3 3852462 FITTING, Cover, return line
4 3853557 SCREW, Brace to alterntr bracket
5 0909988 BUSHING, Tilt & trim cable This part replaces 3852481.
6 3852462 FITTING, Cover, return line
7 3853642 O-RING, Retainer, fuel pump
8 3853572 RETAINER, Fuel pump to cover
9 3853573 BRACKET, Fuel pump grommet
10 3857728 GASKET, Cover, reservoir
11 3853575 FLOAT
12 3853576 SEAT, Float needle
13 3853577 GASKET, Float needle seat
14 0915883 NEEDLE, Float This part replaces 3853578.
15 3853579 CLIP, Needle to float
16 3853597 ELBOW, Vent, reservoir to intake
17 0174177 ELBOW KIT This part replaces 3852480.
18 3853606 SCREW, Cover to reservoir
20 3857650 FUEL PUMP, High pressure
21 3854149 RESERVOIR ASSY.
23 3853326 SCREW, Bracket to engine
24 3856438 BRACKET, Fuel filter & pump
25 3852029 SENDER, Water temperature
26 3854405 COVER, Reservoir
28 3852108 CLAMP, Distributor
29 3855807 GASKET SET, Intake manifold
30 3852013 ELBOW, Filter inlet
33 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158.
34 3853620 SCREW, Circuit breaker
35 0909988 BUSHING, Tilt & trim cable This part replaces 3852481.
36 3855806 INTAKE MANIFOLD
37 0312780 GASKET, Dist. to manifold This part replaces 3852109.
38 3850861 COVER & FUEL FILTER ASSY
39 5012363 Filter Ay This part replaces 0502906.
40 3853545 FITTING, Fuel pump
41 3850820 O-RING
42 3853311 BRACKET, Lift
43 3857986 FUEL PUMP ASSY.
44 3854163 CIRCUIT BREAKER, 20A Fuel pump
45 3856765 BOLT, Intake manifold
46 3852476 CAP, Manifold
47 3860809 Bracket This part replaces 3855509.
48 3853310 BRACKET, Fuel filter
50 3854773 LINE, TBI to reservoir
51 3854774 LINE, Fuel pump to reservoir
52 3852019 TRUNNION, S.A.E. Cable
53 3850266 ANCHOR BLOCK
54 0303459 ECREW,Exhaust cover,1-1/2"long This part replaces 3852048.
55 3853326 SCREW, Bracket to engine
57 3854870 HOSE, Vent reservoir to intake
58 3850039 ADAPTER, Intake manifold
59 3855511 BRACKET, Fuel line
60 0511514 CLAMP, Cable This part replaces 3852231.
62 3855190 O-RING, Regulator
63 3850405 CAP, Distributor plug
64 3854152 VALVE, Pressure
67 3853493 FITTING, Filter outlet to pump
69 3850355 GASKET, Throttle body
70 HOSE, MAP sensor
71 3850423 O-RING, 5/16 in.
72 3850424 O-RING, 3/8 in.
73 3854924 FITTING
74 3850820 O-RING
75 0912627 CLAMP This part replaces 3852602.
76 3854775 LINE, Pump to TBI
77 3852008 SCREW, Adapter
79 3853399 SCREW, Brace to alternator
80 3856129 BOLT, Intake manifold, short
81 3854763 BRACKET, Reservoir
82 3853794 CLAMP, Anti-siphon hose
83 3850396 SENSOR, Manifold air pressure
84 3852335 HOSE, Tee to high rise
85 3850374 SEAL KIT, Fuel reservoir
87 3860812 Stud This part replaces 3852160.
88 3850272 BRACKET, Knock module
89 3851990 BRACKET, PCM & knock module
90 3857324 MODULE, PCM
91 3858847 Water Pump Ay This part replaces 3855778.
93 3854672 MODULE, Knock
95 3853558 BOLT, Bracket to head
