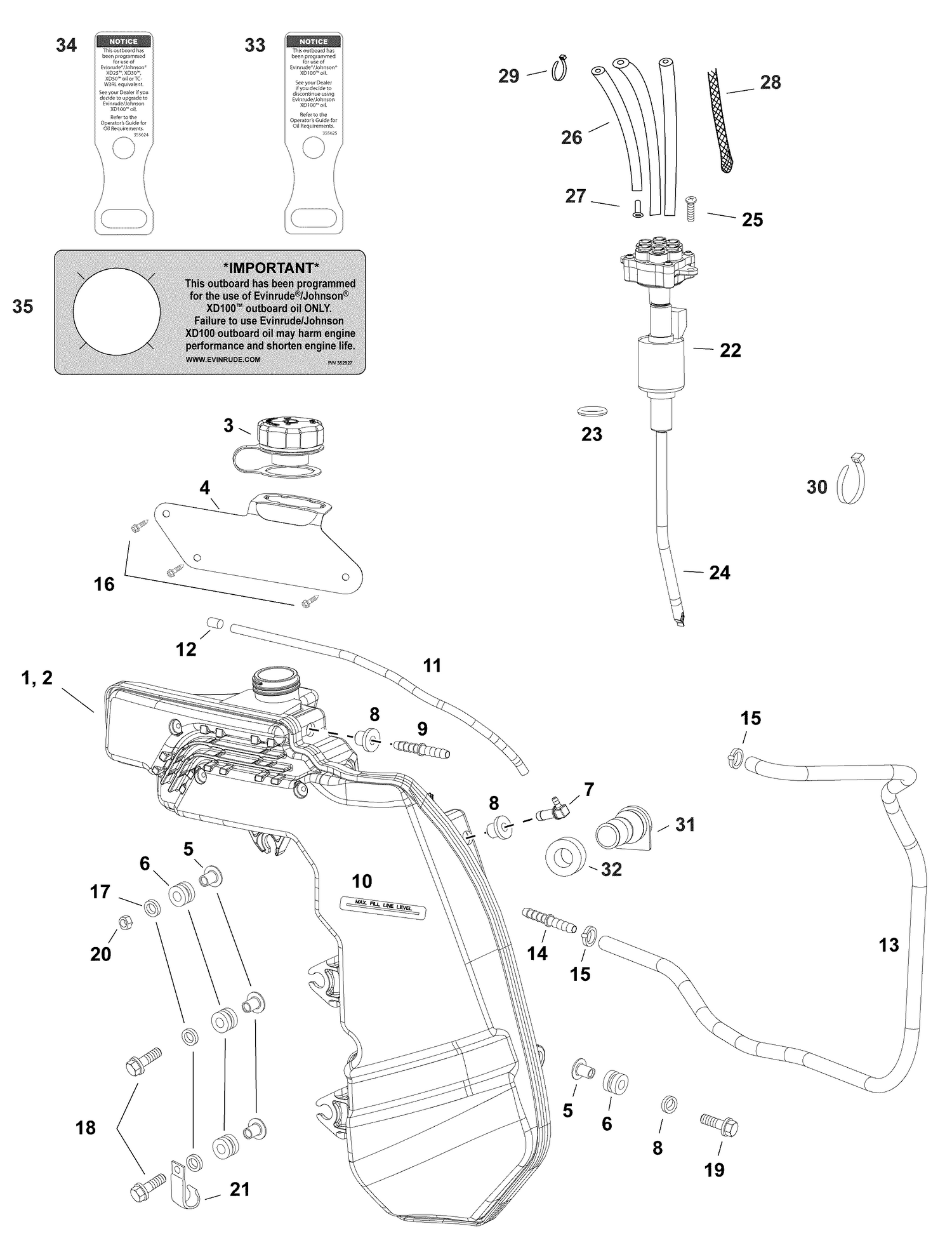

03-6_OIL TANK & PUMP (Pontoon Series)
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5009146 | OIL TANK ASSEMBLY |
| 12 | 0328074 | CACHE, cosse prise |
| 13 | 0357238 | HOSE, Fill from remote tank |
| 14 | 0358042 | FITTING, Fuel hose This part replaces 0349008. |
| 18 | 0325115 | SCREW, Oil tank/EMM mount |
| 19 | 0341011 | SCREW, Adapter to housing, outer |
| 22 | 5007915 | PUMP & MANIFOLD Assembly. |
| 30 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 33 | 0355625 | EMM Oil program tag, XD 100 oil |
