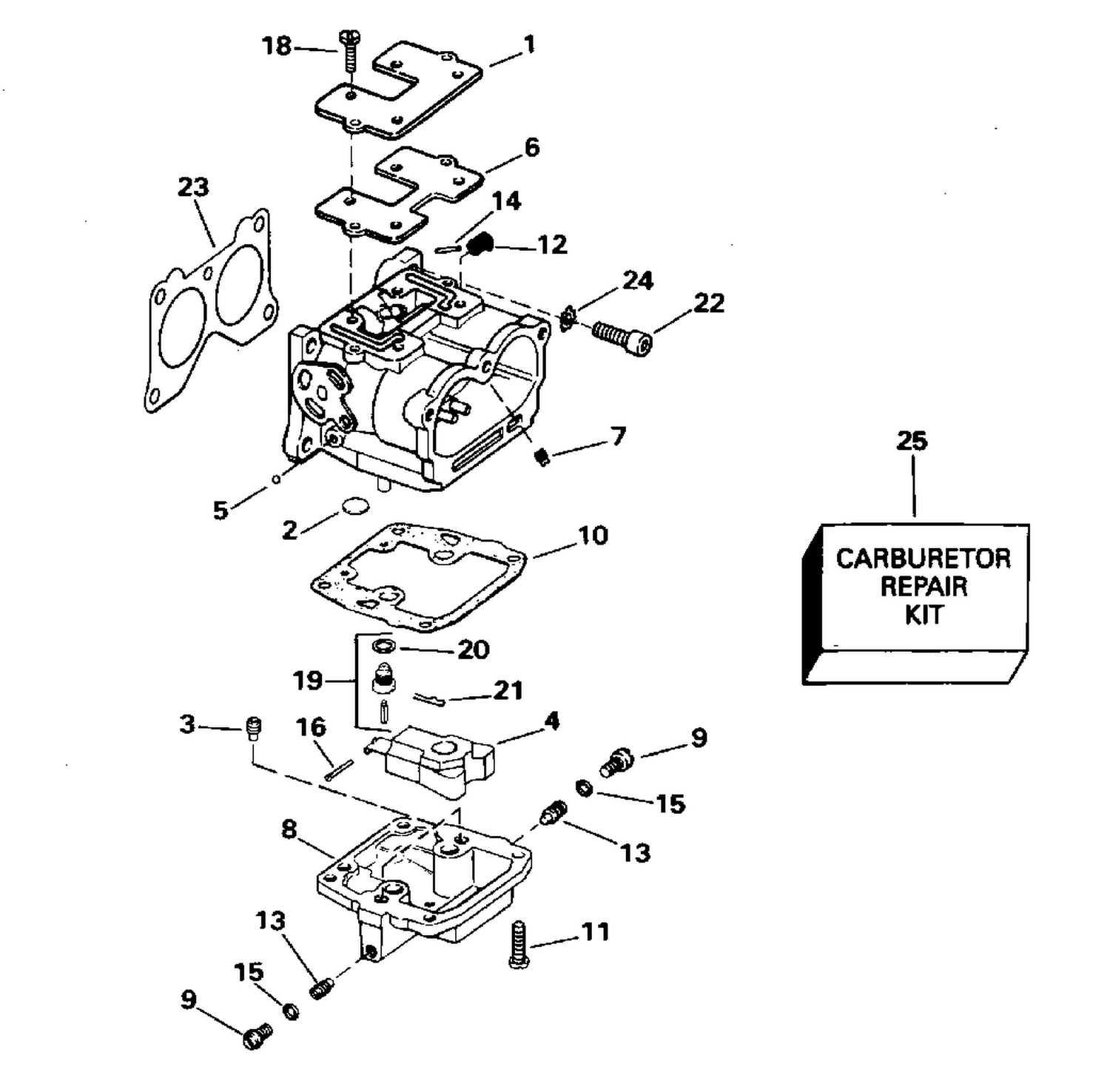

CARBURETOR
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0334352 | COVER, Idle channel |
| 3 | 0328549 | ORIFICE, #24, 90 |
| 4 | 0383437 | FLOAT ASSEMBLY |
| 6 | 0334353 | GASKET, Cover |
| 8 | 0436468 | FLOAT CHAMBER ASSY. |
| 9 | 0330131 | CLAMP, Fuel filter |
| 10 | 0338884 | GASKET, Float bowl |
| 13 | 0317021 | ORIFICE PLUG (57C) |
| 13 | 0317183 | ORIFICE PLUG |
| 18 | 0333750 | SCREW, Cover |
| 21 | 0336842 | CLIP, SPRING |
| 22 | 0203023 | SCREW, Bracket to upper carb. |
| 23 | 0327707 | GASKET, Air silencer |
| 0436463 | 0436463 | CARB. ASSY., 90 models |
| 0436464 | 0438873 | CARBURETOR ASSY. This part replaces 0436464. |
