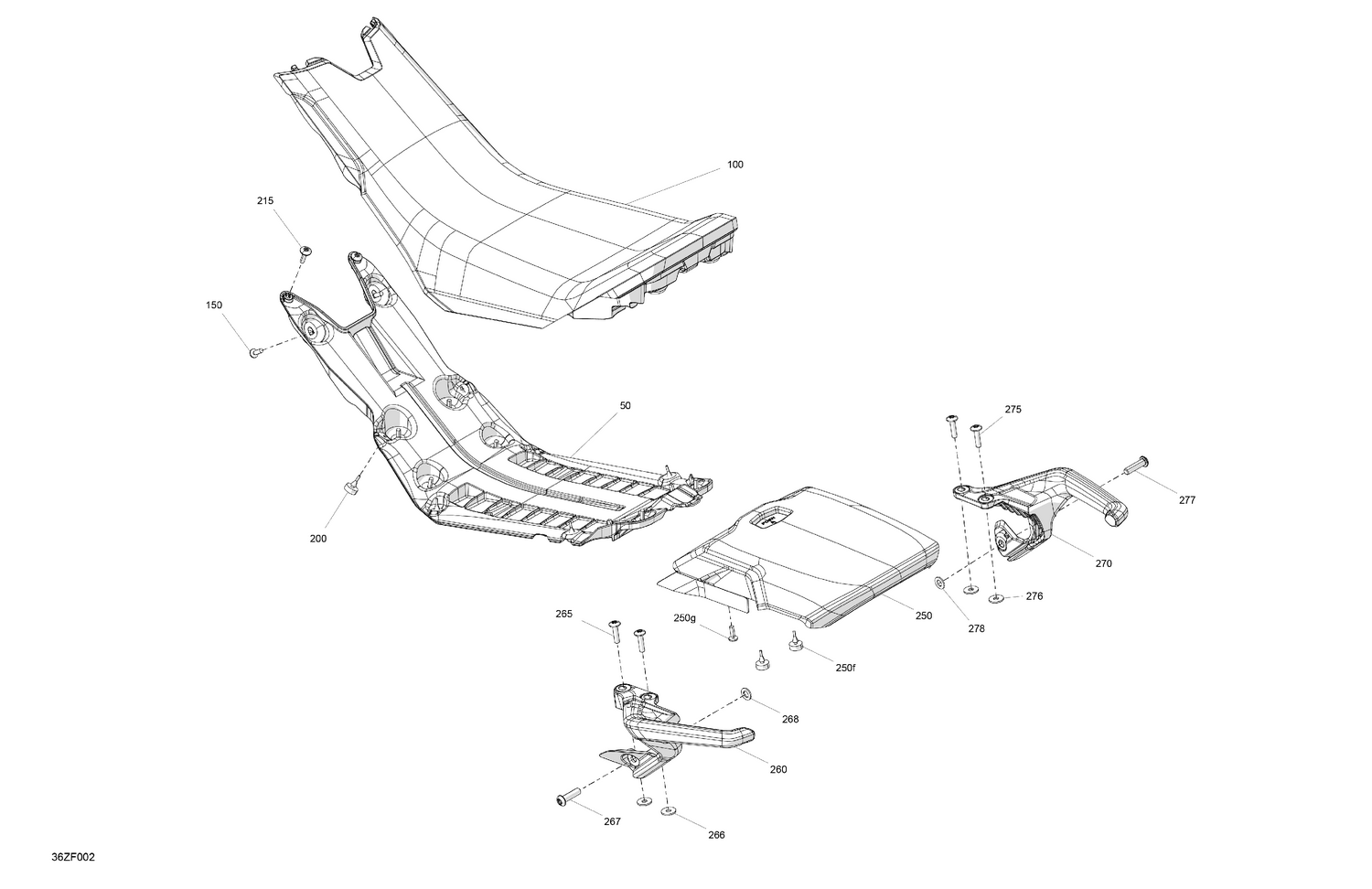

07- Body - Seat
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 708003287 | Driver Seat Base |
| 100 | 708003288 | Seat Driver Foam |
| 150 | 250000720 | Torx Screw K50 X 16 |
| 200 | 708003866 | Seat Stopper |
| 215 | 250000895 | Torx-Truss M/S M5X20 |
| 250f | 708003866 | Seat Stopper |
| 250g | 250000720 | Torx Screw K50 X 16 |
| 260 | 708003952 | LH Passenger Handle |
| 265 | 250001000 | Torx-Truss M/S M6 X 25 |
| 266 | 234062670 | Stainless Steel Flat Washer |
| 267 | 250001377 | Screw Torx Button Head M8 X 30 |
| 268 | 250200197 | Flat Washer 8 Mm |
| 270 | 708003953 | RH Passenger Handle |
| 275 | 250001000 | Torx-Truss M/S M6 X 25 |
| 276 | 234062670 | Stainless Steel Flat Washer |
| 277 | 250001377 | Screw Torx Button Head M8 X 30 |
