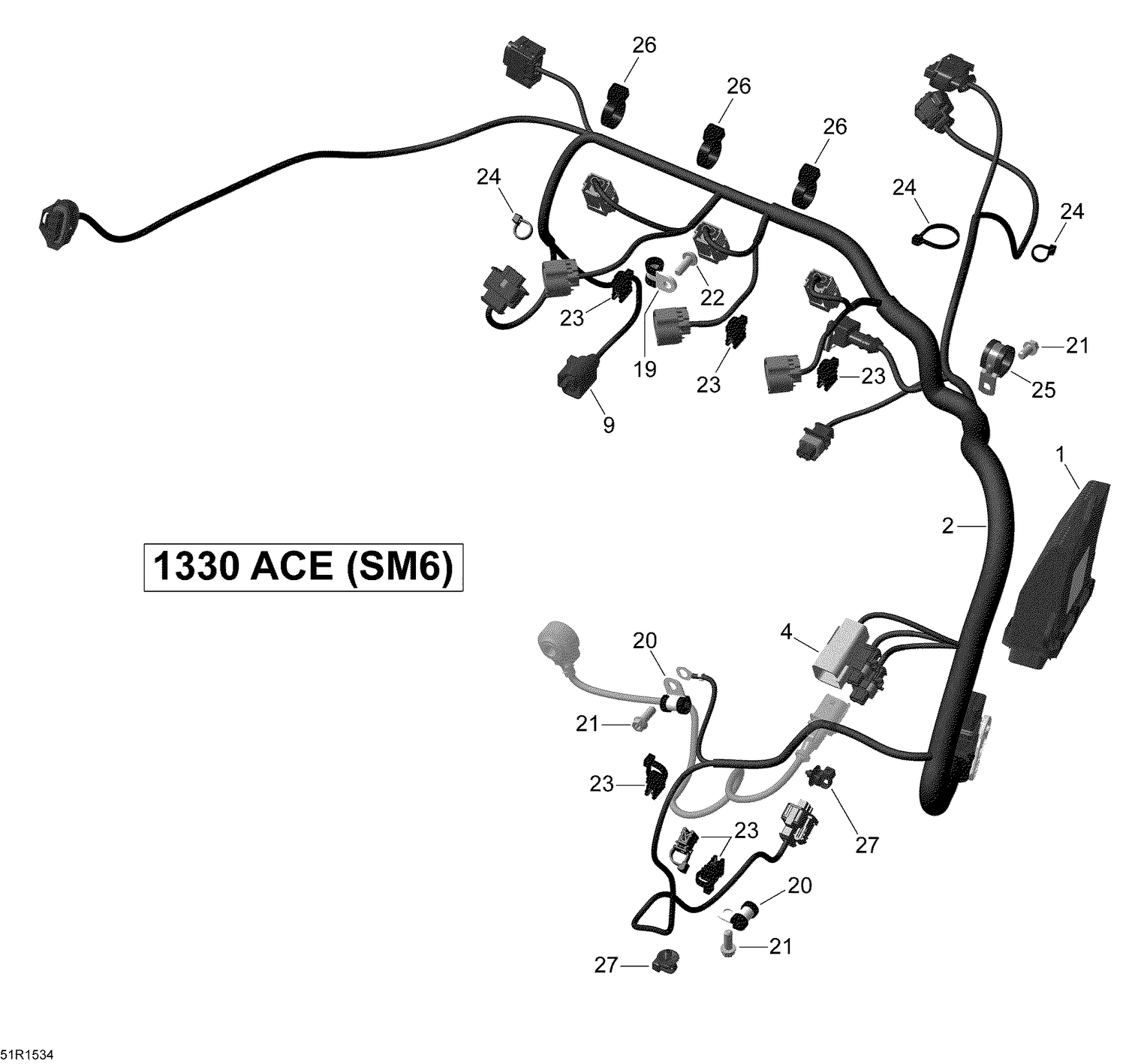

10- Engine Harness And Electronic Module _51R1534
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420666064 | Electronic Module Programmable This part replaces 420666642. |
| 4 | 710001539 | Male Terminal Housing, 6 Circuits |
| 9 | 710001184 | Housing |
| 19 | 414176000 | Open Clamp |
| 20 | 420853414 | Clamp |
| 21 | 420440147 | Hex. Flange Screw M6 X 12 |
| 22 | 420641588 | Torx Flange Screw M6 X 16 |
| 23 | 420951650 | Cable Clamp 150mm |
| 24 | 420866714 | Tie Rap |
| 25 | 420851493 | Cable Clamp |
| 26 | 420866716 | Tie-Rap |
