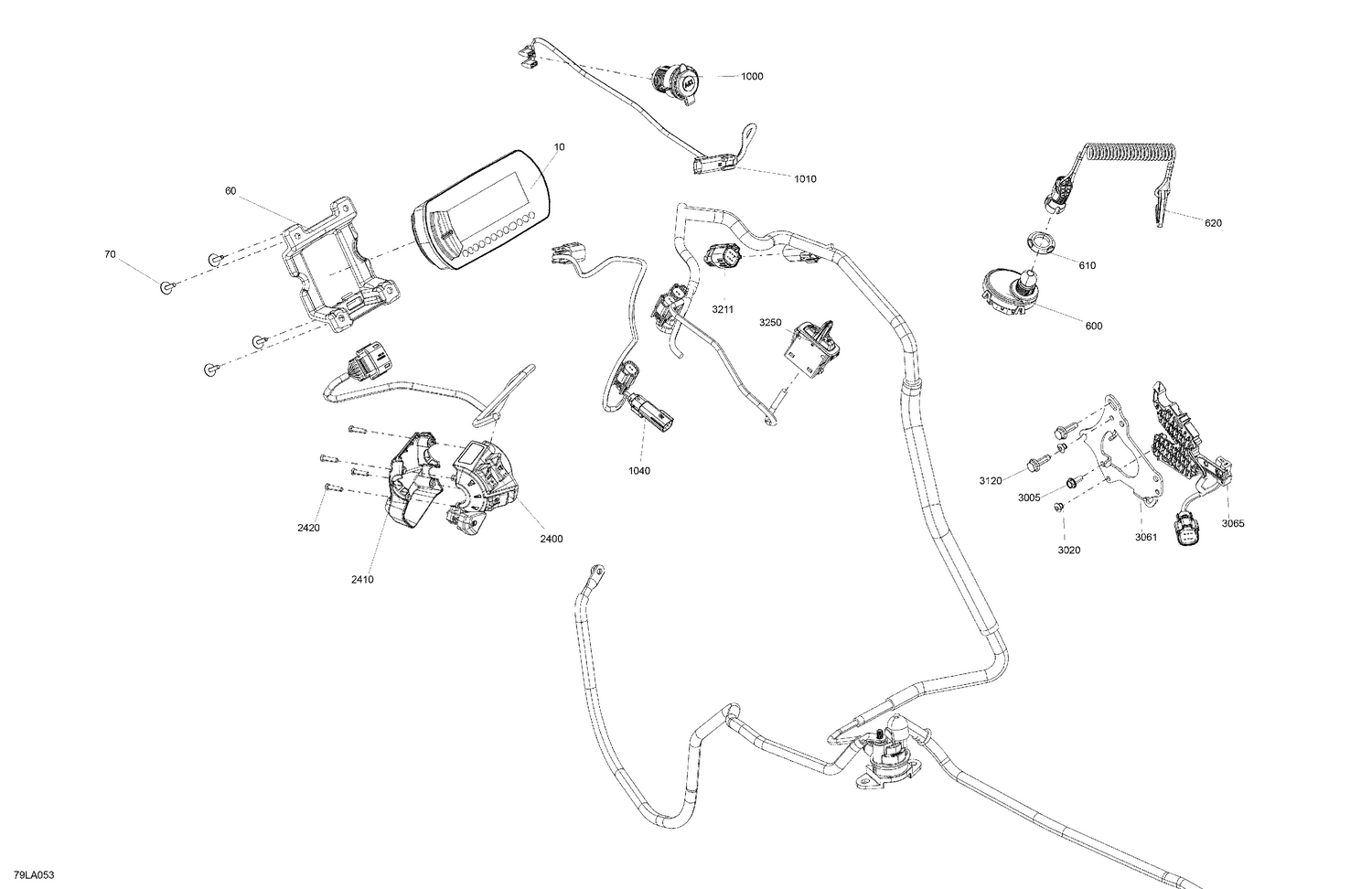

08- Electric - Upper Section
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178226 | Multifunction Gauge Full Size Color |
| 60 | 515178450 | Housing |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 515178840 | Terminal Dess One-Wire |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178288 | Key |
| 1000 | 710001248 | Pistoke, virran ulosotto |
| 1010 | 515178190 | Harness |
| 2400 | 515178102 | LH Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 3005 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 3020 | 390402200 | Pop Rivet 3/16 |
| 3061 | 515178940 | Stop Plate |
| 3065 | 515178942 | Reverse Wiring Harness |
| 3120 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 3211 | 515178202 | Connector Coil |
| 3250 | 515178501 | Rocket Switch |
