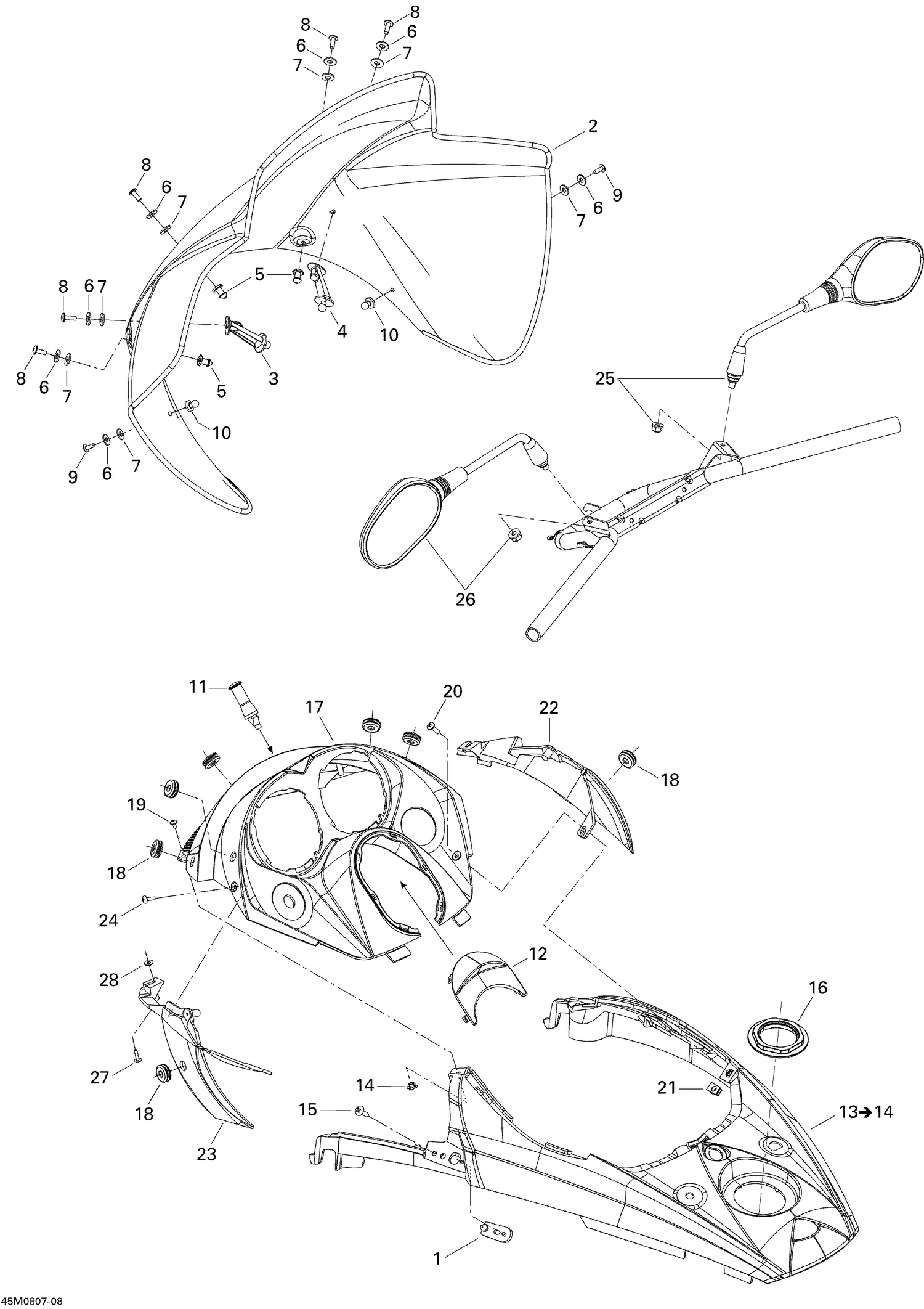

| Ref | Part Number | Description |
|---|
| 1 |
517302616 |
HOOD LATCH - Call your local BRP dealership |
| 2 |
517303247 |
HIGH WINDSHIELD - Call your local BRP dealership |
| 3 |
517303214 |
LH WINDSHIELD SUPPORT - Call your local BRP dealership |
| 4 |
517303215 |
RH WINDSHIELD SUPPORT - Call your local BRP dealership |
| 5 |
517303439 |
Knob |
| 6 |
250200025 |
Washer M5 |
| 7 |
250200024 |
Rubber Washer 5 mm |
| 8 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 9 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. |
| 10 |
517245800 |
Knob |
| 11 |
517303197 |
WINDSHIELD SUPPORT - Call your local BRP dealership |
| 12 |
517302592 |
CONSOLE CAP - Call your local BRP dealership |
| 14 |
250100030 |
T-NUT, M4 - Call your local BRP dealership |
| 15 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 16 |
517302575 |
CONSOLE NUT - Call your local BRP dealership |
| 17 |
517303470 |
INDICATOR SUPPORT - Call your local BRP dealership |
| 18 |
517307161 |
Grommet This part replaces 517302841. |
| 19 |
250000127 |
Torx Screw M4 X 8 |
| 20 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
| 21 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 22 |
517303413 |
RH AIR DEFLECTOR - Call your local BRP dealership |
| 23 |
517303414 |
LH AIR DEFLECTOR - Call your local BRP dealership |
| 24 |
250000759 |
Torx Truss Pt K40 X 16 This part replaces 250000294. |
| 25 |
517303629 |
RH MIRROR ASS'Y - Call your local BRP dealership |
| 26 |
517303630 |
LH MIRROR ASS'Y - Call your local BRP dealership |
| 27 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
