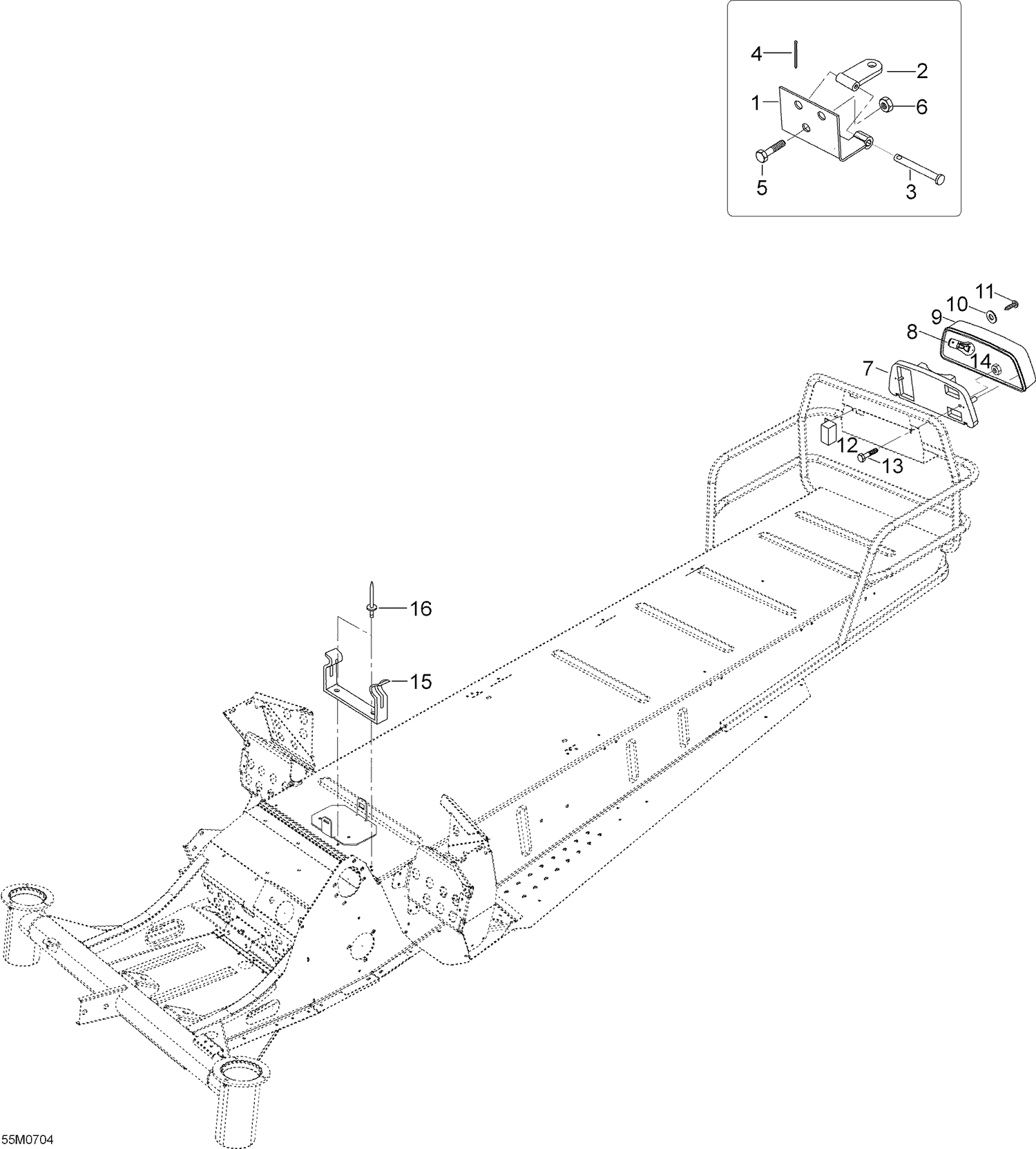

| Ref | Part Number | Description |
|---|
| 1 |
M5346638 |
Plate |
| 2 |
548745 |
TONGUE WELD - Call your local BRP dealership This part replaces M548745. |
| 3 |
560309200 |
PIN-RETAINER - Call your local BRP dealership |
| 4 |
41031 |
Cotter Pin This part replaces M41031. |
| 5 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336. |
| 6 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 7 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership |
| 8 |
520000758 |
Bulb This part replaces 410504100. |
| 9 |
414513700 |
Lens |
| 10 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 11 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 12 |
605448415 |
PROTECTION PLATE - Call your local BRP dealership |
| 13 |
207063044 |
Hex. Screw M6 X 30 |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 15 |
M5346204 |
Support |
