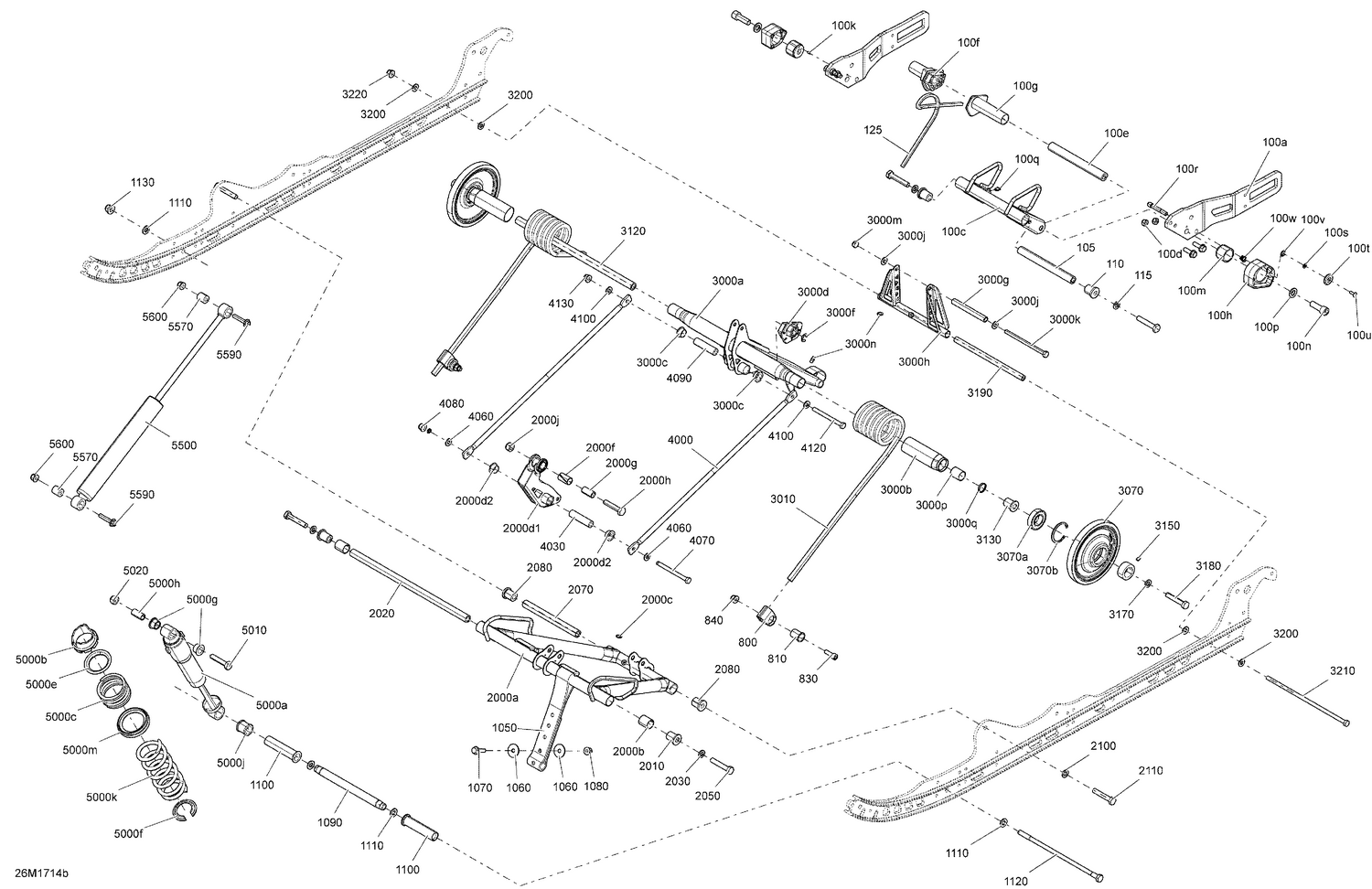

08- Rear Suspension - Superior - All Models
Parts (107)
| Ref | Part Number | Description |
|---|---|---|
| 100a | 503195759 | Black, RH Pivot Support Long This part replaces 503193970. |
| 100a | 503195760 | Black, LH Pivot Support Long This part replaces 503193969. |
| 100c | 503192647 | Runner Pivot |
| 100d | 232581414 | Hex. Elastic Stop Nut M8 |
| 100e | 503191608 | Cam Axle |
| 100f | 503191190 | RH Spring Cam |
| 100g | 503191668 | LH Spring Cam |
| 100h | 503192426 | LH Block |
| 100h | 503192427 | RH Block |
| 100k | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 100m | 503189488 | Block Guide |
| 100n | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 100p | 503189148 | Washer |
| 100q | 408200700 | Grease Fitting |
| 100r | 503192437 | Rode |
| 100s | 234051410 | Flat Washer M5 |
| 100t | 503192438 | Handle |
| 100u | 250000742 | Torx Screw M5 X 14 |
| 100v | 293370068 | Circlip |
| 100w | 503192436 | Compression Spring |
| 105 | 503191279 | Lower Shaft |
| 110 | 503189324 | Bushing |
| 115 | 503192496 | Washer |
| 120 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 125 | 503194624 | Spring This part replaces 503192282. |
| 800 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 810 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 1050 | 503192360 | Stopper Strap |
| 1060 | 250200128 | Flat Washer 8 mm |
| 1070 | 207683044 | Hex. Flange Screw M8 X 30 |
| 1080 | 233281466 | Elastic Flange Nut M8 |
| 1090 | 503193435 | Pivot Axle |
| 1100 | 503191259 | Center Bushing |
| 1110 | 250200143 | Flat Washer |
| 1120 | 503193227 | Bolt M10 X 251MM |
| 1130 | 233201466 | Flange Elastic Nut M10 |
| 2000a | 503191752 | Front Arm |
| 2000b | 503191556 | Extended Bushing |
| 2000c | 408200700 | Grease Fitting |
| 2000d1 | 503192211 | Rocker |
| 2000e | 503191555 | Swivel Bushing |
| 2000f | 503193037 | Bushing |
| 2000g | 503189282 | Bushing |
| 2000h | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 2000j | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 2010 | 503191262 | Bushing |
| 2020 | 503191215 | Upper Shaft |
| 2030 | 503192496 | Washer |
| 2050 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 2070 | 503191279 | Lower Shaft |
| 2080 | 503189324 | Bushing |
| 2100 | 250200143 | Flat Washer |
| 2110 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 3000a | 503191762 | Rear Arm |
| 3000b | 572080700 | Bushing |
| 3000c | 503191555 | Swivel Bushing |
| 3000d | 503191565 | LH Cam Adjuster |
| 3000d | 503191566 | RH Cam Adjuster |
| 3000f | 293370013 | E-Circlip |
| 3000g | 503144300 | Upper Axle, Pivot Arm |
| 3000h | 503191209 | Pivot Arm |
| 3000j | 503189157 | Washer |
| 3000k | 732601197 | Bolt M8, Short |
| 3000m | 232581414 | Hex. Elastic Stop Nut M8 |
| 3000n | 408200700 | Grease Fitting |
| 3000p | 503191556 | Extended Bushing |
| 3000q | 503191651 | Washer |
| 3010 | 503193158 | Black, LH Spring Square This part replaces 503192136. |
| 3010 | 503193159 | Black, RH Spring Square This part replaces 503192137. |
| 3070a | 503193548 | Ball Bearing |
| 3070b | 415129780 | Retaining Ring |
| 3120 | 503191215 | Upper Shaft |
| 3130 | 503191262 | Bushing |
| 3140 | 503168800 | Retaining Ring |
| 3150 | 206260844 | Socket Set Screw M6 X 8 |
| 3170 | 503192496 | Washer |
| 3180 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 3190 | 503189156 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503191765 | Link Rod |
| 4030 | 503190643 | Axle Bar (Long) |
| 4060 | 503192494 | Washer |
| 4070 | 503193372 | Screw M8 X 90 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503190643 | Axle Bar (Long) |
| 4100 | 503192494 | Washer |
| 4120 | 503193372 | Screw M8 X 90 |
| 4130 | 233281466 | Elastic Flange Nut M8 |
| 5000a | 503192991 | Center Shock |
| 5000b | 505073625 | Adjustment Cam |
| 5000c | 503191343 | Black, Spring |
| 5000e | 503191872 | Spring Guide |
| 5000f | 503194270 | Spring Stopper |
| 5000g | 503189117 | Urethane Bushing |
| 5000h | 503189282 | Bushing |
| 5000j | 503189271 | Bushing |
| 5000k | 503192279 | Black, Spring |
| 5000m | 503191281 | Spring Spacer |
| 5010 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5020 | 233601466 | Elastic Locking Nut M10 |
| 5500 | 503193192 | Rear Shock HPG SEAL |
| 5570 | 414936000 | Bushing |
| 5590 | 207684044 | Hex. Flange Screw M8 X 40 |
