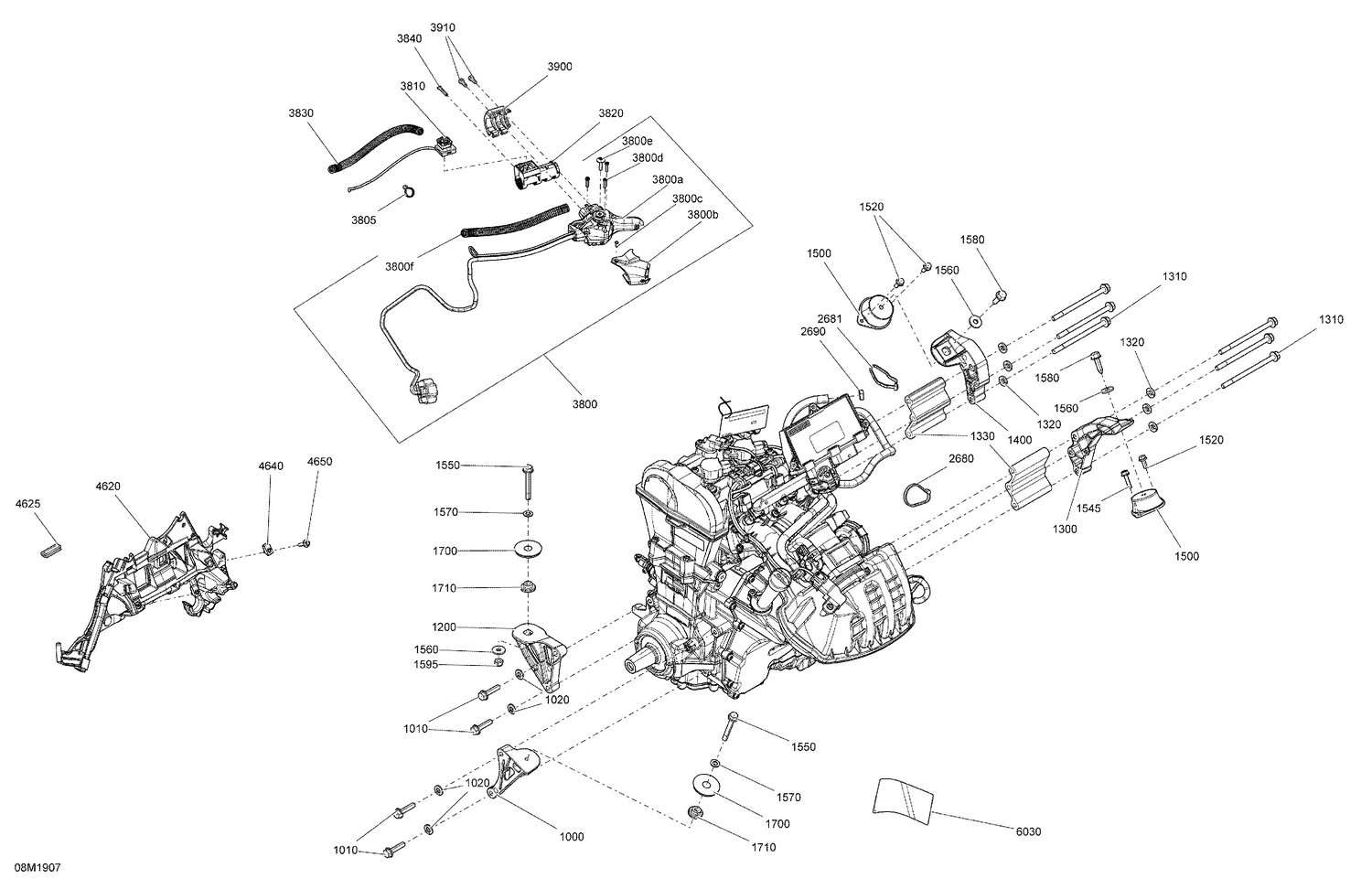

01- Engine - 600 ACE
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 512061139 | Rear Support PTO |
| 1020 | 250200146 | Conical Spring Washer M8 |
| 1200 | 512061140 | Front Support PTO |
| 1220 | 250200146 | Conical Spring Washer M8 |
| 1300 | 512061142 | Rear Support MAG |
| 1310 | 230582544 | Hex. Flange Screw M8 X 125, Scotch Grip |
| 1320 | 250200157 | Conical Spring Washer M8 |
| 1330 | 512060505 | Shim |
| 1400 | 512061141 | Front Support MAG |
| 1410 | 230582544 | Hex. Flange Screw M8 X 125, Scotch Grip |
| 1420 | 250200157 | Conical Spring Washer M8 |
| 1500 | 512060729 | Rubber Mount |
| 1520 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1540 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1545 | 207562534 | Hex. Flange Screw M6 X 25, Scotch Grip |
| 1550 | 207586044 | Hex. Flange Screw M8 X 60, Scotch Grip |
| 1560 | 503183200 | Yellow, Washer |
| 1570 | 250200008 | Flat Washer With Teflon 8 mm |
| 1580 | 250000257 | Cone Screw, M8 X 30 |
| 1595 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1700 | 512061203 | Stopper |
| 1710 | 512060285 | Spacer |
| 2680 | 414115200 | Tie-Rap 180 mm |
| 2681 | 293750008 | Tie Wrap 368 mm |
| 2690 | 293650025 | Oetiker Gear Clamp |
| 3800a | 415130047 | Handle Ass'y kit |
| 3800b | 512060862 | Cap |
| 3800c | 250000623 | Torx Screw M2.9 x 9.5 |
| 3800d | 250000671 | Torx Screw |
| 3800e | 250000528 | Torx Screw M5 X 20 |
| 3800f | 515177716 | Protector Tube |
| 3805 | 293750002 | Tie Wrap 142 mm |
| 3810 | 515177362 | Emergency Stop Switch |
| 3820 | 512061453 | Switch Support This part replaces 512060844. |
| 3830 | 515177716 | Protector Tube |
| 3840 | 250000263 | Torx Screw #8-18 |
| 3900 | 512060987 | Front Housing |
| 3910 | 250000632 | Torx Screw M5 X 14 |
| 4620 | 512060994 | Module Support |
| 4625 | 219704354 | Trim 1000Mm Long |
| 4630 | 293750008 | Tie Wrap 368 mm |
| 4640 | 250000958 | Panel Nut M5 X 0.8 |
| 4650 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
