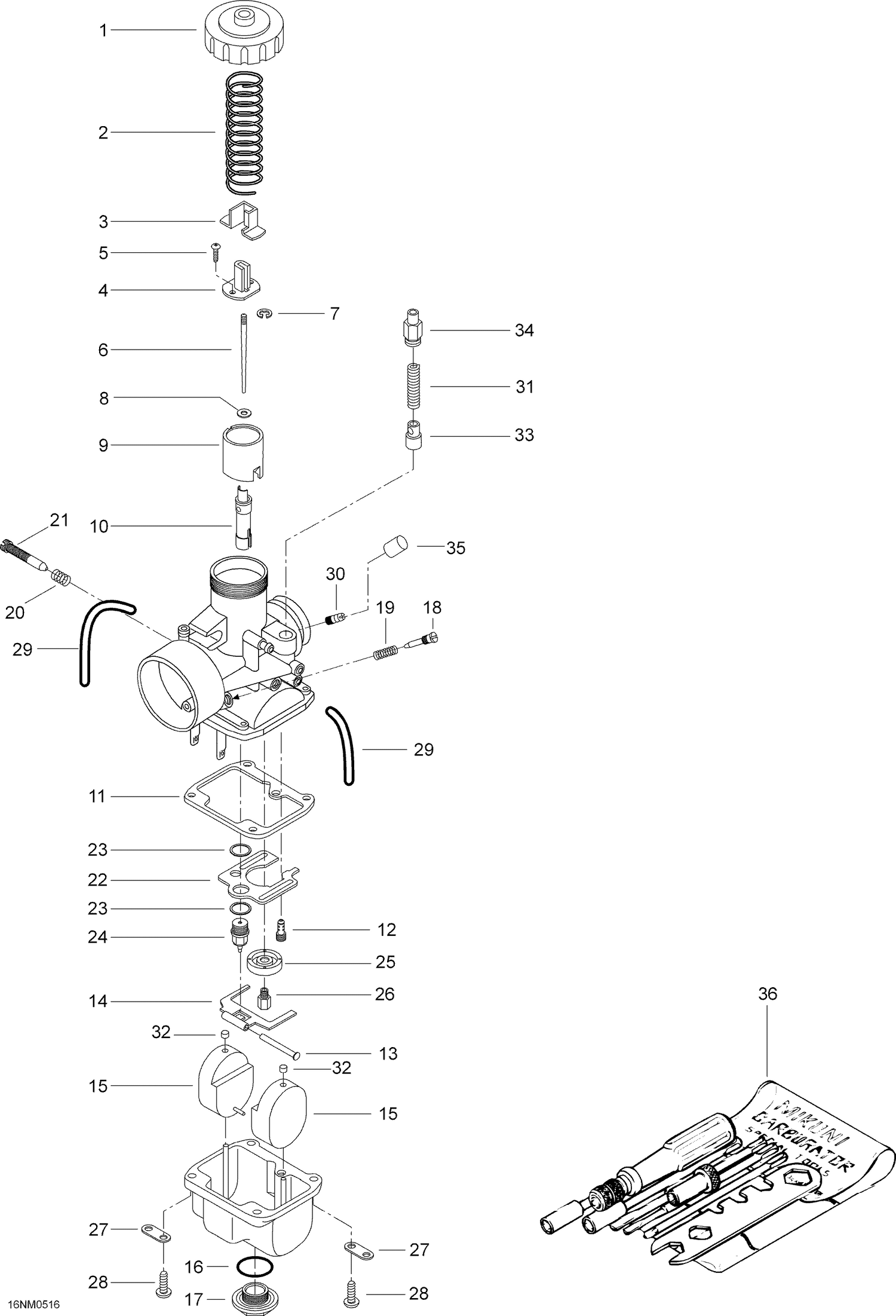

02- Carburetor, 400, 400E
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 404103700 | Kansi |
| 2 | 404154800 | Throttle valve spring |
| 3 | 404122100 | Fitting connector |
| 4 | 404161987 | Connector |
| 5 | 404121300 | Ruuvi + jousialuslevy |
| 7 | 404152400 | Lukkoprikka |
| 8 | 404117000 | Plastic ring washer |
| 9 | 404128600 | PISTON VALVE 2.0 - Call your local BRP dealership |
| 10 | 404110800 | NEEDLE JET 159-Q-2 - Call your local BRP dealership |
| 11 | 404104200 | Gasket pan |
| 12 | 404109100 | PILOT JET PJ40 - Call your local BRP dealership |
| 13 | 404103300 | Uimurivivun tappi |
| 14 | 404107600 | Uimurin vipu |
| 15 | 404107100 | FLOAT - Call your local BRP dealership |
| 16 | 404107300 | Tiiviste rengas |
| 17 | 404107400 | Drain plug screw |
| 20 | 404101700 | Throttle stop screw spring |
| 22 | 404109600 | BAFFLE - Call your local BRP dealership |
| 23 | 404101600 | Tiivisterengas |
| 25 | 404110900 | BAFFLE RING - Call your local BRP dealership |
| 27 | 404103000 | PLATE - Call your local BRP dealership |
| 28 | 404102000 | Screw With Lock Washer |
| 29 | 404161851 | AIR VENT TUBE - Call your local BRP dealership |
| 30 | 404153400 | Nipple for fuelline |
| 31 | 404127400 | SPRING - Call your local BRP dealership |
| 32 | 404105800 | Tulppa uimurille |
| 33 | 404161986 | Rikastinmäntä |
| 34 | 404161100 | GUIDE HOLDER - Call your local BRP dealership |
| 35 | XXX | Not Available As Spare Parts |
