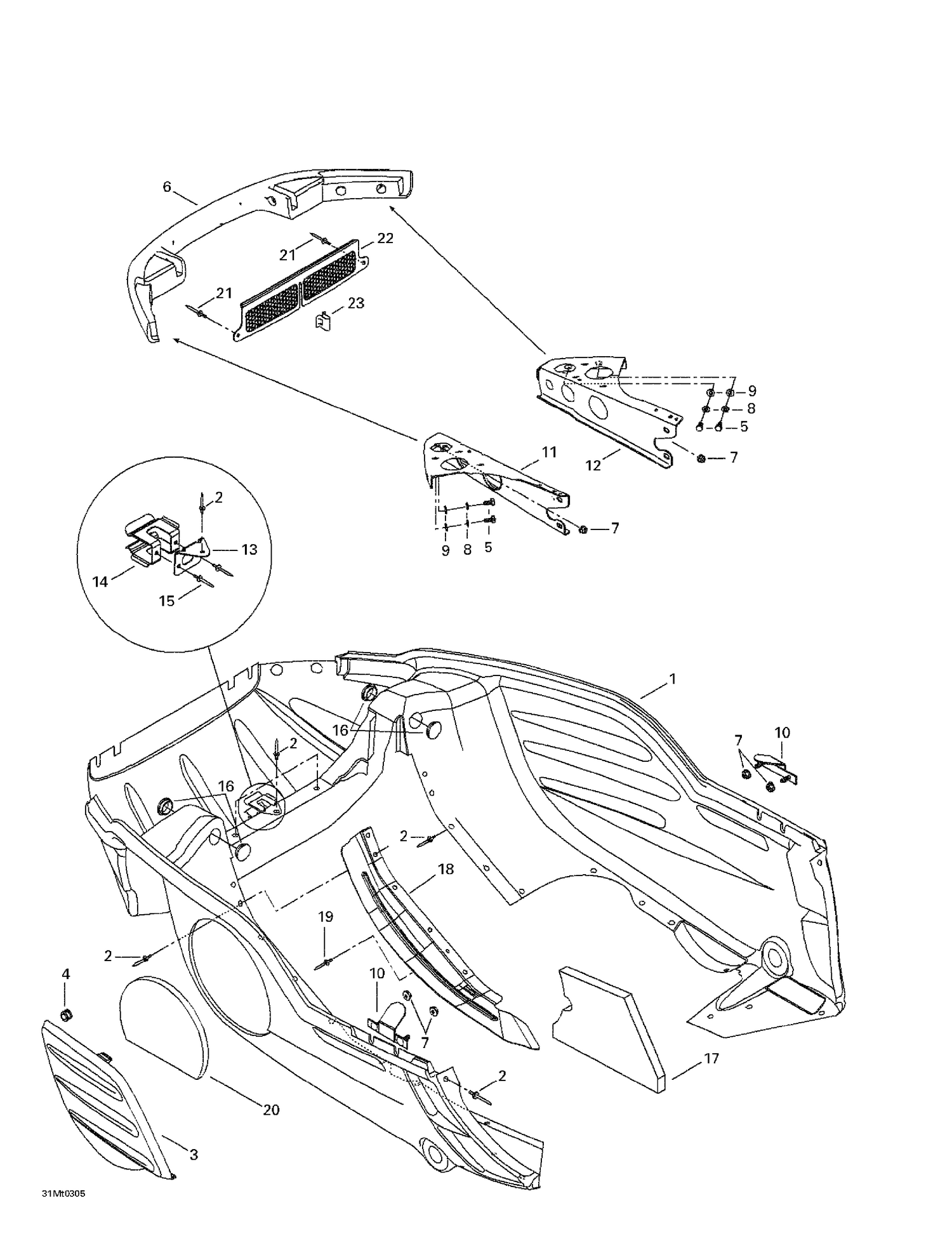

| Ref | Part Number | Description |
|---|
| 2 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 4 |
414036300 |
Grommet |
| 5 |
207161444 |
Hex. Screw M6 X 14 |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 8 |
234161471 |
Lock Washer M6, Black |
| 9 |
224061121 |
Flat Washer |
| 10 |
502006645 |
LH Bracket |
| 11 |
502006597 |
LH SUPPORT - Call your local BRP dealership |
| 12 |
502006602 |
RH Support |
| 13 |
502006599 |
Belt Support |
| 14 |
517281905 |
Bracket |
| 15 |
390402400 |
Pop Rivet 3/16" |
| 16 |
414916600 |
Black, Nylon Cap |
| 17 |
502006558 |
Bottom Foam |
| 18 |
502006593 |
Bottom Pan Protector |
| 19 |
390402200 |
Pop Rivet 3/16" |
| 20 |
502006559 |
Bottom Pan Door Foam |
| 21 |
293150103 |
Pop Rivet 3/16" |
| 22 |
502006697 |
Center Grille |
| 502006635 |
Coque, |
Bleu, B-226 502006635 |
| 502006635 |
Labrador |
Blue, Bottom Pan 502006635 |
| 502006641 |
Labrador |
Blue, Bottom Pan Door 502006641 |
| 502006641 |
Porte |
De Coque, Bleu, B-226 502006641 |
| 502006642 |
Labrador |
Blue, Bumper 502006642 |
| 502006642 |
Pare-Choc, |
Bleu, B-226 502006642 |
