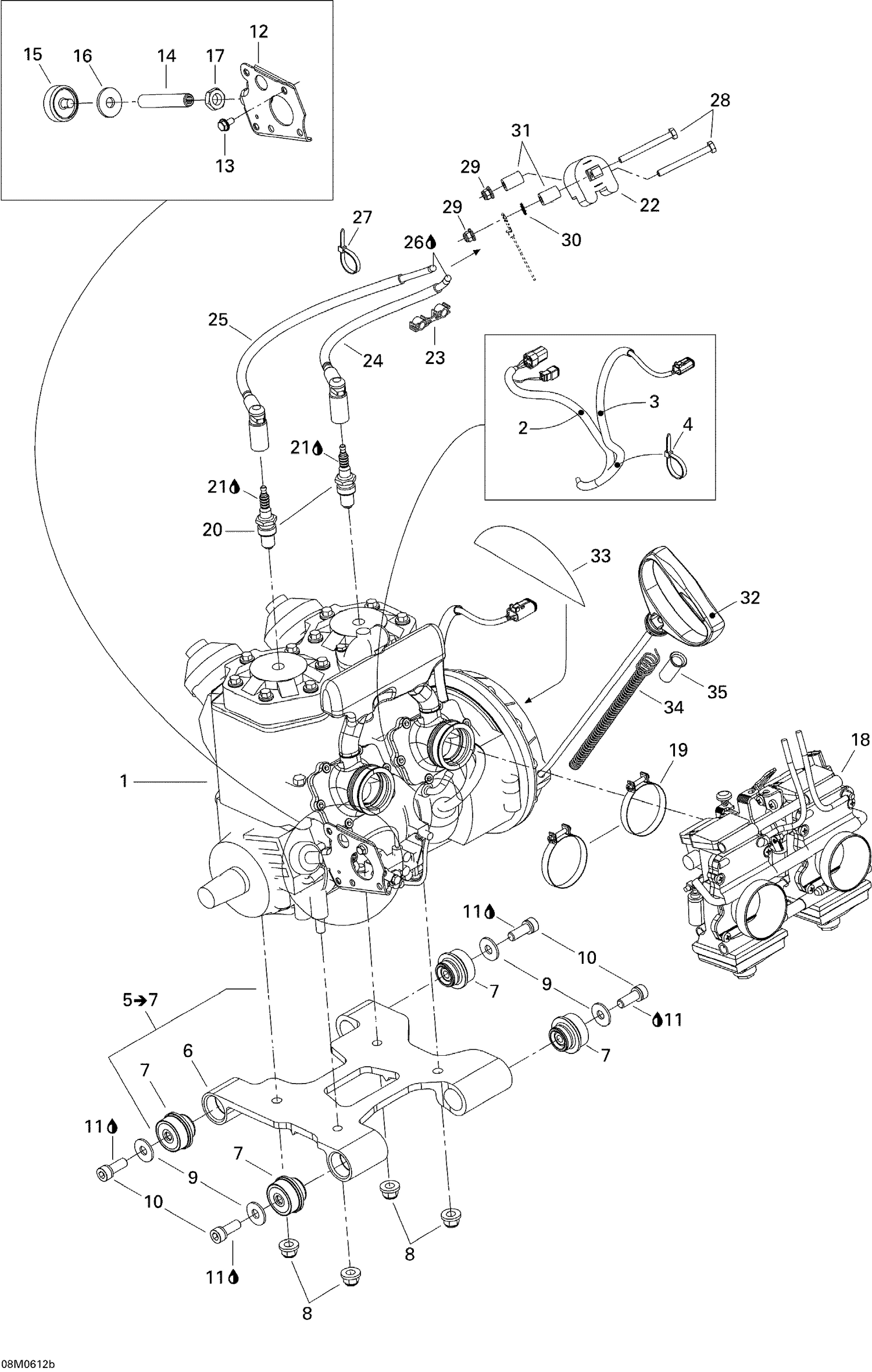

01- Engine 1
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 400702631 | Engine 793 H.o. |
| 2 | 219704400 | Was 409901800 Tubing (13 mm) |
| 3 | 219704407 | Tubing 10 MM 1000MM Long |
| 4 | 293750002 | Tie Wrap 142 mm |
| 6 | 512060051 | ENGINE SUPPORT - Call your local BRP dealership |
| 7 | 512059691 | Rubber Mount |
| 8 | 233201414 | Hex. Flange Elastic Nut M10 |
| 9 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 10 | 205002544 | Socket Head Screw M10 X 25 |
| 11 | 413703400 | Sealant LOCTITE 222MS - Call your local BRP dealership |
| 12 | 512059840 | PLATE - Call your local BRP dealership |
| 13 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 14 | 250500007 | STOPPER SCREW - Call your local BRP dealership |
| 15 | 512059610 | STOPPER - Call your local BRP dealership |
| 16 | 512059057 | WASHER - Call your local BRP dealership |
| 17 | 232170411 | Hex. Jam Nut M14 |
| 18 | 403138790 | Carburetor Kit Tm40-b346 |
| 19 | 512059835 | Gemi Clamp |
| 20 | 415128524 | Spark Plug NGK BR9ECS |
| 21 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 22 | 512059968 | Ignition Coil |
| 23 | 410914600 | Plastic Clip, Spark Plug Wire |
| 24 | 512059695 | CABLE ASSY, 300 MM - Call your local BRP dealership |
| 25 | 512059696 | Cable Ass’y, 375 mm |
| 26 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 27 | 414115200 | Tie-Rap 180 mm |
| 28 | 207066044 | Hex. Screw M6 X 60 |
| 29 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 30 | 394001900 | EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 31 | 517203200 | Spacer |
| 32 | 572084400 | Starter Grip |
| 33 | 512059893 | REFLECTIVE SHEET - Call your local BRP dealership |
| 34 | 512059535 | ROPE GUIDE - Call your local BRP dealership |
