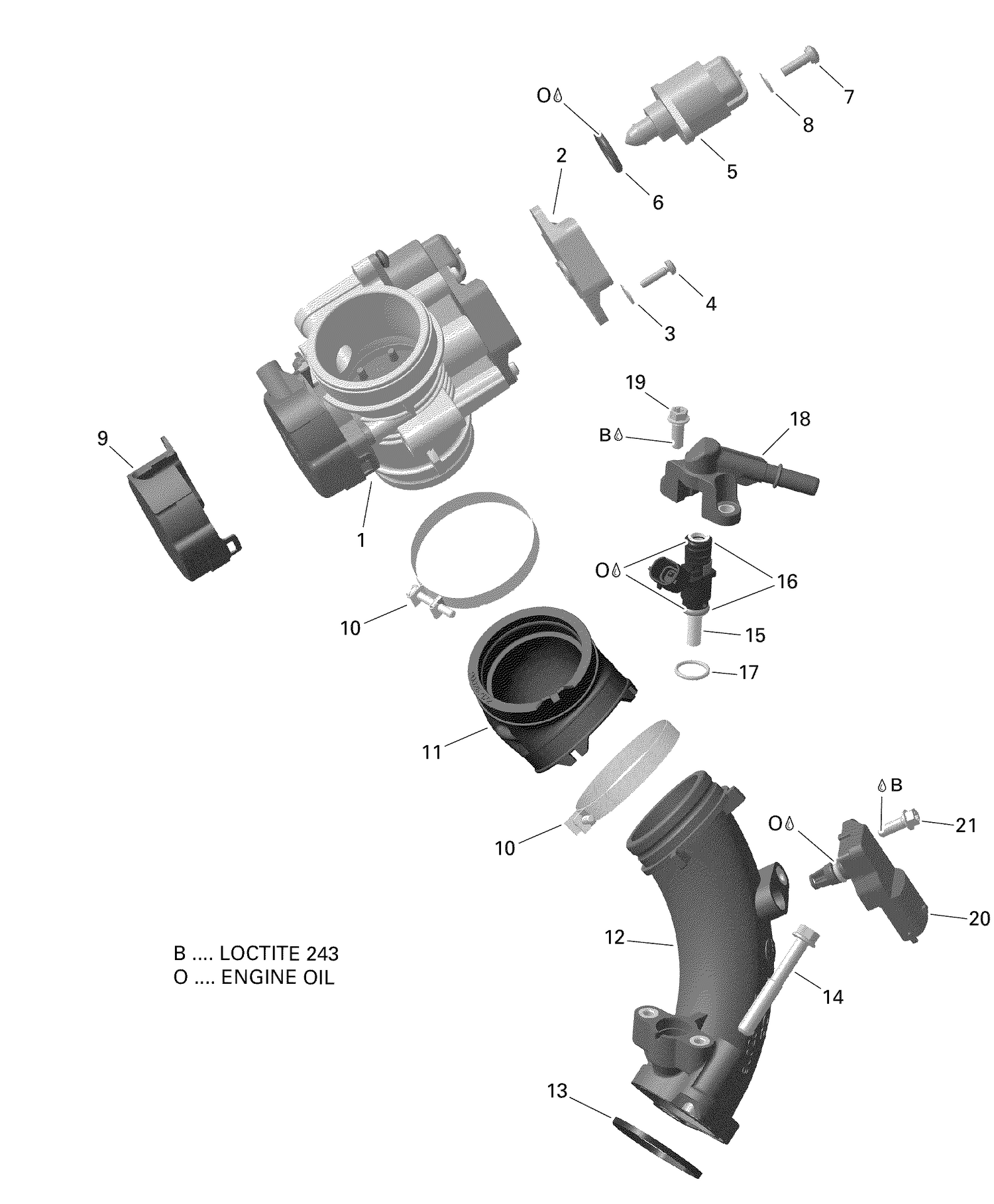

02- Air Intake Manifold And Throttle Body Except T3
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 234042600 | Flat Washer 4 mm, Stainless |
| 4 | 208641660 | Phillips Screw M4 X 16 |
| 7 | 420845710 | Snap Ring |
| 8 | 420440911 | Binding Head Screw M5 X 16 |
| 14 | 420641213 | Torx Flange Screw M8 X 55 |
| 16 | 420631220 | O-Ring |
| 17 | 420631296 | O-Ring This part replaces 420631295. |
| 18 | 420874905 | Fuel Rail |
| 19 | 420440164 | Torx Flange Screw M6 X 16 |
| 20 | 707000995 | Pressure And Temperature Sensor This part replaces 420874650. |
