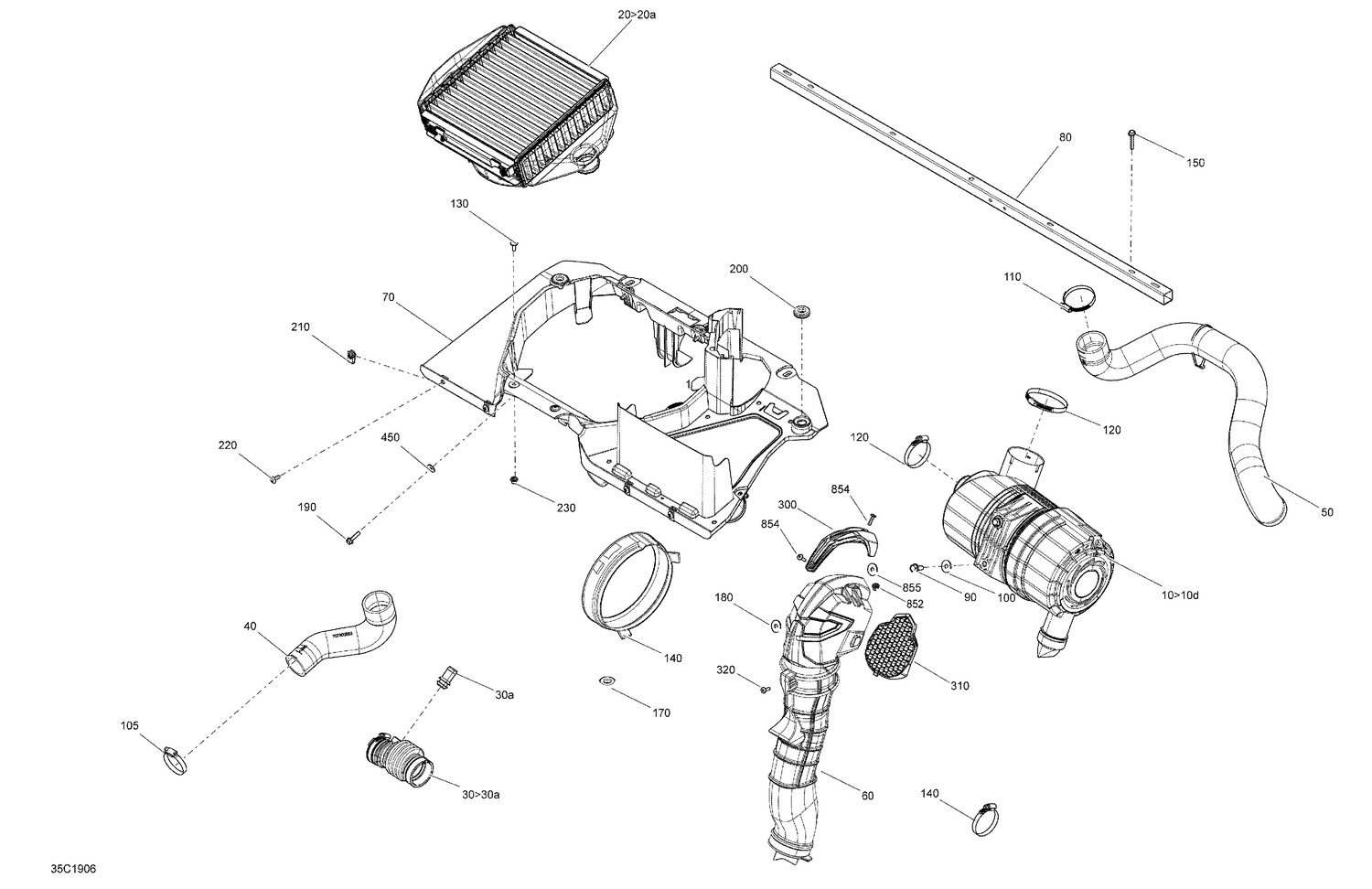

02- Air Intake - Turbo - XMR
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 707800844 | Intake Silencer Gasket |
| 10b | 715900422 | Premium Air Filter |
| 10c | 519000216 | Cap |
| 10d | 414554800 | Spring Clamp |
| 20 | 707800771 | Protective Grille |
| 30a | 273000234 | Breather Valve |
| 50 | 707800746 | Air Intake |
| 70 | 707800691 | Radiator Support |
| 80 | 707801133 | Square Tube This part replaces 707800785. |
| 90 | 207682044 | Hex. Flange Screw M8 X 20 |
| 100 | 234082410 | Flat Washer 8 mm |
| 105 | 293650270 | King Seal Clamp |
| 111 | 293650271 | King Seal Clamp |
| 120 | 293650270 | King Seal Clamp |
| 125 | 293650096 | Norma Clamp |
| 130 | 250000722 | Torx Screw M6 X 20 |
| 150 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 180 | 234062670 | Stainless Steel Flat Washer |
| 190 | 207562544 | Hex. Flange Screw M6 X 25 |
| 200 | 517303756 | Grommet |
| 210 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 215 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 220 | 250000722 | Torx Screw M6 X 20 |
| 230 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 450 | 234062410 | Flat Washer 6 mm |
