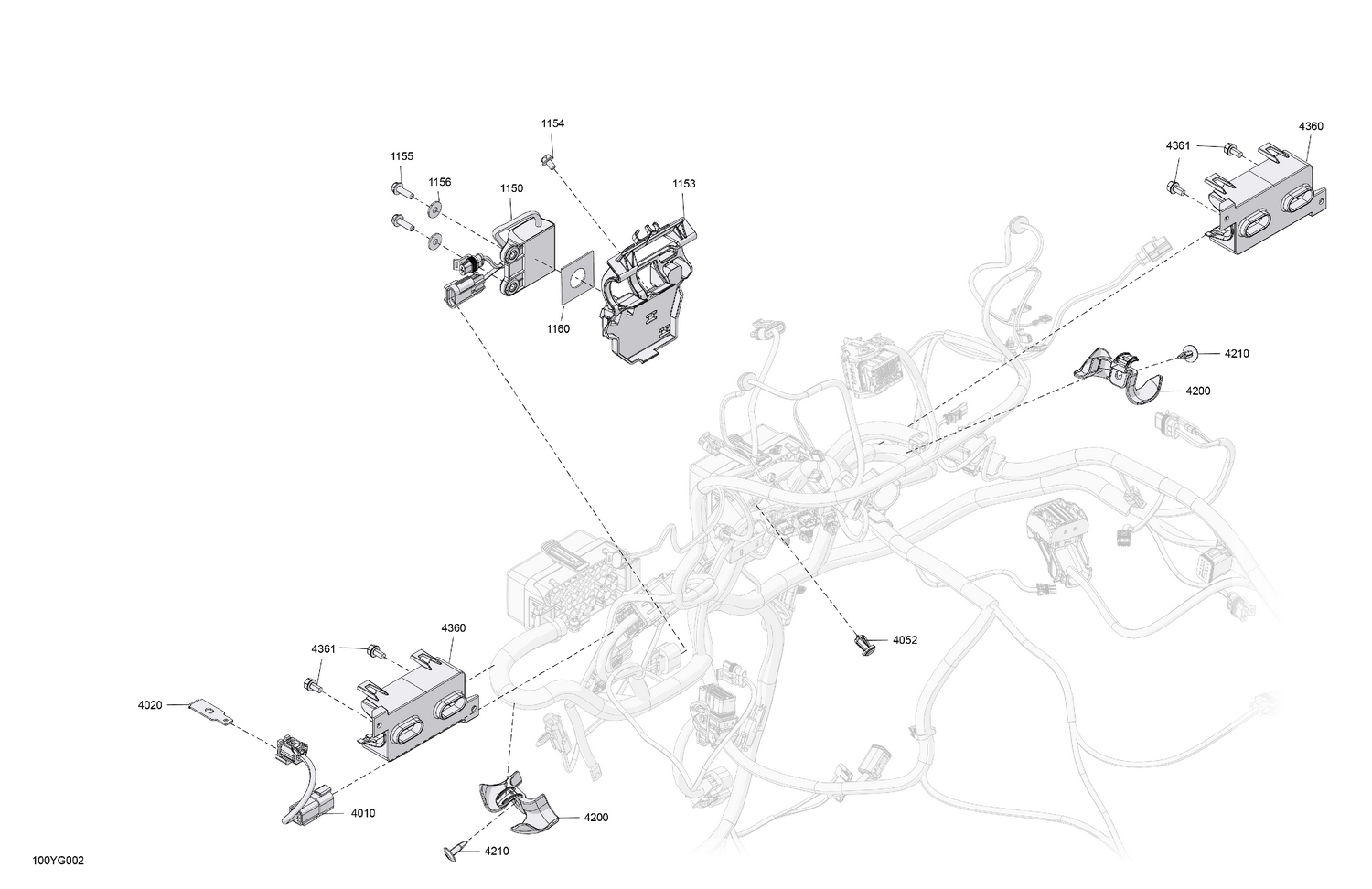

08- Electric - Sub Console Lower Section
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1150 | 710004916 | Dess Module |
| 1153 | 710004308 | Wire Support |
| 1154 | 210261050 | Hex. Forming Screw M6 X 10 |
| 1155 | 210262050 | Hexagonal Head Screw |
| 1156 | 234062670 | Stainless Steel Flat Washer |
| 1160 | 293830264 | Rubber Bumper |
| 4010 | 710006986 | Diagnostic Harness |
| 4020 | 710007232 | Connector Support |
| 4052 | 293150230 | Tuflok Plastic Rivet |
| 4200 | 710004931 | Harness Holder |
| 4210 | 414745900 | Tuflock Phillips Plastic Screw |
| 4360 | 710004472 | Fuse Holder Support |
