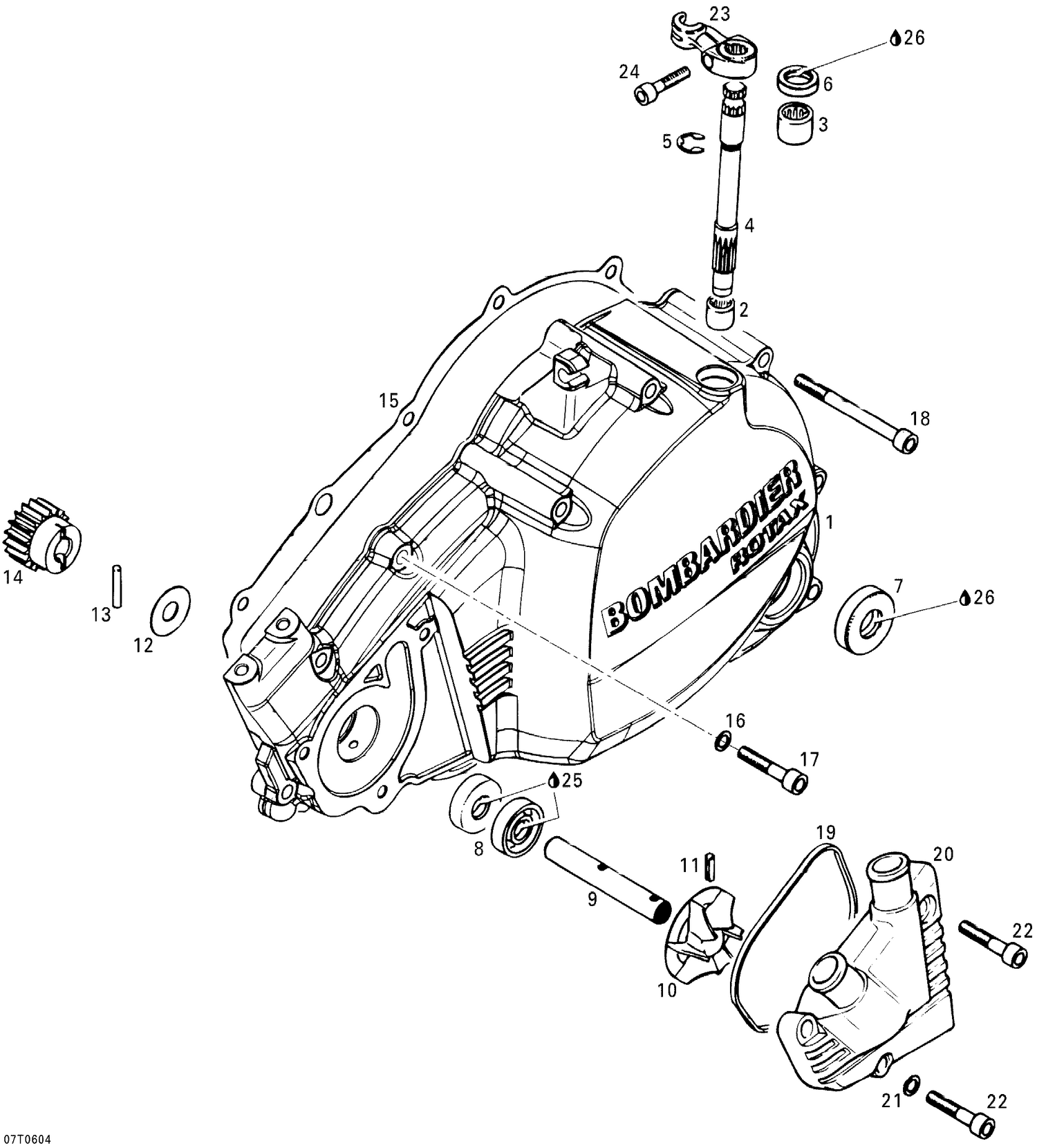

05- Clutch Housing And Water Pump
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420610120 | CLUTCH COVER - Call your local BRP dealership |
| 2 | 420232275 | Needle Bushing |
| 3 | 420232482 | Needle Bushing This part replaces 420232480. |
| 4 | 420237023 | Clutch Shaft Release, 11 Dents |
| 5 | 420845390 | RETAINING RING - Call your local BRP dealership |
| 6 | 420250992 | OIL SEAL - Call your local BRP dealership |
| 7 | 420250450 | Oil Seal |
| 8 | 420230195 | Oil Seal |
| 9 | 420237041 | SHAFT-PUMP WATER - Call your local BRP dealership This part replaces 420237040. |
| 10 | 420222272 | Water Pump Impeller |
| 11 | 420229280 | Spring Pin |
| 12 | 420827590 | Thrust Washer |
| 13 | 420232420 | Needle Pin |
| 14 | 420234620 | Gear, 18 Tooth |
| 15 | 420230581 | Gasket |
| 16 | 420230415 | Seal Washer |
| 17 | 205063044 | Socket Head Screw M6 X 30 |
| 18 | 420240532 | SOCKET HEAD SCREW M6 X 75 - Call your local BRP dealership |
| 19 | 420850430 | O-RING - Call your local BRP dealership |
| 20 | 420211270 | WATER PUMP COVER - Call your local BRP dealership |
| 21 | 420230415 | Seal Washer |
| 22 | 205062544 | Socket Head Screw M6 X 25 |
| 23 | 420248305 | Lever-Release Clutch |
| 24 | 205062544 | Socket Head Screw M6 X 25 |
| 25 | 413707000 | Dow Corning 111, 150 g |
