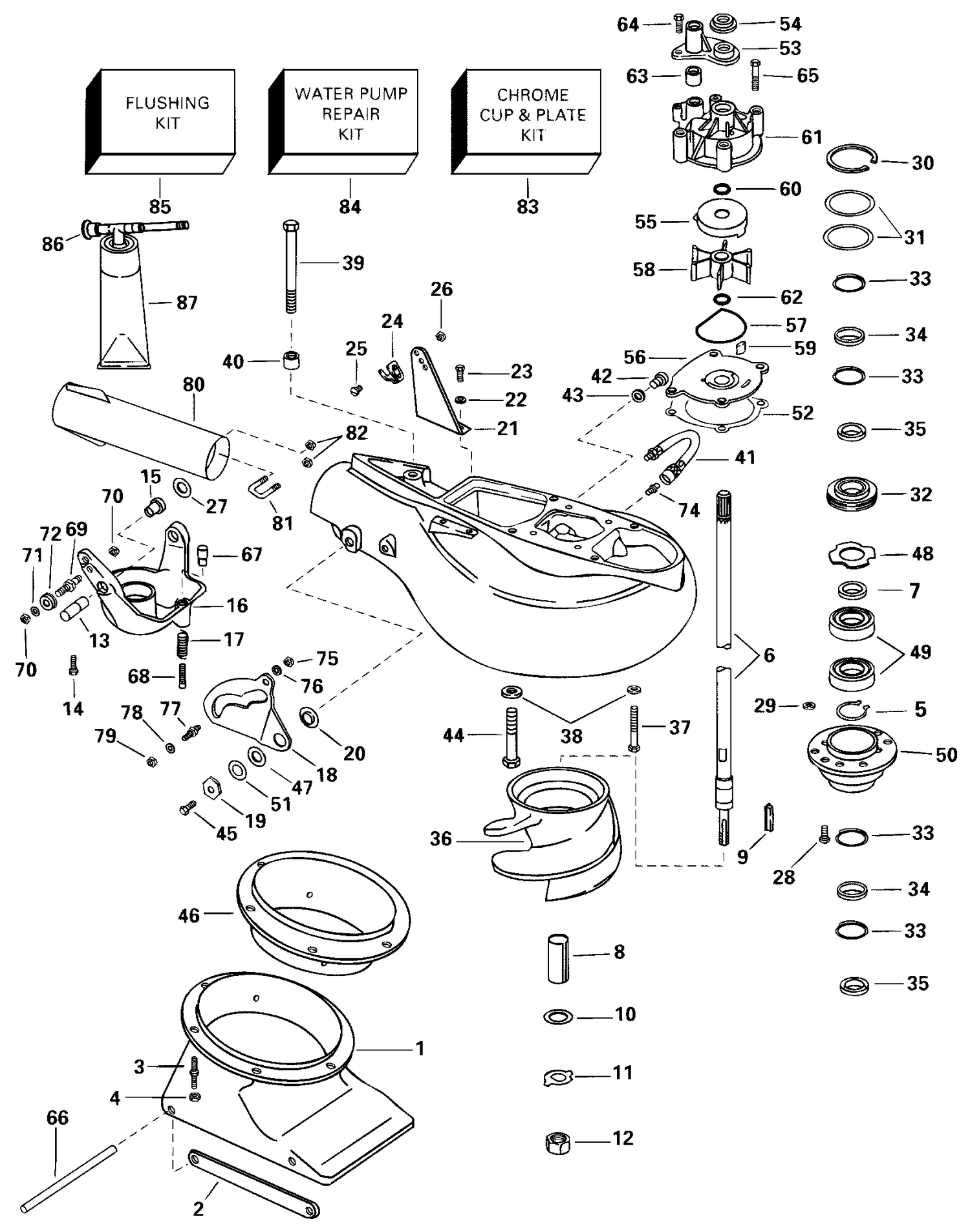

JET DRIVE UNIT
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5000863 | INTAKE ASSY. |
| 5 | 0336887 | RETAINING RING |
| 6 | 0435106 | DRIVESHAFT & SLEEVE ASSY. |
| 7 | 0336882 | THRUST RING |
| 8 | 0336913 | SLEEVE |
| 9 | 0336906 | KEY |
| 10 | 0336911 | SHIM |
| 11 | 0336895 | KEEPER, Nut |
| 12 | 0336912 | NUT, Driveshaft |
| 13 | 0336894 | PIN, Gate |
| 14 | 0336871 | BOLT, Bearing housing |
| 15 | 0336890 | BUSHING, Pin |
| 16 | 0336893 | GATE |
| 17 | 0337008 | SPRING, Bumper, gate |
| 18 | 0434701 | CAM ASSY., Shift |
| 19 | 0336999 | ECCENTRIC, Cam |
| 20 | 0337001 | BUSHING, Cam |
| 21 | 0336881 | BRACKET CABLE |
| 22 | 0336868 | WASHER, Nut |
| 23 | 0342356 | BOLT, Liner to intake |
| 25 | 0336874 | SCREW, Clip to bracket |
| 27 | 0336891 | SPRING, GATE |
| 28 | 0346105 | BOLT, Bearing housing |
| 29 | 0336877 | O-RING, Bearing housing |
| 30 | 0336889 | RETAINING RING |
| 31 | 0336902 | O-RING, Bearing housing |
| 32 | 0336914 | SEAL ASSY. |
| 33 | 0336876 | SPIROLOX |
| 34 | 0336878 | SEAL, Inner |
| 35 | 0336879 | SEAL, Outer |
| 36 | 5005364 | Impeller This part replaces 5000864. |
| 37 | 0336896 | SCREW, Exh. hsg |
| 38 | 0336864 | LOCK WASHER |
| 39 | 0336898 | SCREW, Exh. hsg |
| 40 | 0336909 | SPACER, Screw, exh. hsg |
| 41 | 0434698 | HOSE ASSY., Lube |
| 42 | 0336861 | SCREW, Flush |
| 43 | 0336863 | WASHER, Screw |
| 44 | 0336897 | SCREW, Exh. hsg. long |
| 45 | 0342357 | SCREW, Cam to housing |
| 46 | 0346103 | LINER |
| 47 | 0337002 | WASHER |
| 48 | 0336908 | WASHER, Bearing |
| 49 | 0336905 | BEARING |
| 50 | 0346104 | BEARING CARRIER |
| 51 | 0337003 | SHIM, Cam |
| 66 | 0336880 | ROD, Grill |
| 67 | 0337007 | BUMPER, Gate |
| 68 | 0336998 | SCREW, Bumper |
| 69 | 0337006 | NUT, Shaft, gate |
| 70 | 0342607 | NUT, Pivot |
| 71 | 0336868 | WASHER, Nut |
| 72 | 0437820 | ROLLER & BUSHING |
| 74 | 0336872 | GREASE FITTING |
| 75 | 0337000 | NUT, Pivot, cam |
| 76 | 0336869 | WASHER, Bolt, bearing housing |
| 77 | 0337009 | PIVOT, Cable to cam |
| 78 | 0336868 | WASHER, Nut |
| 79 | 0342607 | NUT, Pivot |
| 80 | 0434702 | TUBE, Exhaust |
| 81 | 0336892 | CLIP, Exhaust tube |
| 83 | 0435526 | CHROME CUP & PLATE KIT |
| 84 | 5001594 | WATER PUMP REPAIR KIT |
| 85 | 0435299 | FLUSHING KIT |
| 86 | 0434697 | GREASE GUN |
