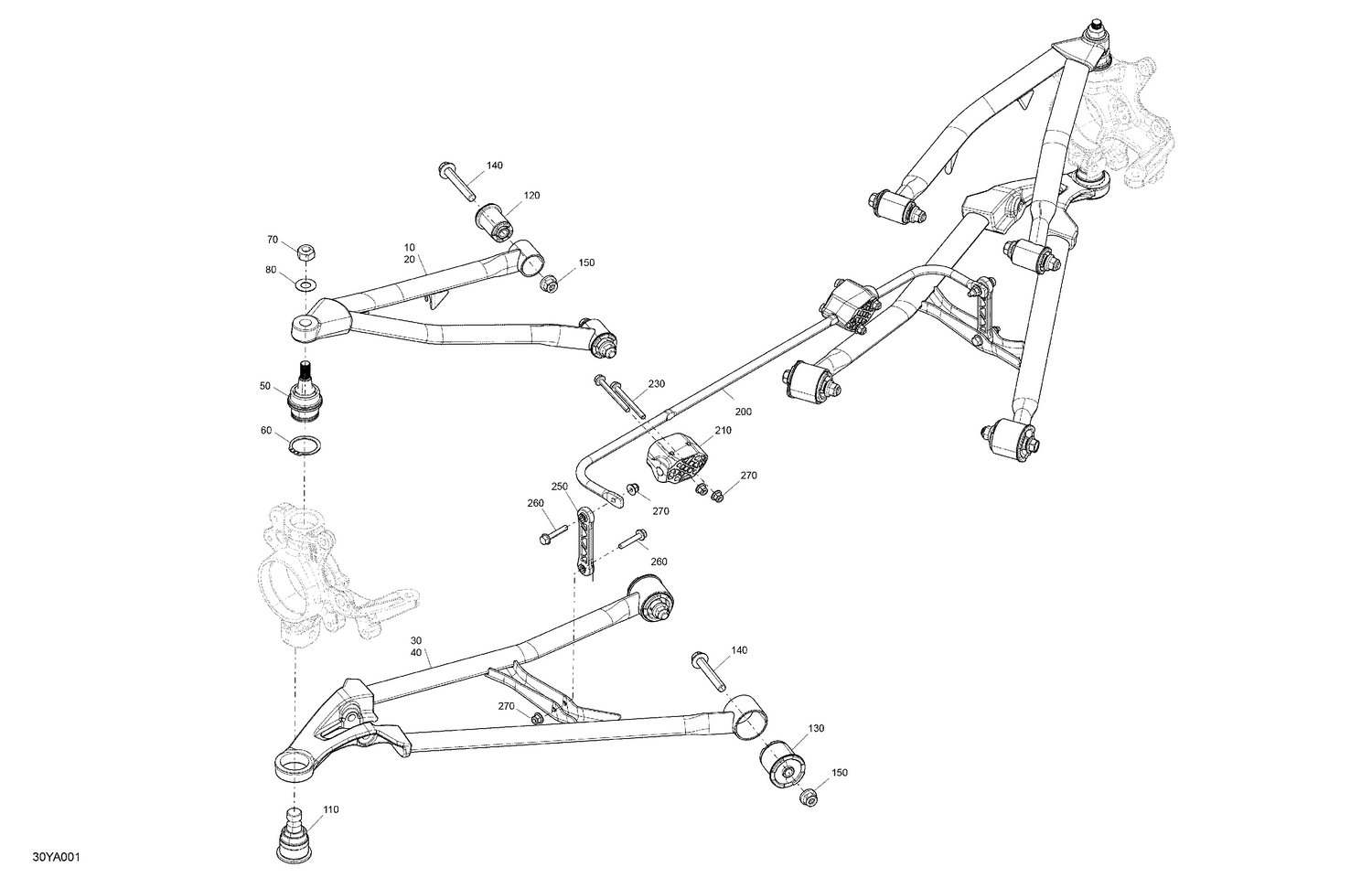

05- Suspension - Front
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706202644 | LH Upper Arm |
| 20 | 706202645 | RH Upper Arm |
| 30 | 706204700 | LH Lower Suspension Arm This part replaces 706202648. |
| 40 | 706204701 | RH Lower Suspension Arm This part replaces 706202649. |
| 50 | 706203147 | Ball Joint |
| 60 | 293370035 | Circlip |
| 70 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 80 | 706200281 | Hardened Washer This part replaces 250200086. |
| 110 | 706202508 | Ball Joint |
| 120 | 706202549 | Upper Suspension Arm Bushing |
| 130 | 706203143 | Lower Suspension Arm Bushing |
| 140 | 207606556 | Hex. Flange Screw M10 X 65 |
| 150 | 233201466 | Flange Elastic Nut M10 |
| 200 | 706202710 | Sway Bar |
| 210 | 706204465 | Bushing |
| 230 | 207666044 | Hex. Flange Screw M6 X 60 |
| 250 | 505072204 | Sway Bar Double Joint Link |
| 260 | 207663554 | Hex. Flange Screw M6 X 35 |
