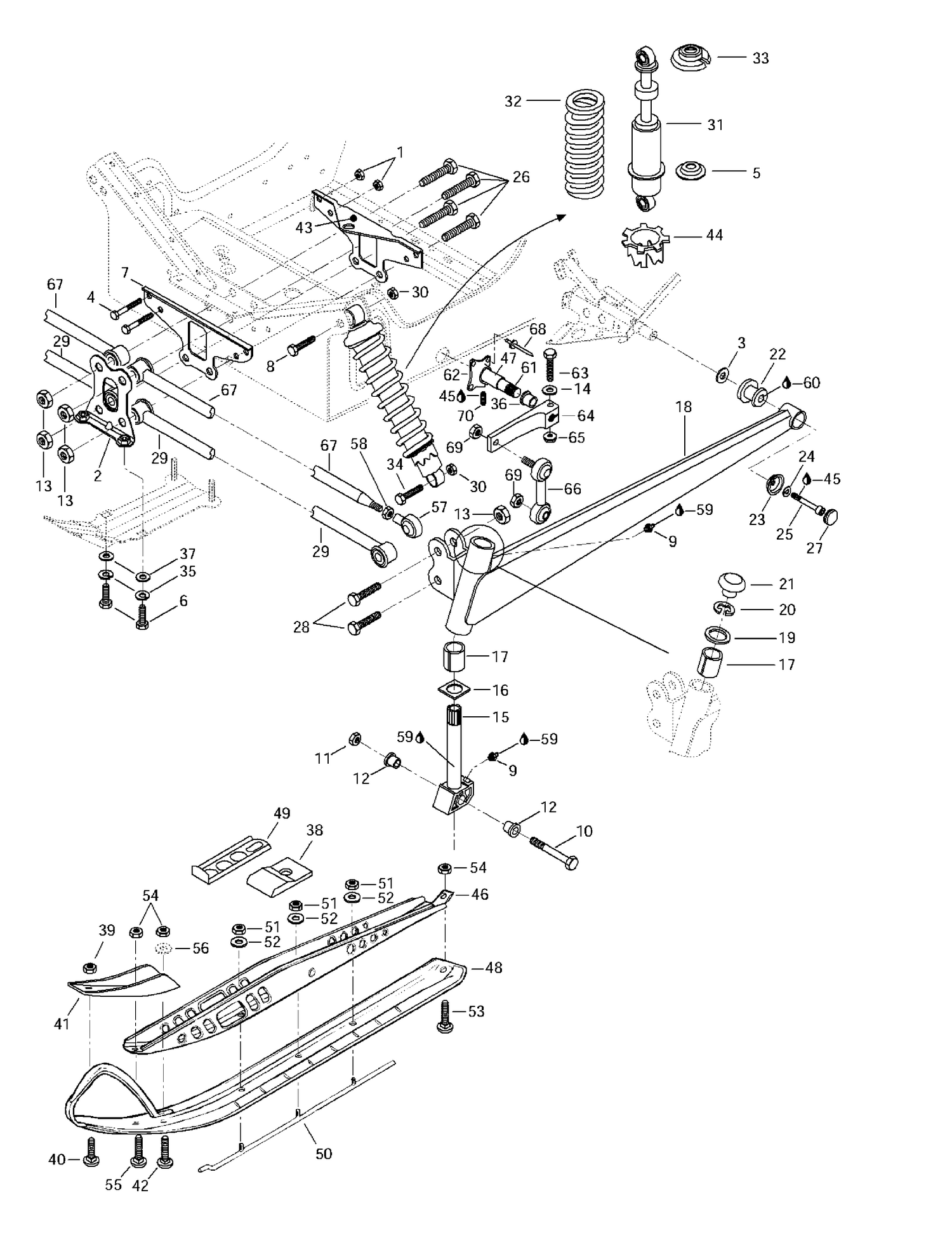

| Ref | Part Number | Description |
|---|
| 1 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 2 |
506122900 |
Link Plate |
| 3 |
503146700 |
WASHER - Call your local BRP dealership |
| 4 |
207065544 |
Hex. Screw M6 X 55 This part replaces 222065565. |
| 6 |
207182044 |
Hex. Screw M8 X 20 This part replaces 222082065. |
| 7 |
517254800 |
Front Link Plate |
| 8 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership This part replaces 222006065. |
| 9 |
408200700 |
Grease Fitting |
| 10 |
732601176 |
Hex. Screw M12 |
| 11 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 12 |
414530600 |
CUSHION - Call your local BRP dealership |
| 13 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 14 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 15 |
506139200 |
Ski Leg |
| 16 |
506081200 |
Wear Plate |
| 17 |
572069900 |
Cushion |
| 18 |
506136710 |
LH Swing Arm |
| 19 |
506080900 |
Thrust Washer |
| 20 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 21 |
572091300 |
Cap |
| 22 |
570062200 |
DAMPER - Call your local BRP dealership |
| 23 |
705007171 |
Cup This part replaces 506115800. |
| 24 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 25 |
205082544 |
Socket Head Screw M8 X 25 This part replaces 222982565. |
| 26 |
222029065 |
Hex. Screw M12 x 90 |
| 27 |
572045900 |
CAP - Call your local BRP dealership |
| 28 |
222025565 |
Hex. Screw M12 x 55 |
| 29 |
580650800 |
Arm Ass'y |
| 30 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 33 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 34 |
207005544 |
Hex. Screw M10 X 55 This part replaces 222005565. |
| 35 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 36 |
415039500 |
CUSHION - Call your local BRP dealership |
| 37 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 38 |
570046800 |
Ski Stopper |
| 39 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 40 |
207762544 |
Carriage Bolt M6 X 25 This part replaces 222262565. |
| 41 |
505068000 |
Ski Reinforcement |
| 42 |
222284065 |
Carriage Bolt M8 x 40 |
| 43 |
517254900 |
Rear Link Plate |
| 45 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 46 |
505068100 |
Ski Support |
| 47 |
506136200 |
Main Tube |
| 49 |
505067509 |
Stopper |
| 50 |
505067220 |
CARBIDE RUNNER (8) - Call your local BRP dealership |
| 51 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 52 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 53 |
207782544 |
Carriage Bolt, M8 X 25 This part replaces 222282565. |
| 54 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 228781045. |
| 55 |
207783044 |
Carriage Bolt M8 X 30 This part replaces 222283065. |
| 56 |
Not |
Available As Spare Part - Washer |
| 57 |
415042500 |
RH Ball Joint |
| 58 |
232170411 |
Hex. Jam Nut M14 This part replaces 228371042. |
| 59 |
413706100 |
LITHIUM GREASE, 400 GR - Call your local BRP dealership |
| 60 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 61 |
506134300 |
Stabilizator |
| 62 |
506139000 |
Housing |
| 63 |
207084544 |
Hex. Screw M8 X 45 This part replaces 222084565. |
| 64 |
506134402 |
Stabilizer Lever |
| 65 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 228781045. |
| 66 |
415042300 |
Double Ball Joint |
| 67 |
580649900 |
Arm Ass'y |
| 68 |
390404900 |
Rivet pop 1/4" |
| 69 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 506136610 |
Bras |
Oscillant DDR 506136610 |
| 506136610 |
RH |
Swing Arm 506136610 |
