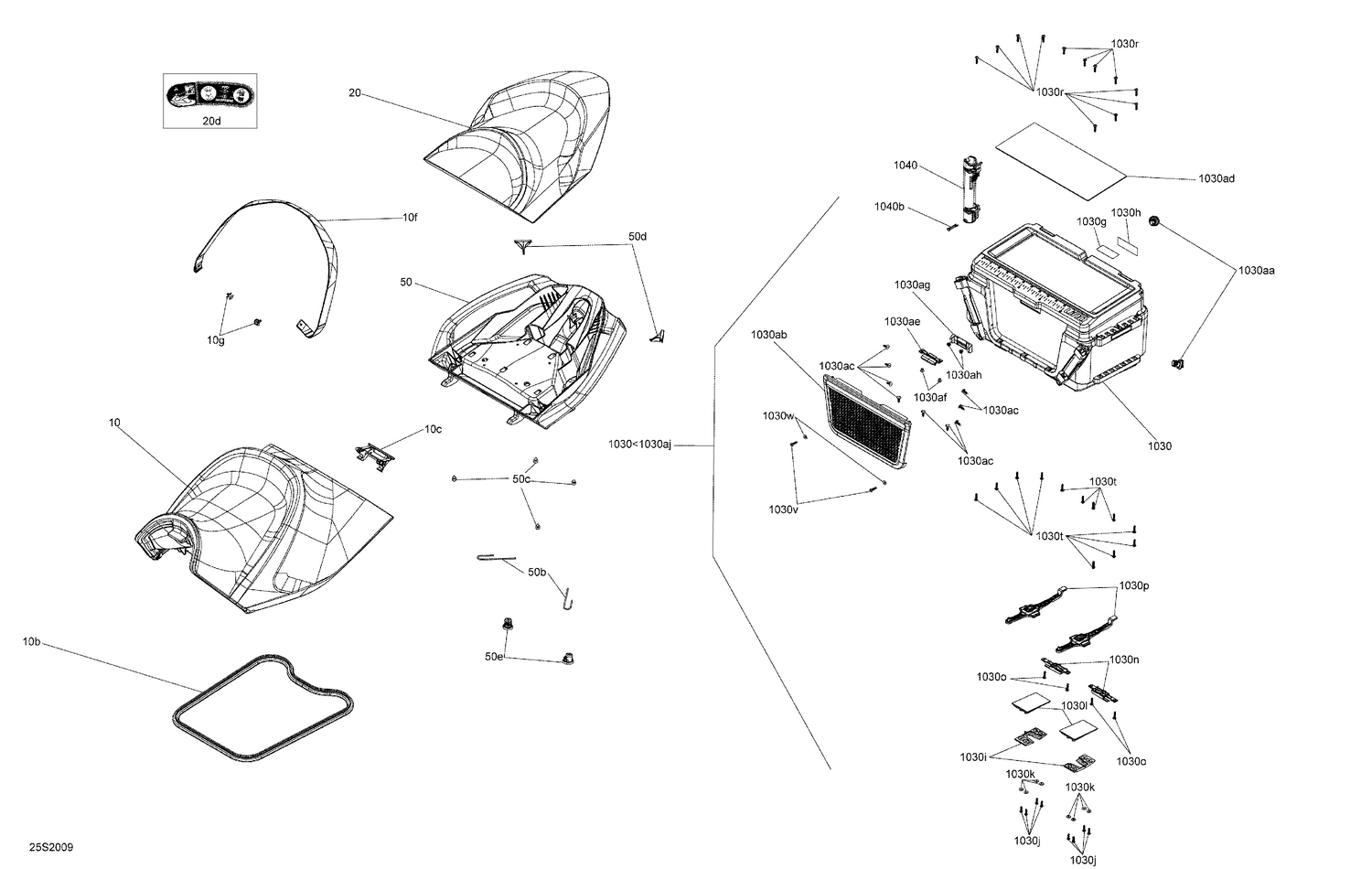

09- Seat - Footrests and Cooler
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 219704366 | Was 293200062 Seal |
| 10c | 269003103 | Seat Latch |
| 10f | 269003383 | Bright Silver, Seat Strap |
| 10g | 293150067 | Rivet |
| 20d | Not | Available As Spare Part - Decal Seat Warning |
| 50b | 269003083 | Spring Latch |
| 50c | 293830005 | Rubber Bumper |
| 50d | 269004355 | Handle Trim This part replaces 269003084. |
| 50e | 269003085 | Stud Receiver |
| 1030aa | 269800833 | Drain Plug Ass'y |
| 1030ab | 269800829 | Net Cargo |
| 1030ac | 293730083 | Black Dart |
| 1030ad | 269800828 | Anti Slip Mat |
| 1030ae | 269800963 | Lid Latch |
| 1030af | 293150186 | Pop Rivet 3/16 |
| 1030ag | 269800964 | Cover Striker |
| 1030ah | 293150186 | Pop Rivet 3/16 |
| 1030g | 219905522 | Warning Decal |
| 1030h | 219905521 | Warning Decal |
| 1030i | 269800824 | Under Cargo Anchorage |
| 1030j | 250000466 | Torx Screw Plastite M6 |
| 1030k | 234062600 | Flat Washer M6, Stainless |
| 1030l | 269800832 | Cooler Reinforcement |
| 1030n | 269800825 | Plate Stop |
| 1030o | 250001007 | Screw Torx M6.81 X 30 |
| 1030p | 269800826 | Lever Latch |
| 1030r | 250001007 | Screw Torx M6.81 X 30 |
| 1030t | 250001007 | Screw Torx M6.81 X 30 |
| 1030v | 250001007 | Screw Torx M6.81 X 30 |
| 1030w | 234062670 | Stainless Steel Flat Washer |
